Motor Commutation Sensor Connector End View

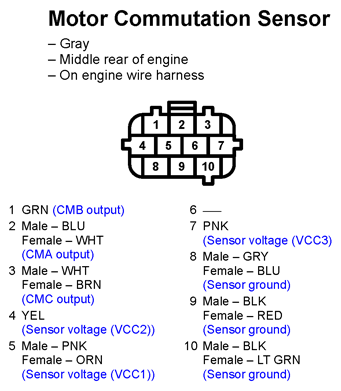

Fig 1: Motor Commutation Sensor Connector End View

G11250550

Courtesy of AMERICAN HONDA MOTOR CO., INC.
