BCM Module Connector End View

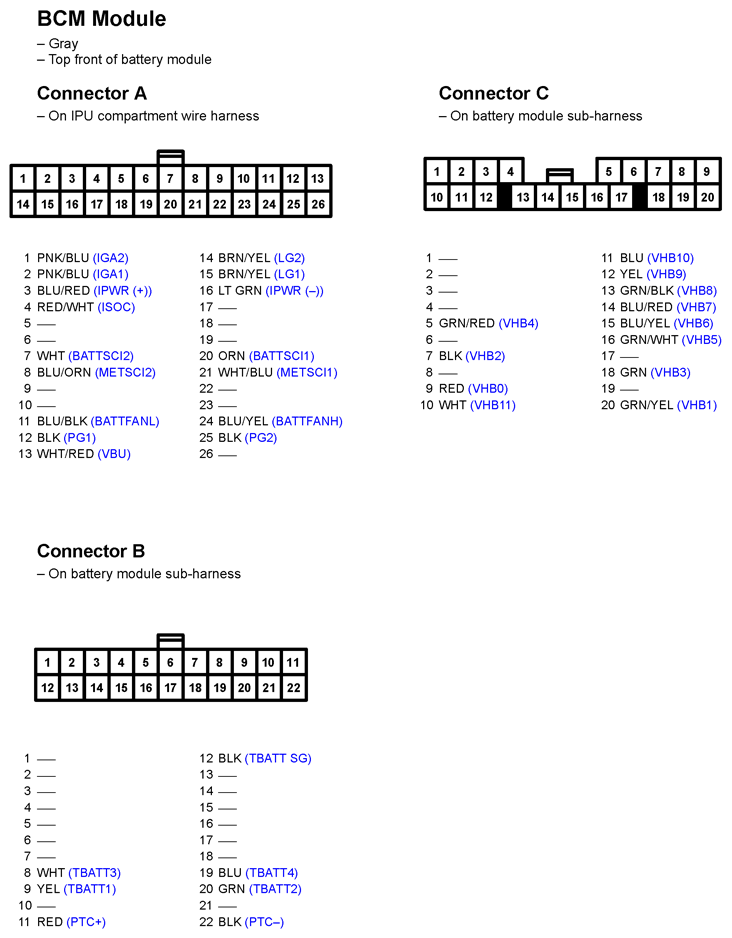

Fig 1: BCM Module Connector End View

G11250589

Courtesy of AMERICAN HONDA MOTOR CO., INC.
