BCM Module Inputs and Outputs at Connector C (20P)

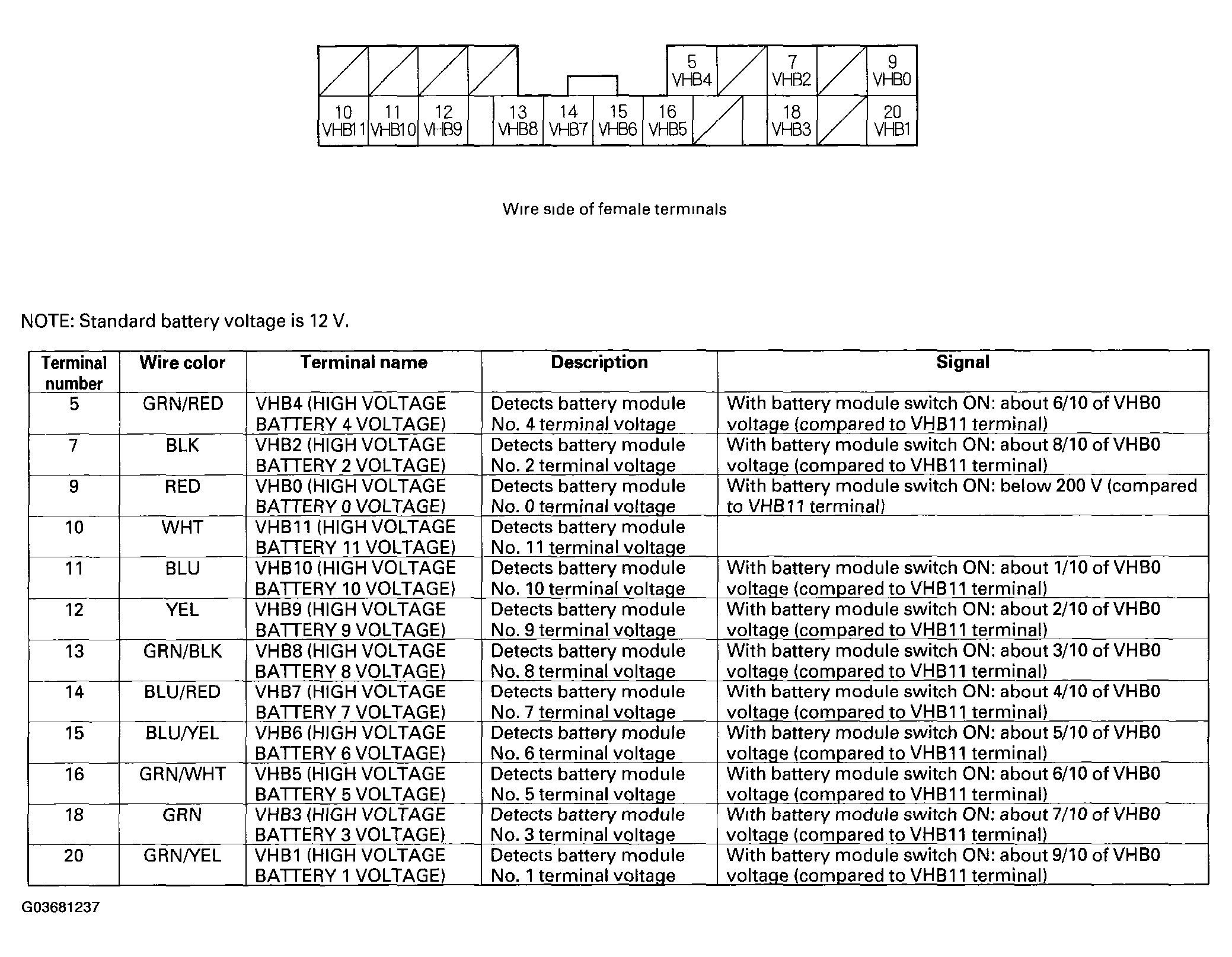

Fig 1: Identifying BCM Module Inputs And Outputs Connector C (20P) Terminals

G03681237

Courtesy of AMERICAN HONDA MOTOR CO., INC.
