ABS Modulator-Control Unit Inputs and Outputs for 25P Connector

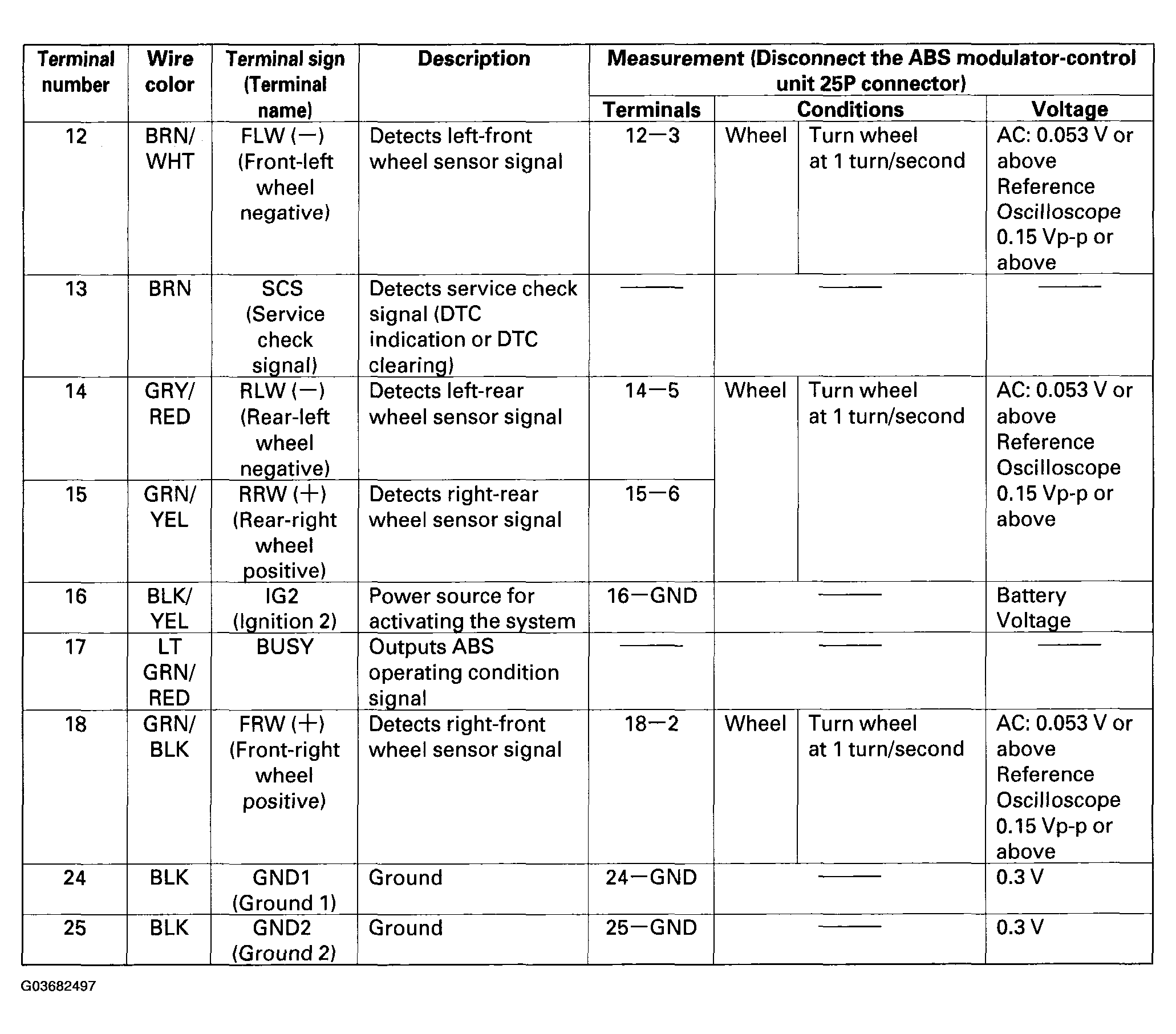

Fig 1: ABS Modulator-Control Unit Inputs And Outputs For 25P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

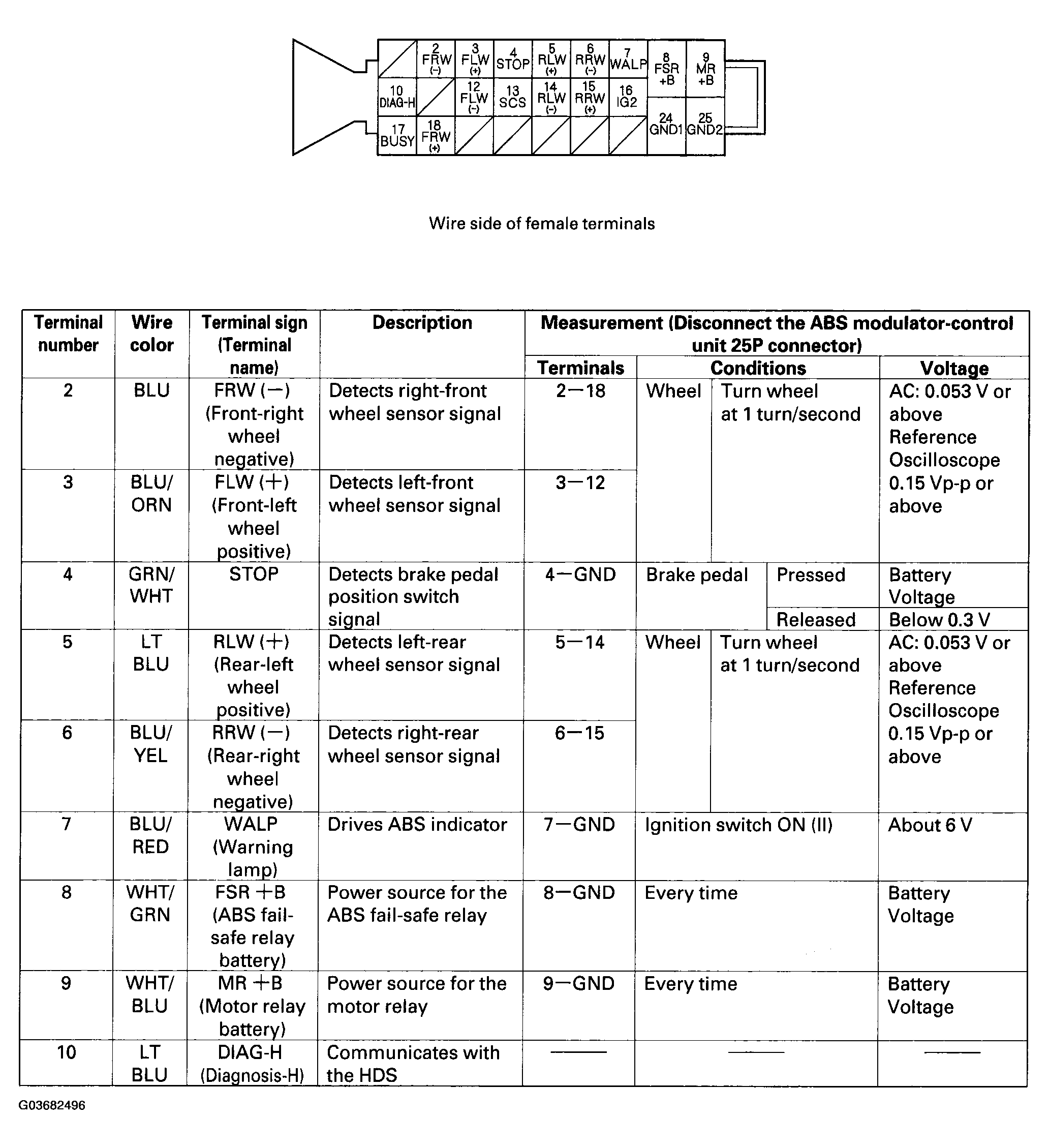

Fig 2: ABS Modulator-Control Unit Inputs And Outputs For 25P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
