Component Locations

WARNING: Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING AND ACTIVATING in appropriate AIR BAG RESTRAINT SYSTEMS article.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

For help in locating stereo system electrical components, see Fig 1 and Fig 2 .

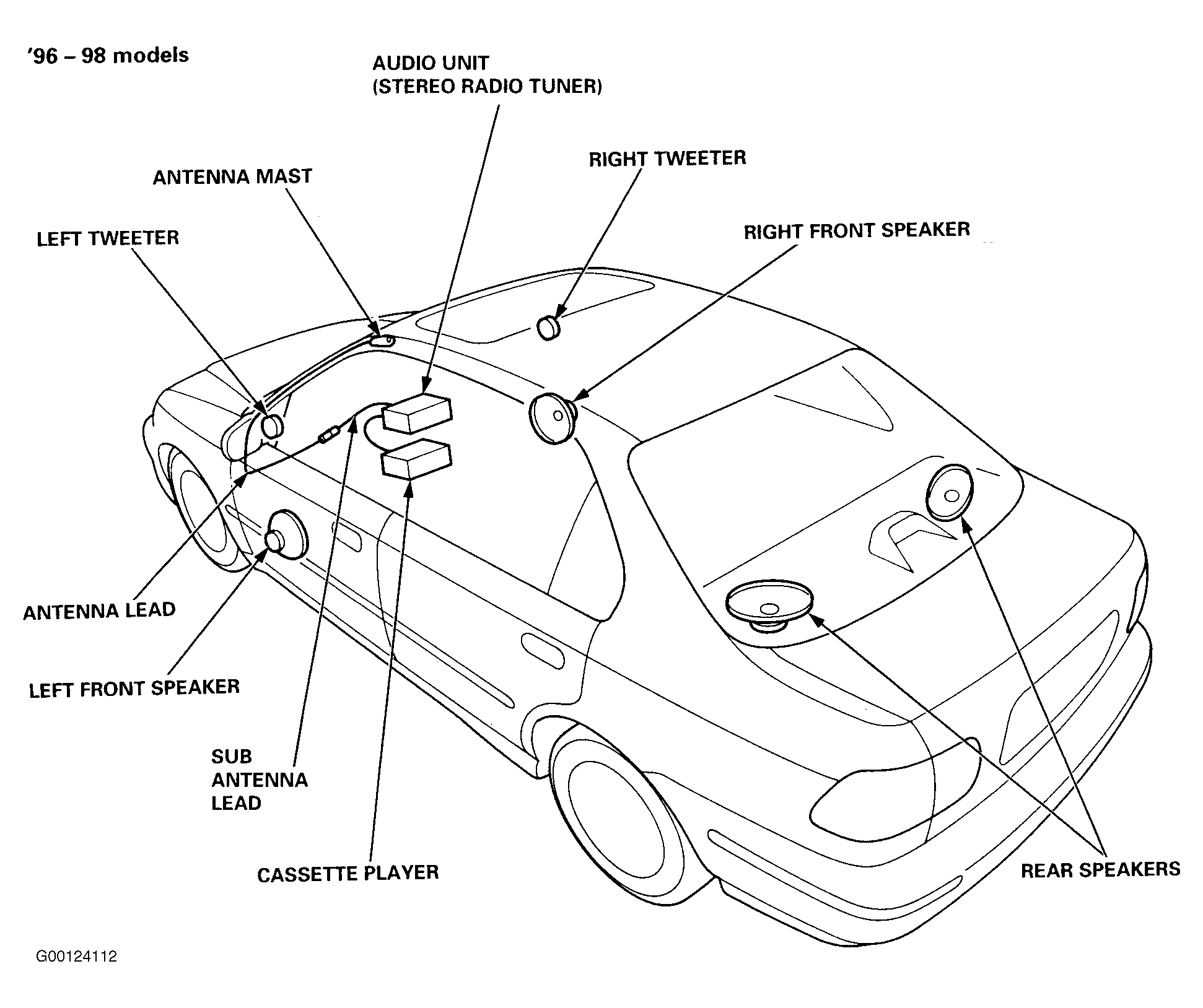

Fig 1: Identifying Stereo System Component Locations (1996-98)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

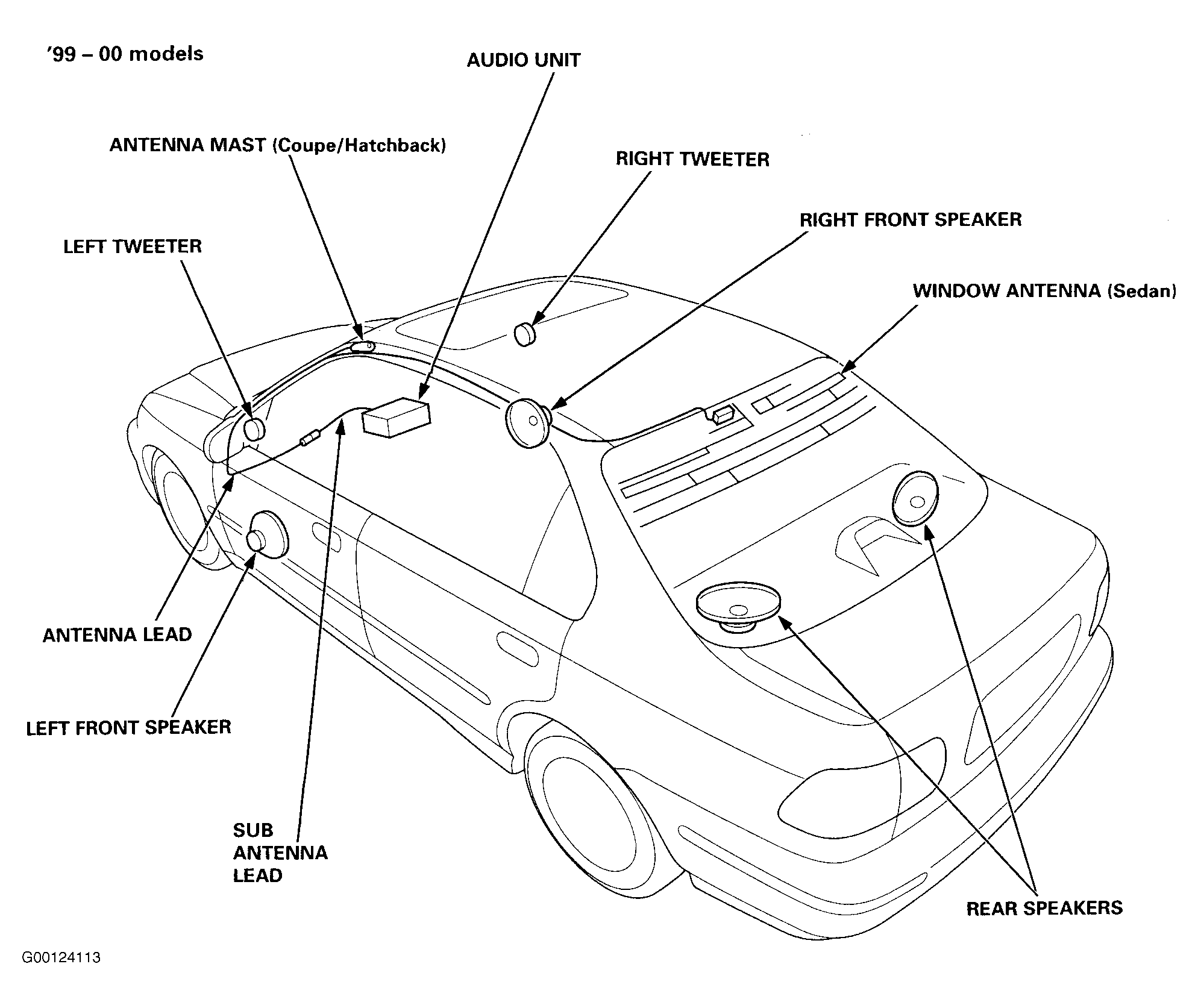

Fig 2: Identifying Stereo System Component Locations (1999-2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
