Civic GX, Standard, S40
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Fuel System & Emissions System (GX)
>>
Troubleshooting
>>
Powertrain Control Module Terminal Arrangement
Powertrain Control Module Terminal Arrangement

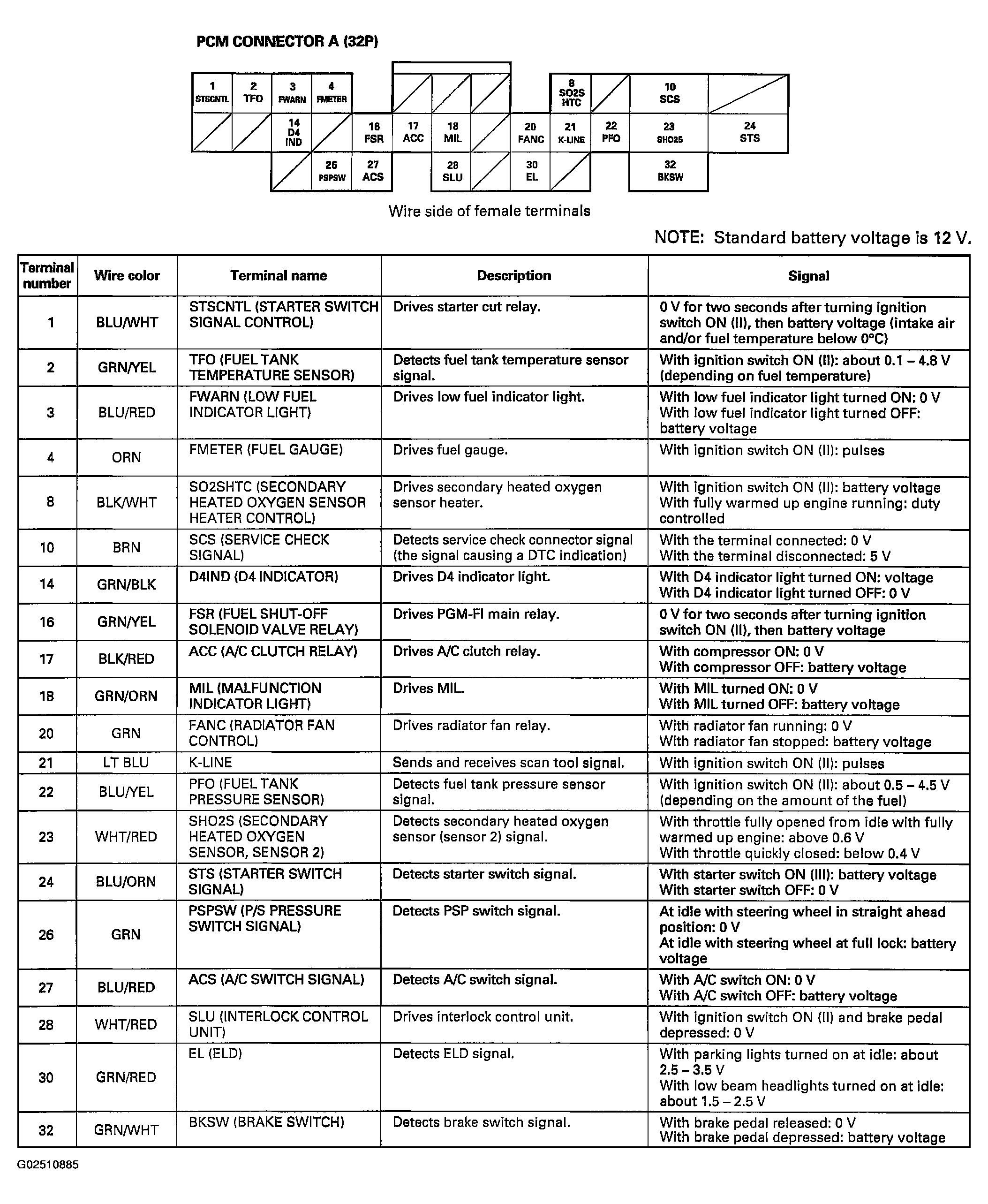

Fig 1: Identifying PCM Connector A (32P) Terminal Arrangement
Courtesy of AMERICAN HONDA MOTOR CO., INC.

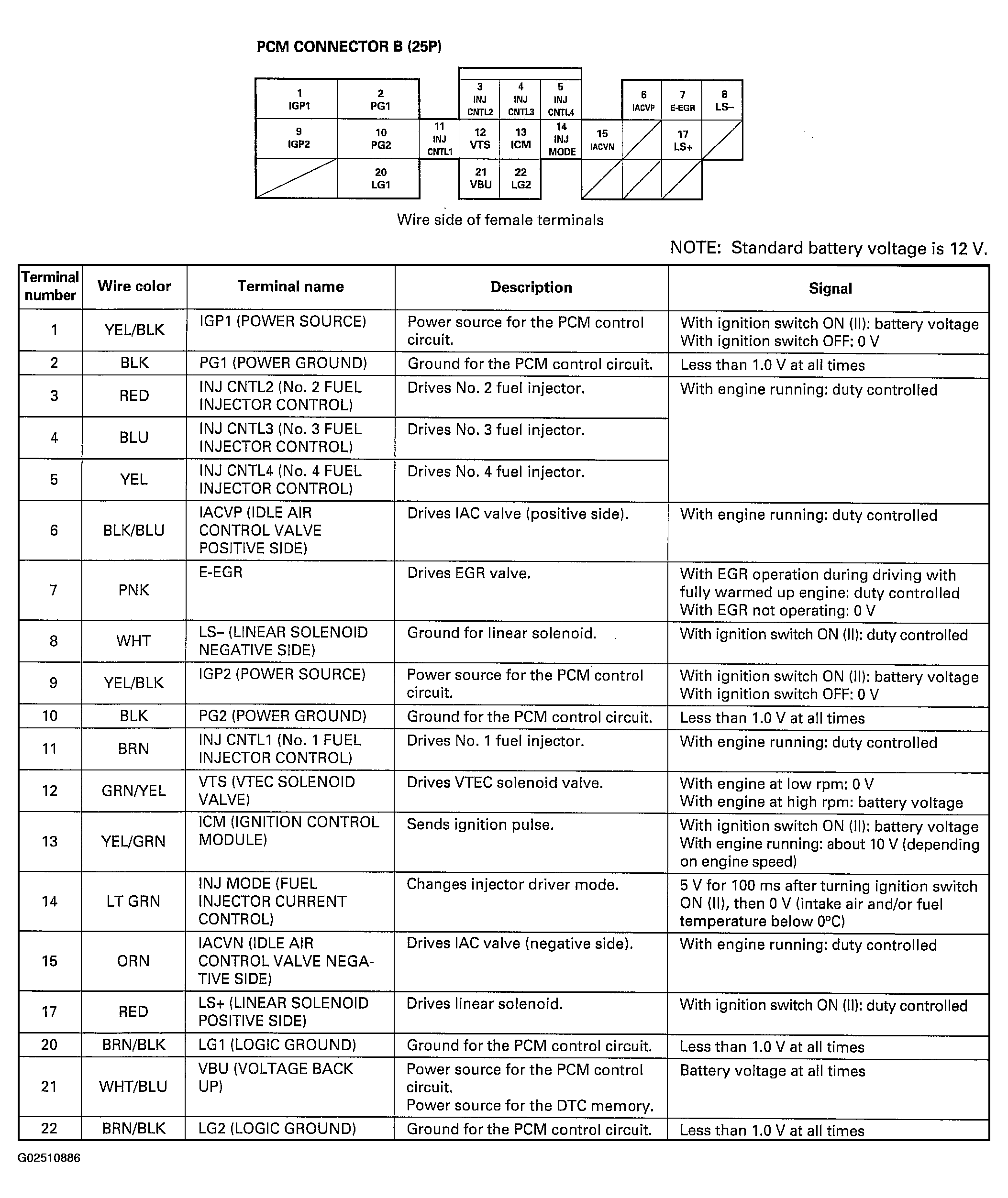

Fig 2: Identifying PCM Connector B (25P) Terminal Arrangement
Courtesy of AMERICAN HONDA MOTOR CO., INC.

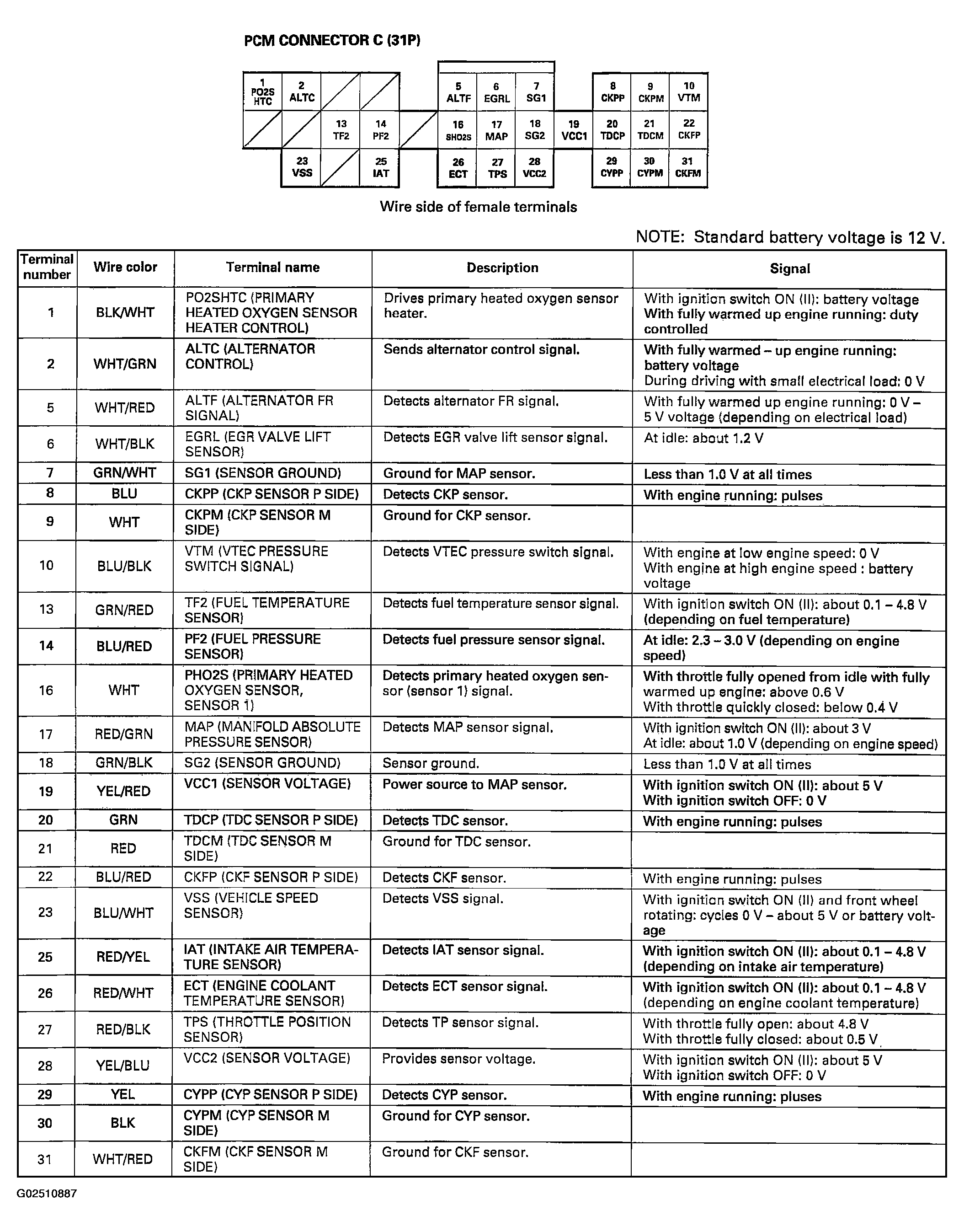

Fig 3: Identifying PCM Connector C (31P) Terminal Arrangement
Courtesy of AMERICAN HONDA MOTOR CO., INC.

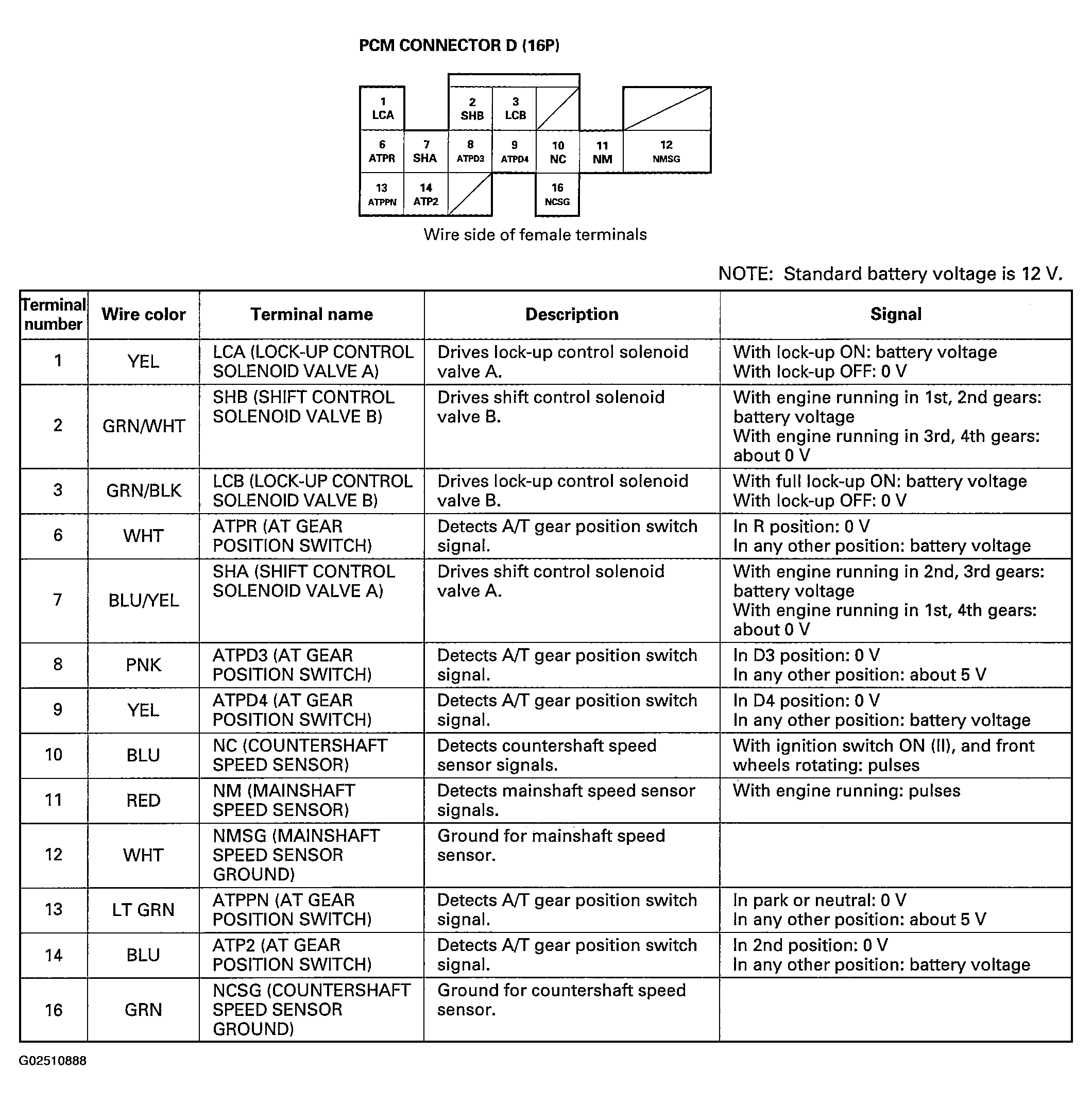

Fig 4: Identifying PCM Connector D (16P) Terminal Arrangement
Courtesy of AMERICAN HONDA MOTOR CO., INC.
