Injector Control Module

Injector control module controls the fuel injectors, and prevents them from sticking when starting in the extremely low temperatures. Current is increased to the fuel injectors momentarily, when the ignition switch is turned ON (II) to loosen any sticking fuel injectors.

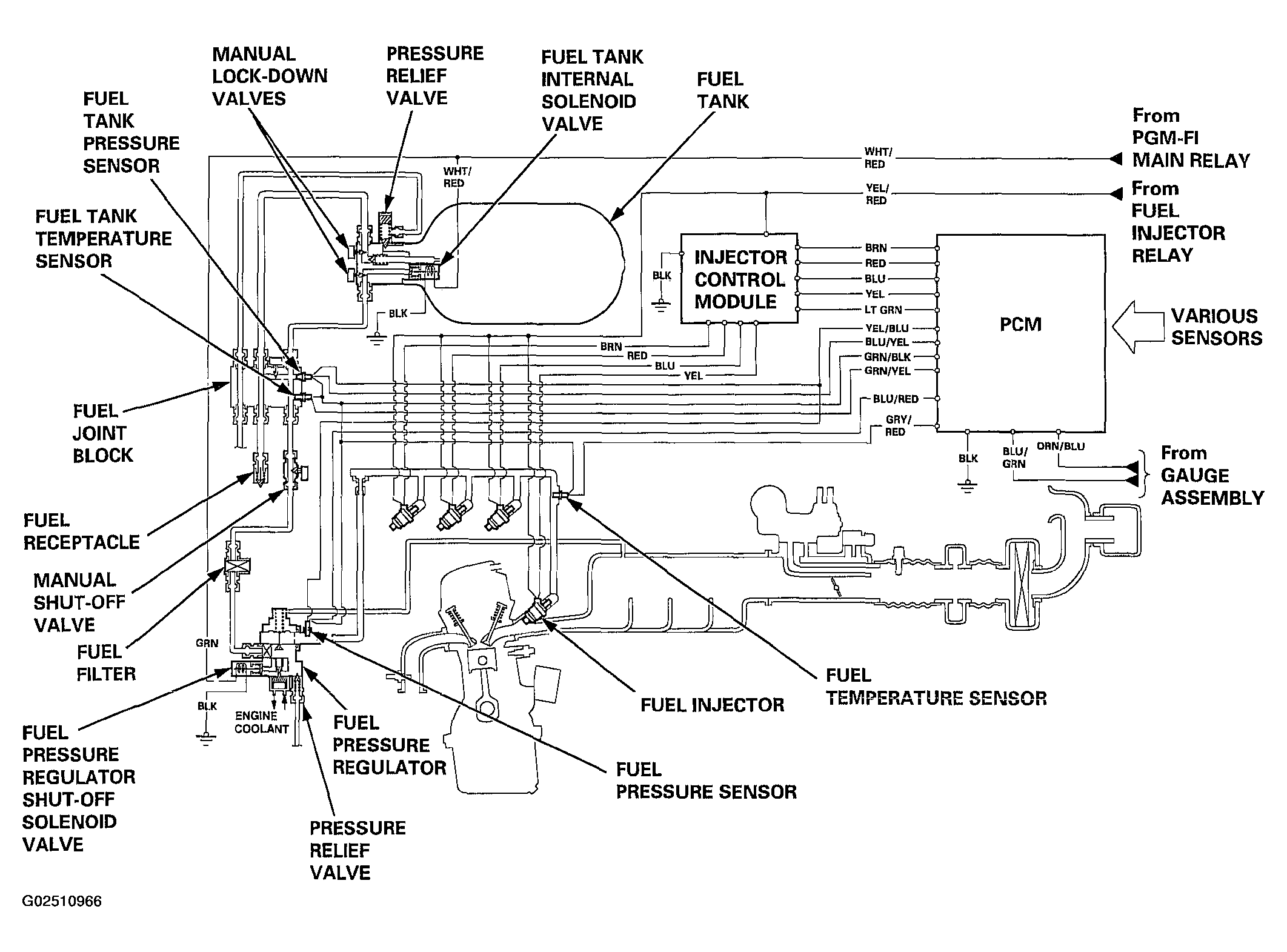

Fig 1: Injector Control Module System Description Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

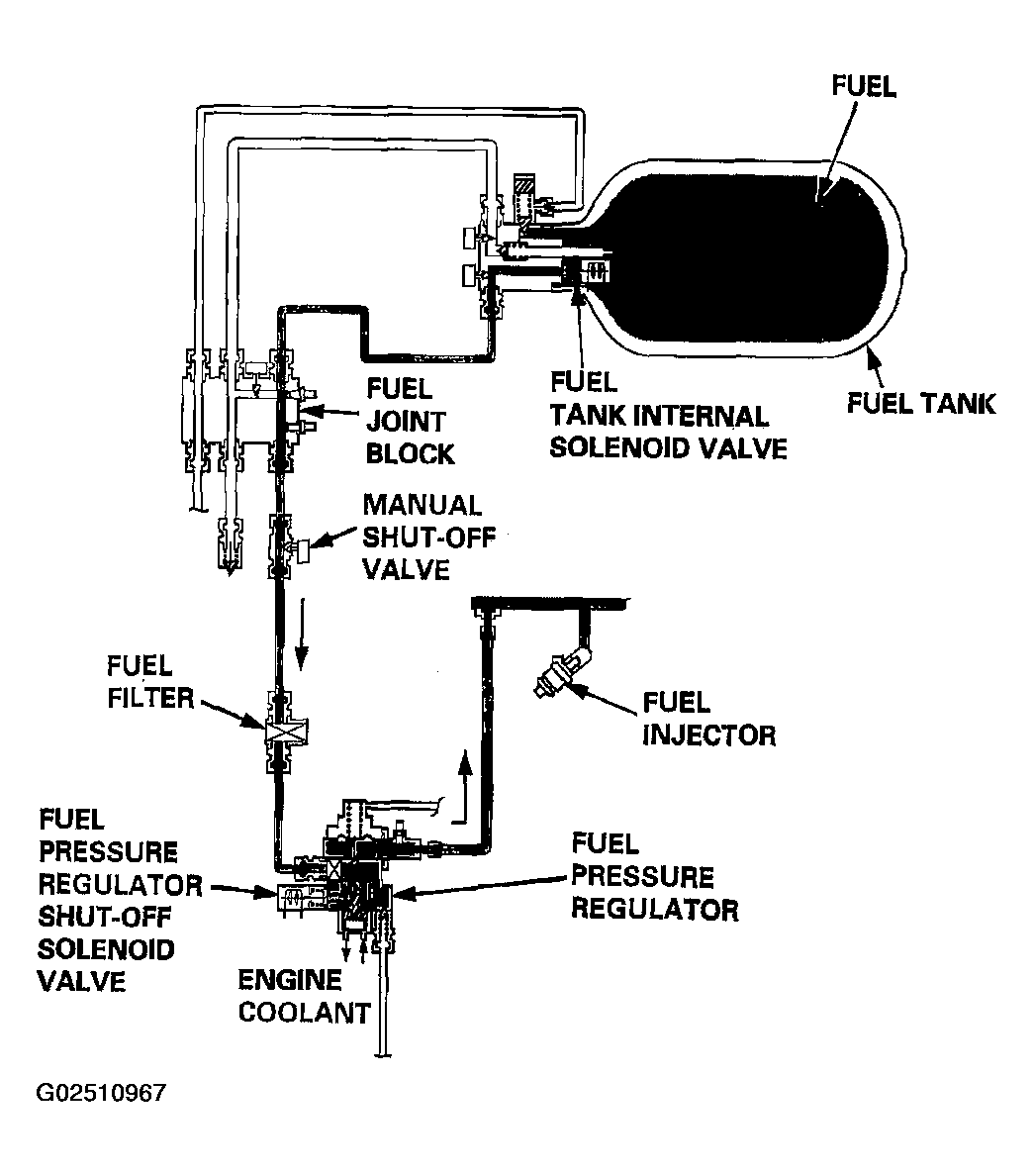

Fig 2: Injector Control Module System Description Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
