Fuel Tank: Replacement: Disassembly

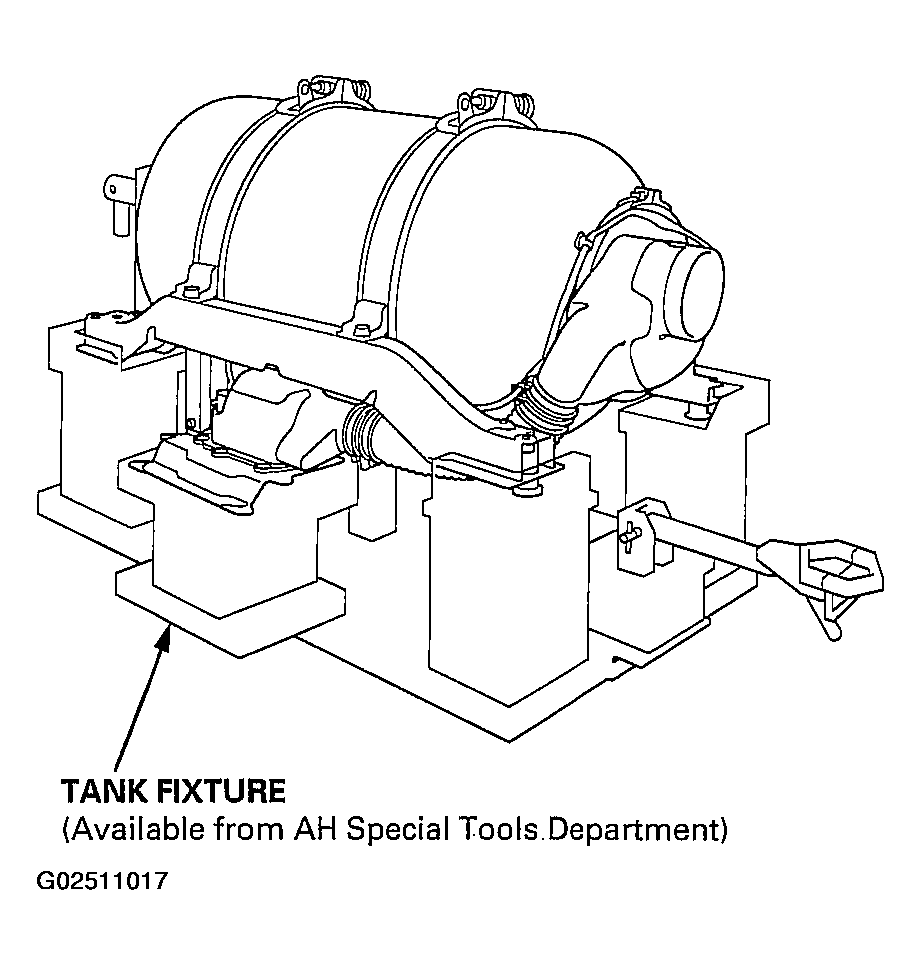

Bolt the fuel tank assembly in the tank fixture for disassembly.

Fig 1: Bolt Fuel Tank Assembly In The Tank
Courtesy of AMERICAN HONDA MOTOR CO., INC.

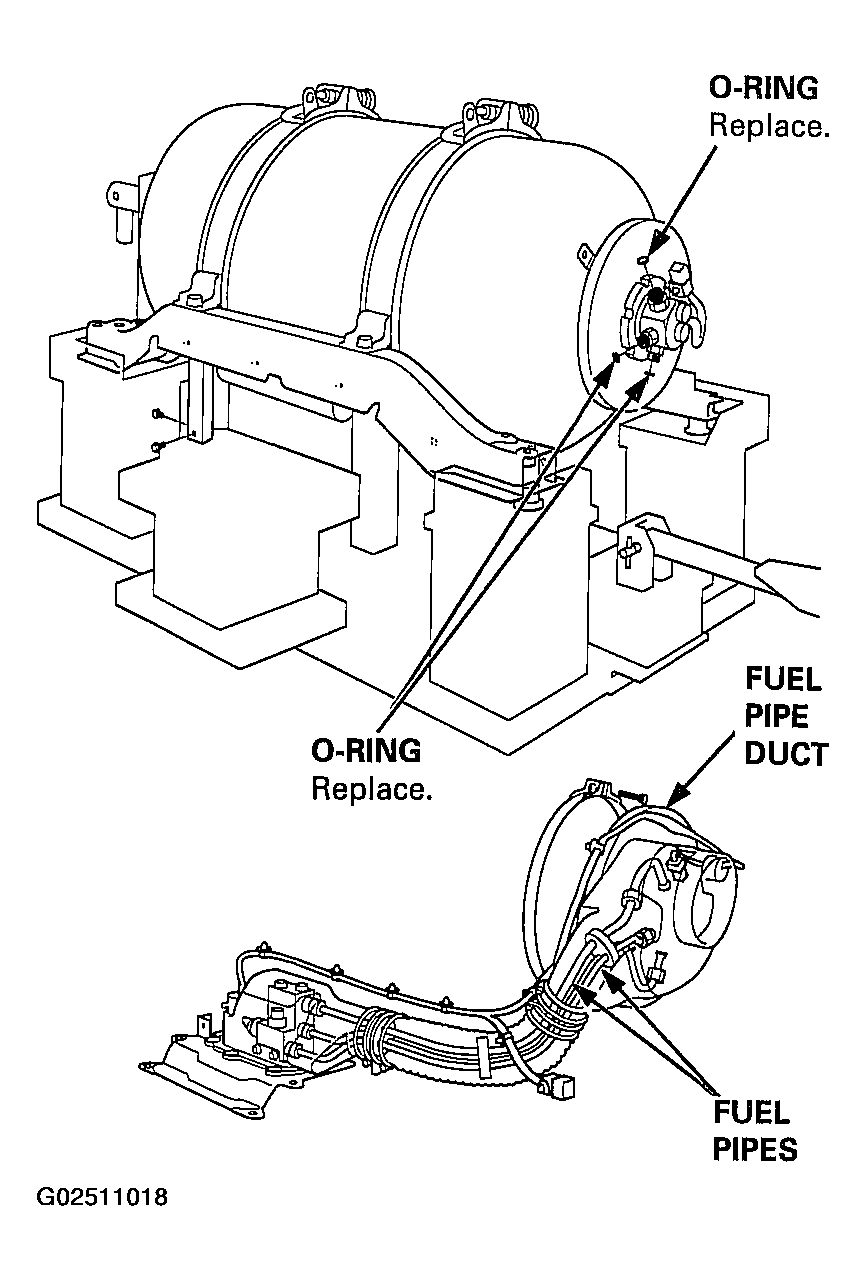

Remove the fuel pipe duct, then remove the three fuel pipes from the fuel tank.

Fig 2: Removing Fuel Pipe Duct & Three Fuel Pipes From Fuel Tank
Courtesy of AMERICAN HONDA MOTOR CO., INC.

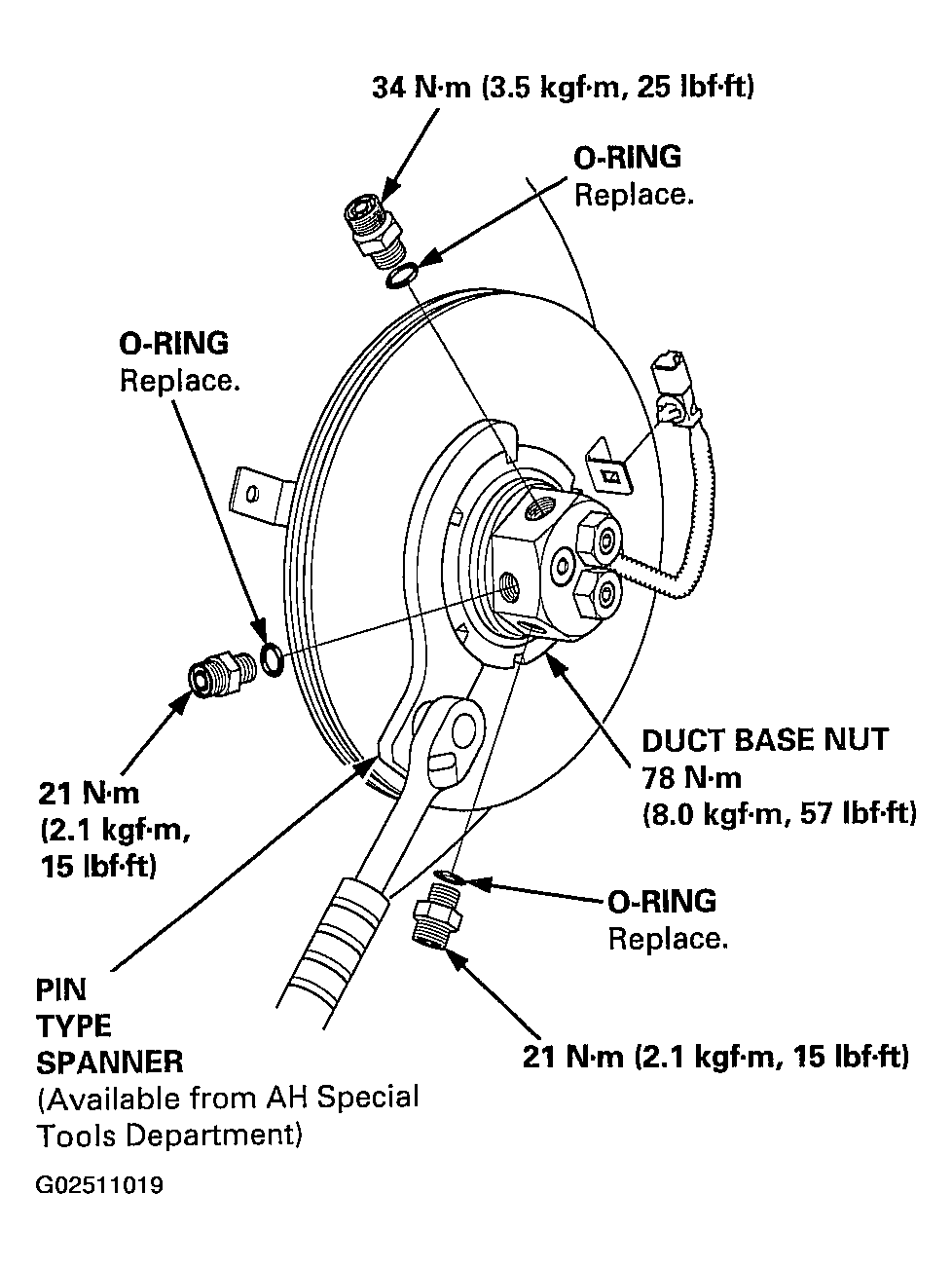

Using the special tool, loosen the duct base nut.

Fig 3: Loosening Duct Base Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

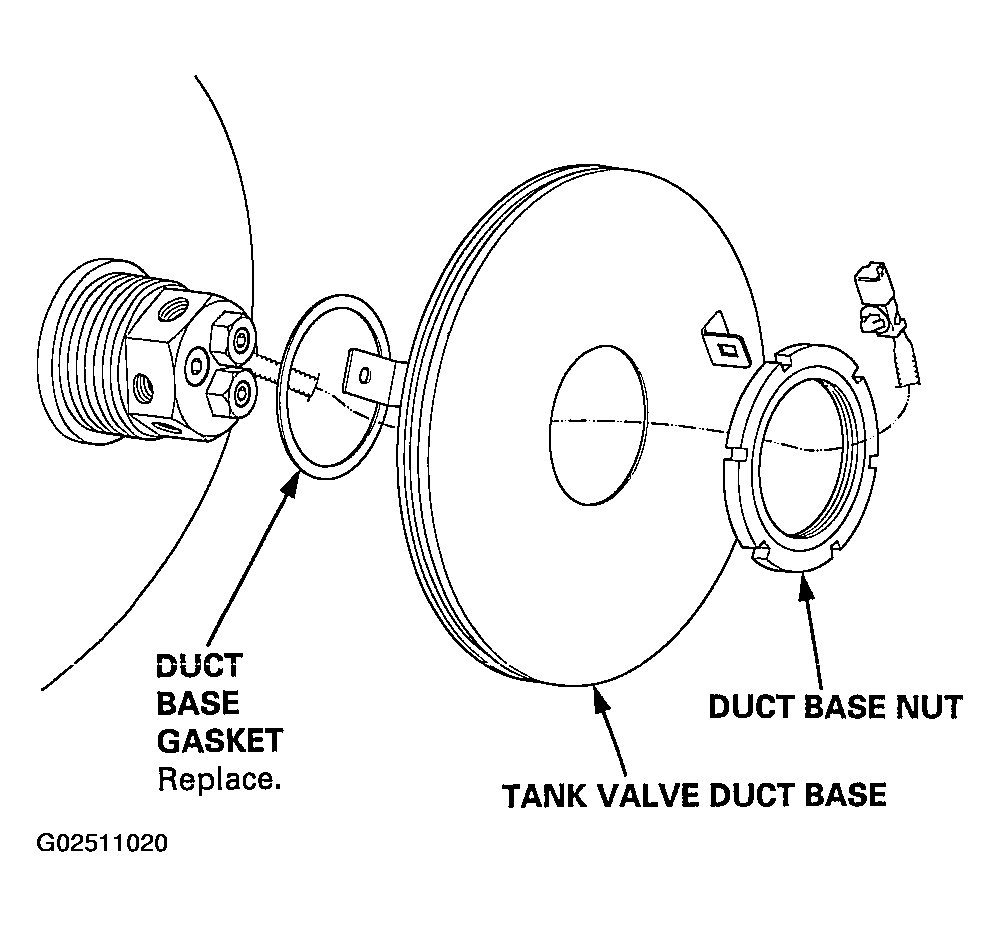

Remove the duct base nut, tank valve duct base, and the tank base gasket.

Fig 4: Removing Duct Base Nut, Tank Valve Duct Base, & Tank Base Gasket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

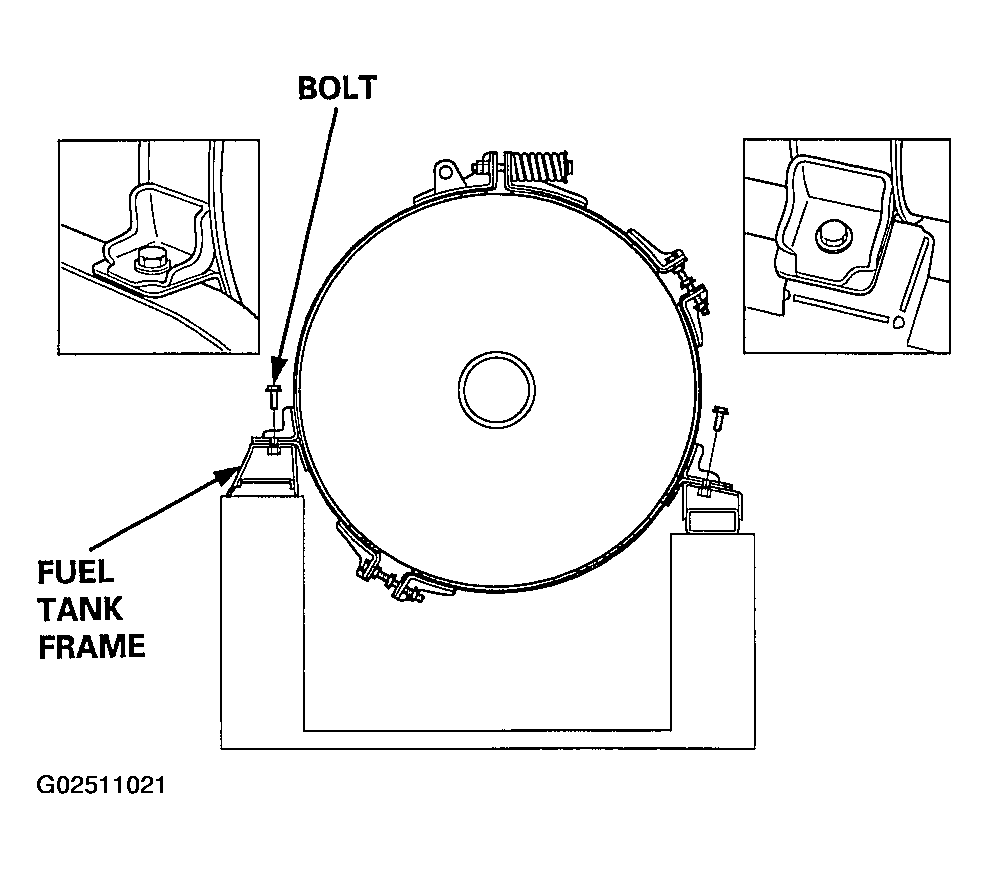

Unbolt the fuel tank bands from the fuel tank frame, and remove the old fuel tank.

Fig 5: Removing Old Fuel Tank
Courtesy of AMERICAN HONDA MOTOR CO., INC.

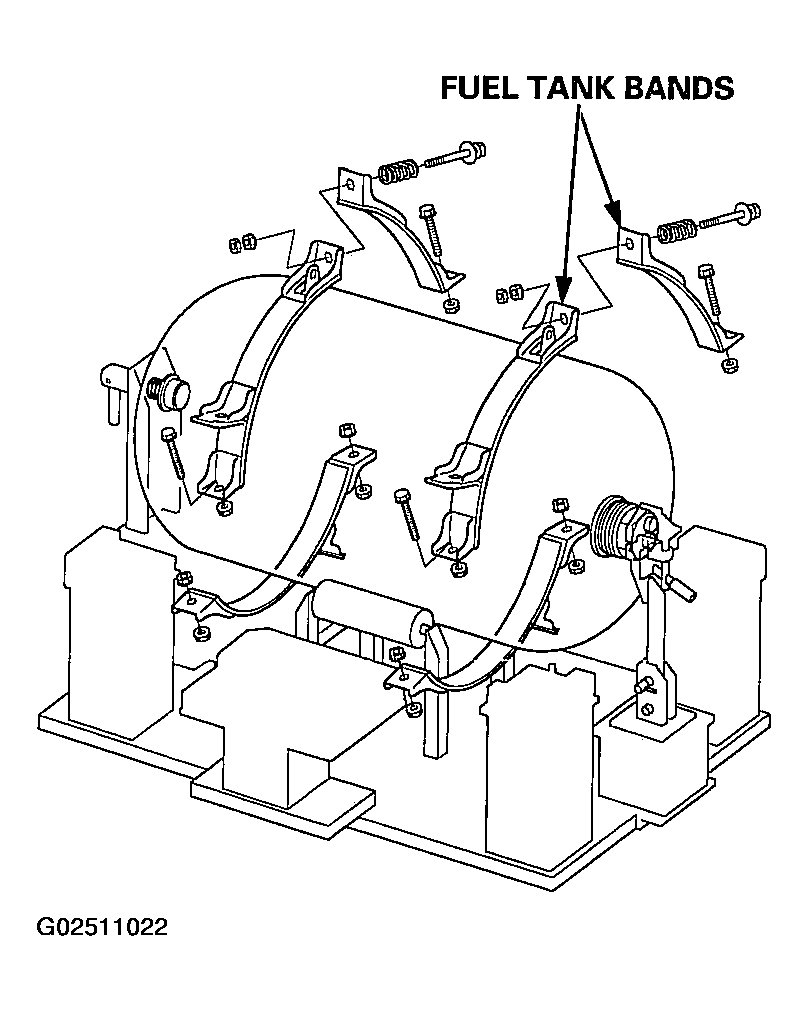

With the old fuel tank lifted from the fuel tank frame, remove the fuel tank bands from the fuel tank.

Fig 6: Removing Fuel Tank Bands From Fuel Tank
Courtesy of AMERICAN HONDA MOTOR CO., INC.
