Fuel Injector Relay

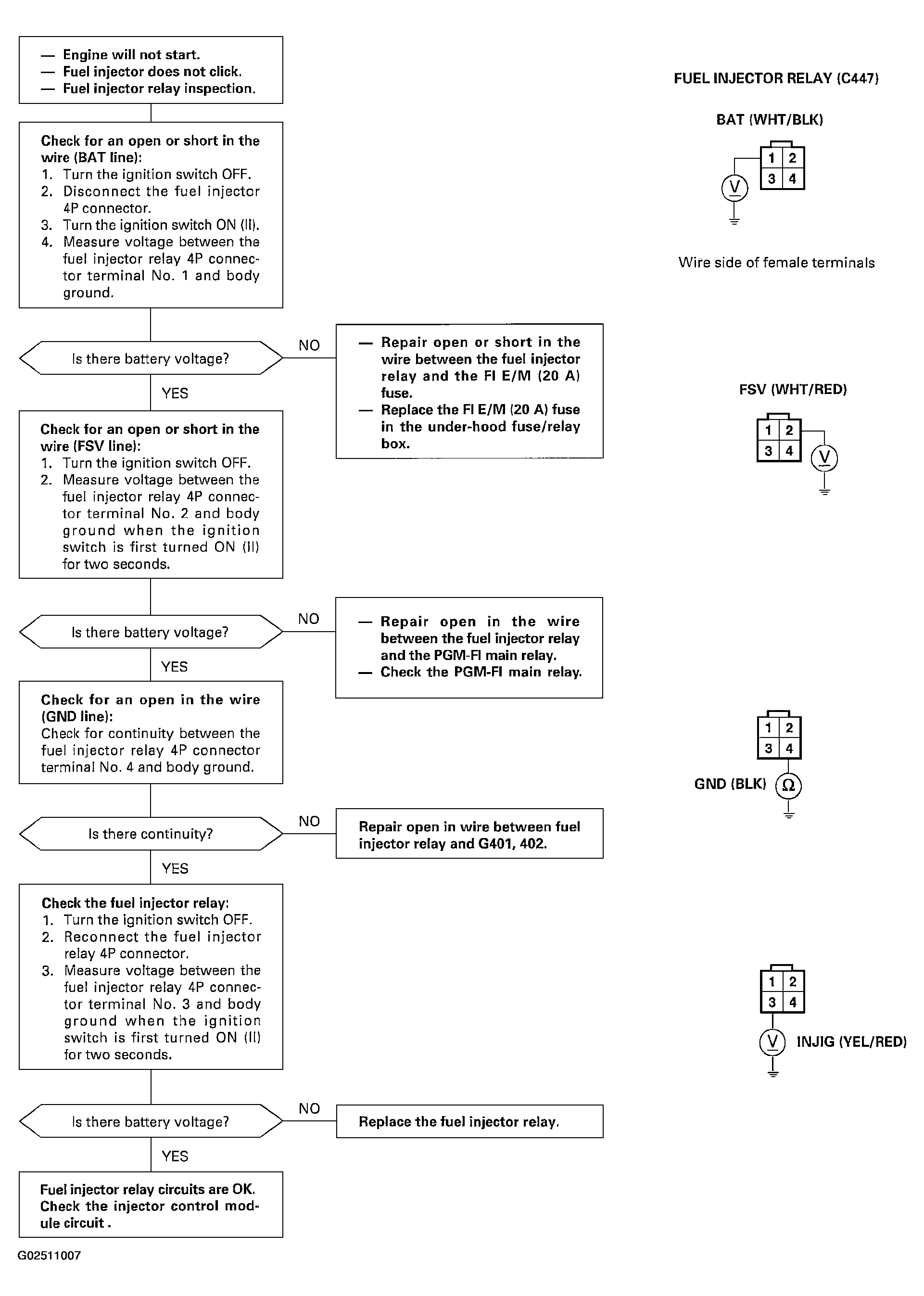

Fig 1: Fuel Injector Relay Troubleshooting Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
