Power Mirror Switch

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check for continuity between appropriate mirror switch terminals. See appropriate POWER MIRROR SWITCH CONTINUITY table. See Fig 1-Fig 5 . If switch fails any test, replace switch.

POWER MIRROR SWITCH CONTINUITY (ACCORD)

Application		Continuity Between Terminals No.
Left Mirror
Up		1 & 4; 2 & 7
Down		1 & 7; 2 & 4
Left		1 & 7; 2 & 9
Right		1 & 9; 2 & 7
Right Mirror
Up		1 & 4; 2 & 8
Down		1 & 8; 2 & 4
Left		1 & 8; 2 & 10
Right		1 & 10; 2 & 8
Defogger (Canada Only)
On		3 & 6
OFF		No Continuity

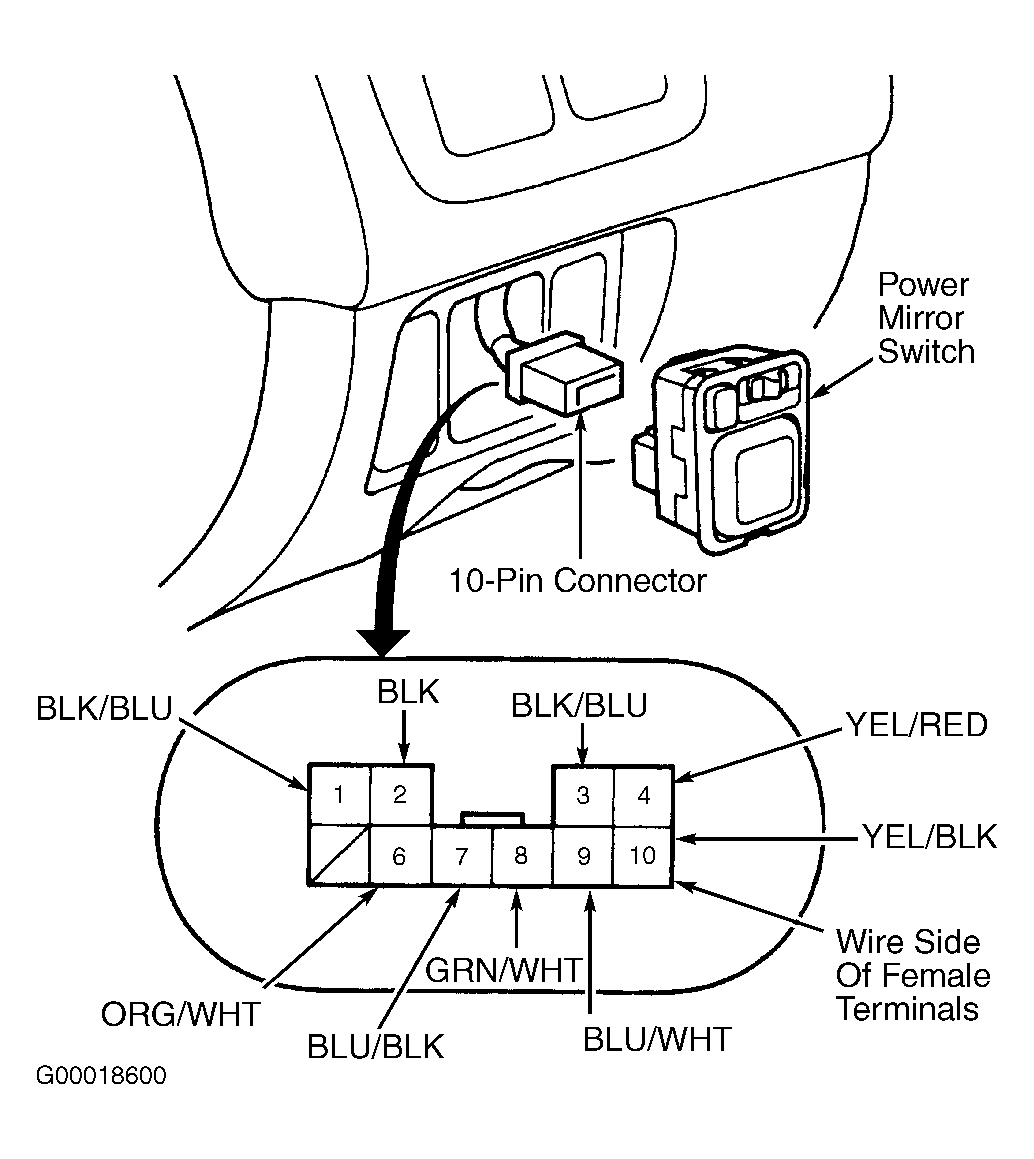

POWER MIRROR SWITCH CONTINUITY (CIVIC W/DEFOGGER)

Application		Continuity Between Terminals No.
Left Mirror
Up		1 & 4; 2 & 7
Down		1 & 7; 2 & 4
Left		1 & 7; 2 & 9
Right		1 & 9; 2 & 7
Right Mirror
Up		1 & 4; 2 & 8
Down		1 & 8; 2 & 4
Left		1 & 8; 2 & 10
Right		1 & 10; 2 & 8
Defogger (Canada Only)
On		2, 3 & 6
OFF		2 & 3

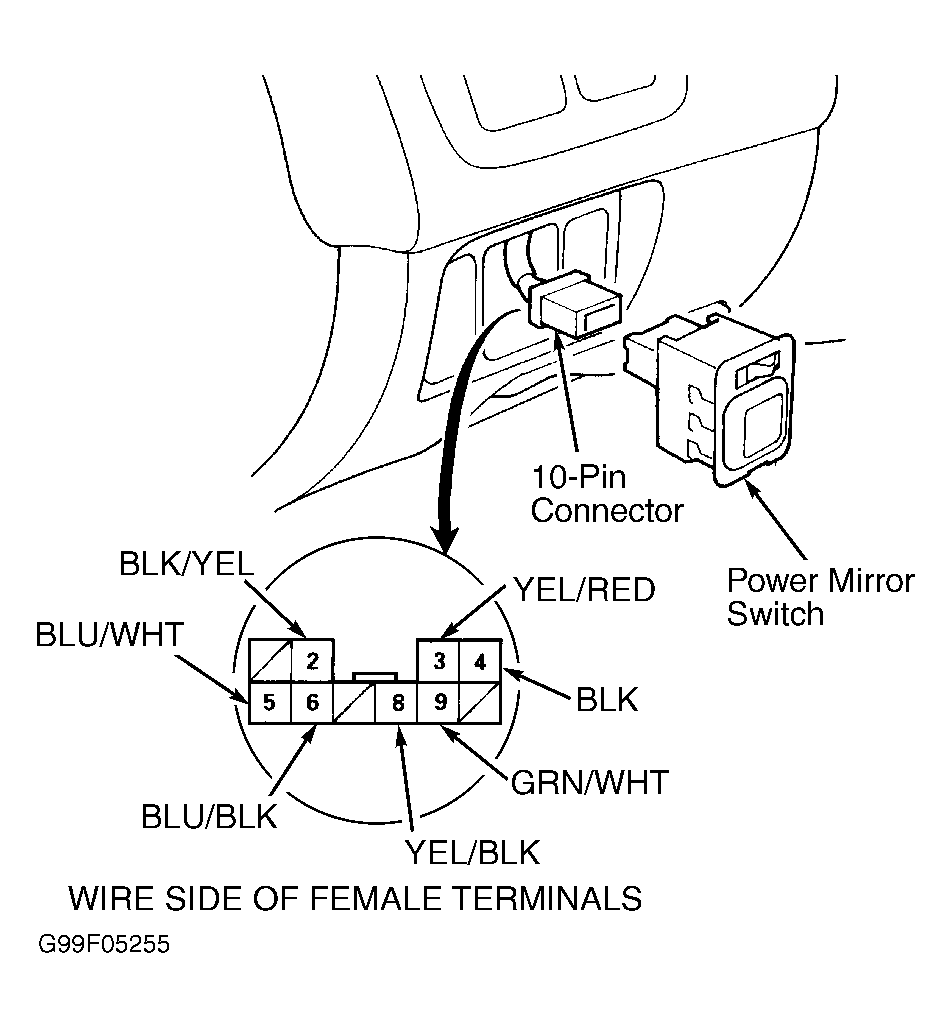

POWER MIRROR SWITCH CONTINUITY (CIVIC W/O DEFOGGER & CR-V)

Application		Continuity Between Terminals No.
Left Mirror
Up		2 & 5; 3 & 4
Down		2 & 3; 4 & 5
Left		2 & 3; 4 & 6
Right		2 & 6; 3 & 4
Right Mirror
Up		2 & 9; 3 & 4
Down		2 & 3; 4 & 9
Left		2 & 3; 4 & 8
Right		2 & 8; 3 & 4

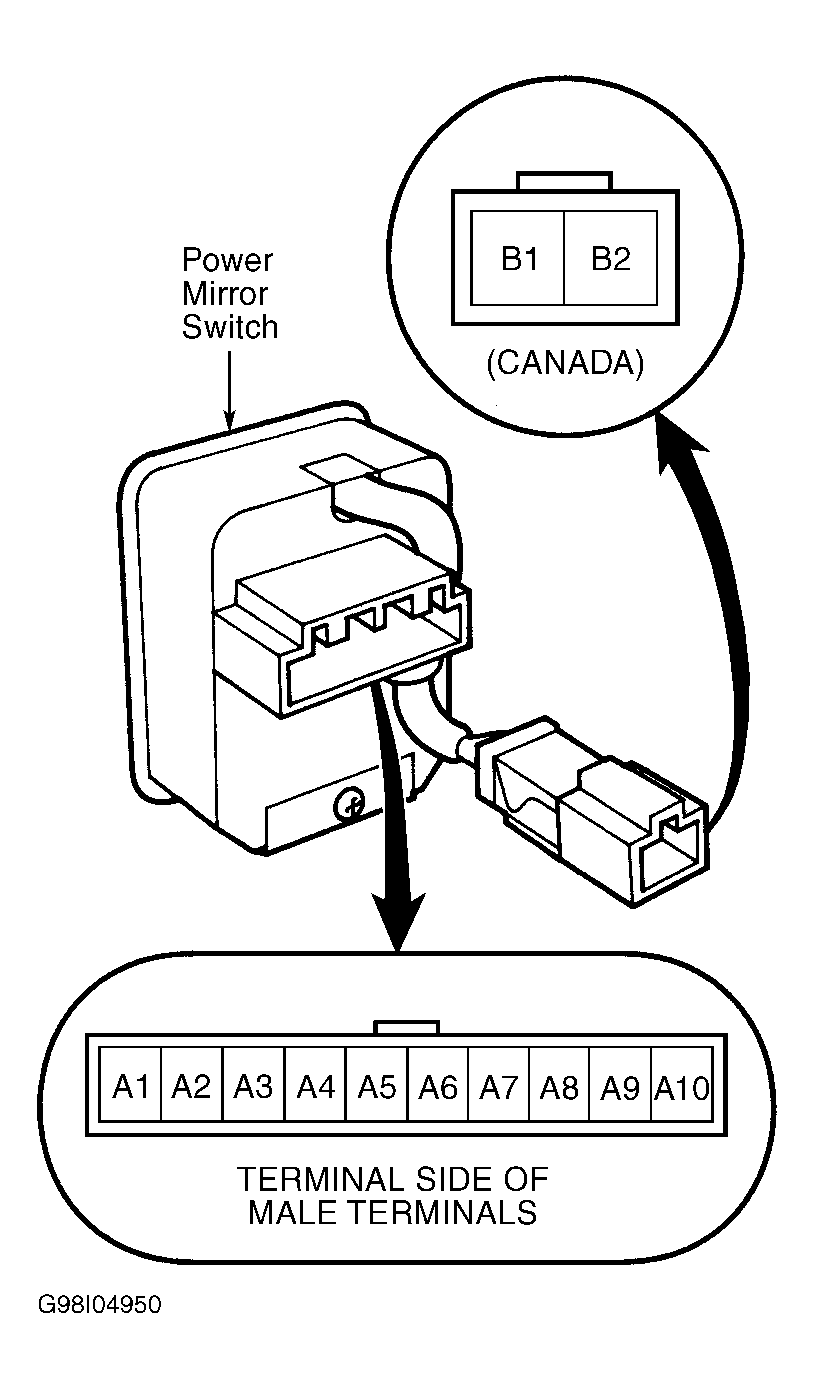

POWER MIRROR SWITCH CONTINUITY (PRELUDE)

Application		Continuity Between Terminals No.
Right Mirror
Off		A3, A5, A6 & A10
Up		A3, A6 & A10; A5 & A9
Down		A3, A6 & A9; A5 & A10
Left		A5, A6 & A9; A3 & A10
Right		A5, A6 & A10; A3 & A9
Left Mirror
Off		A4, A5, A7 & A10
Up		A4, A7 & A10; A5 & A9
Down		A4, A7 & A9; A5 & A10
Left		A5, A7 & A9; A4 & A10
Right		A5, A7 & A10; A4 & A9
Defogger (Canada Only)
On		B1, B2 & A10
OFF		B1 & A10

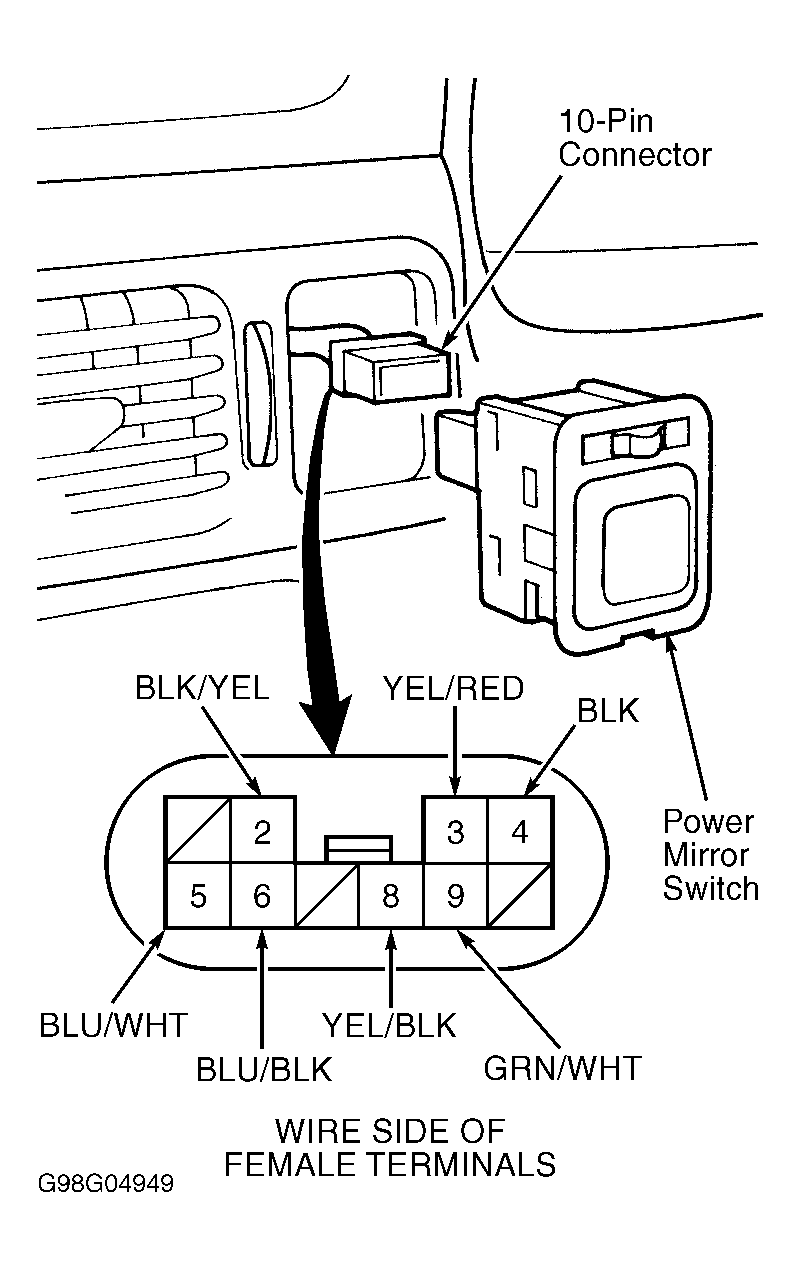

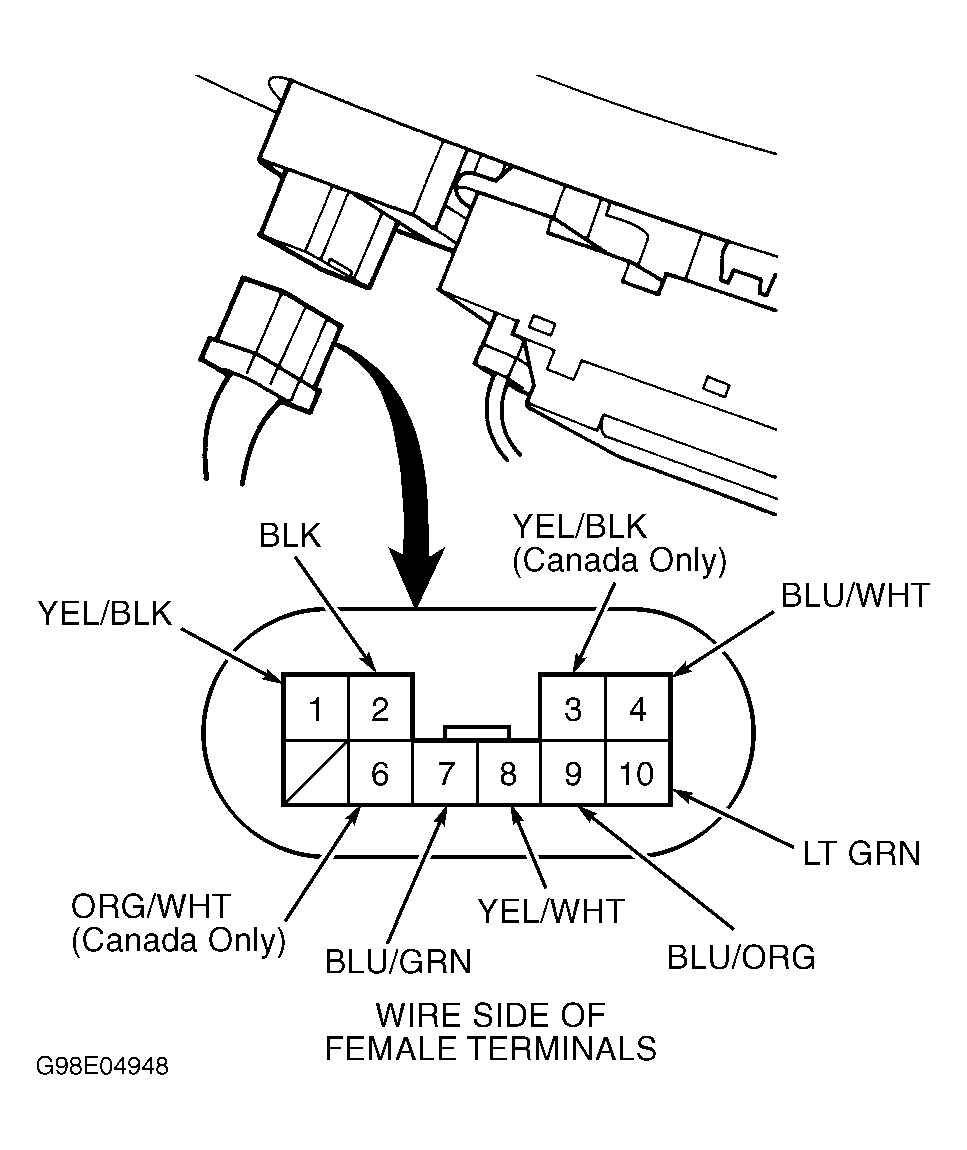

Fig 1: Identifying Power Mirror Switch Connector (Accord)
