Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Driver's Seat Belt Switch | In Driver's Seat Belt Buckle |

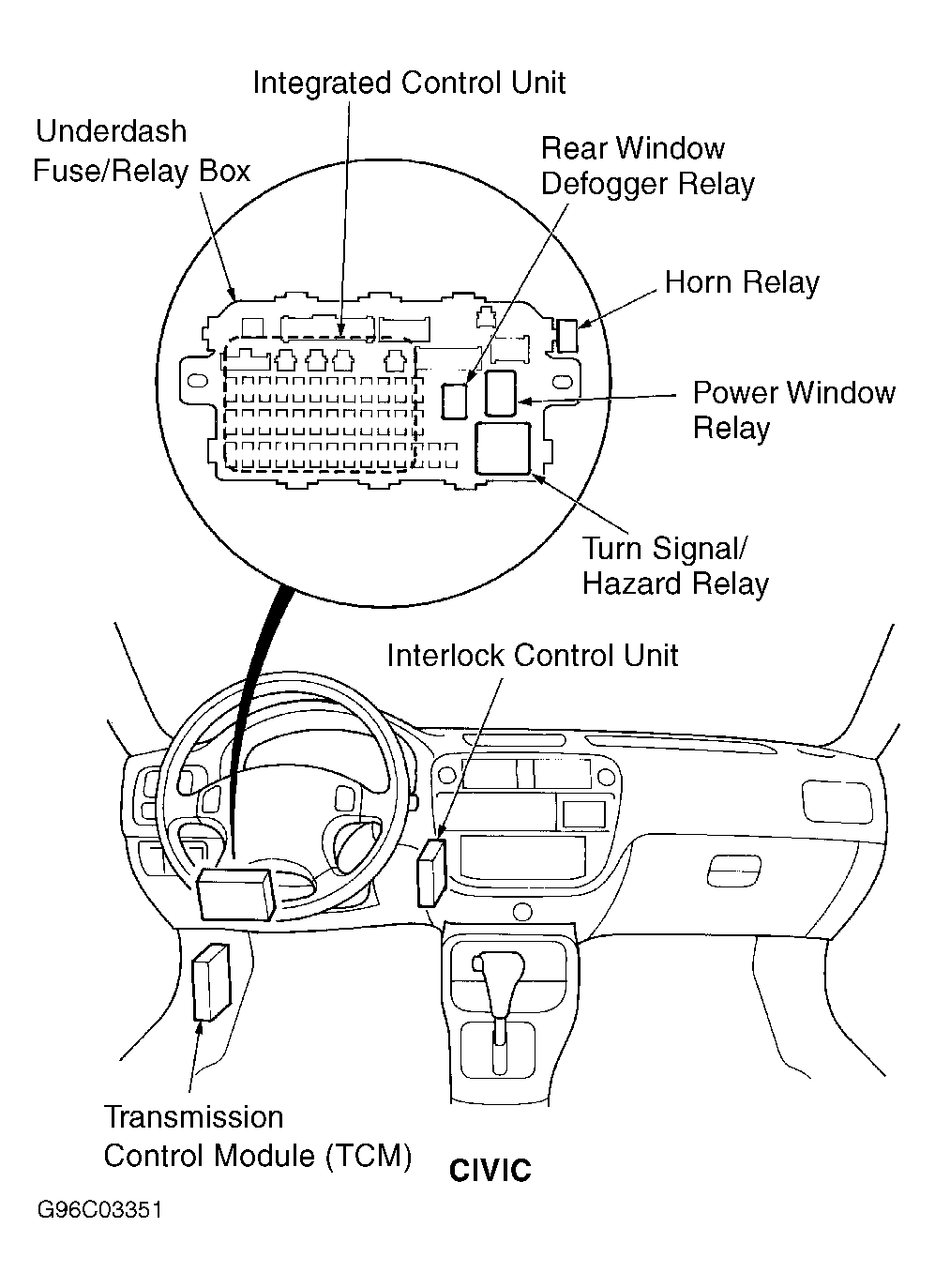

| Integrated Control Unit | Behind Left Side Of Dash, On Rear Of Underdash Fuse/Relay Box, See Fig 1 |
| Underdash Fuse/Relay Box | Behind Left Side Of Dash, See Fig 1 |

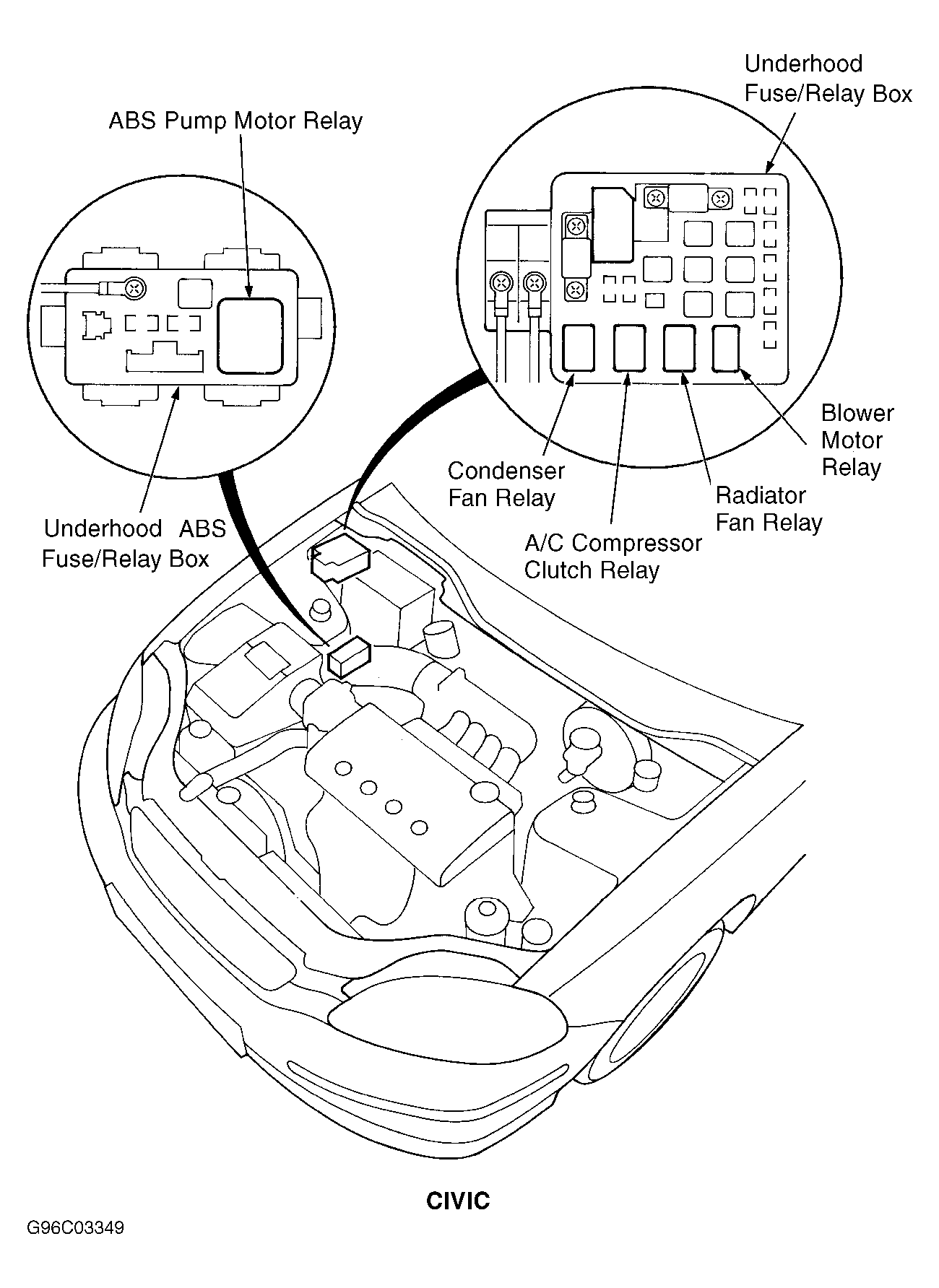

| Underhood Fuse/Relay Box | On Right Rear Corner Of Engine Compartment, See Fig 2 |
