| A/C Compressor Bracket-To-Engine Bolts |
33 (45) |
| A/C Compressor-To-Bracket Bolts |
18 (24) |
| A/C Idler Pulley Bracket Bolts 8-mm |
18 (24) |
| A/C Idler Pulley Center Nut |
33 (45) |
| Battery Tray |
18 (24) |
| Camshaft Holder Bolts |
| DOHC 8-mm Bolts |
20 (27) |
| SOHC 8-mm Bolts |
15 (20) |
| Camshaft Pulley Bolt |
| DOHC |
41 (56) |
| SOHC |
27 (37) |
| Catalytic Converter Flange Nuts |
25 (34) |
| Clutch Slave Cylinder Line/Hose Bracket 8-mm Bolts |
18 (24) |
| Clutch Slave Cylinder Mounting 8-mm Bolts |
18 (24) |
| Connecting Rod Bearing Cap Nuts |
| DOHC |
30 (40) |
| SOHC |
23 (31) |
| Crankshaft Pulley Bolt |
| DOHC |
130 (177) |
| SOHC |
|

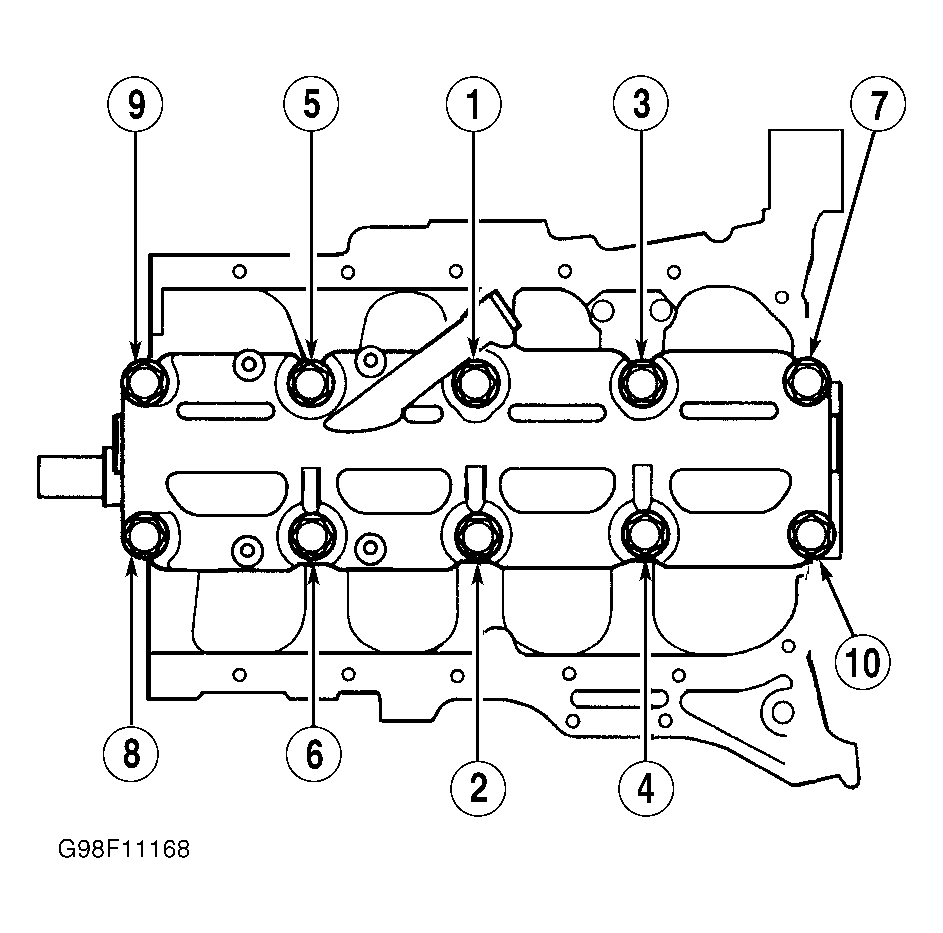

| Cylinder Head Bolts |
| DOHC |
| First Step (Bolts 1-10) |
22 (29) |
| Second Step |
61 (83) |
| SOHC |
| First Step (Bolts 1-10) |
15 (20) |
| Second Step (Bolts 1-10) |
36 (49) |
| Thrid Step (Bolts 1-10) |
49 (67) |
| Forth Step (Bolts 1 & 2) |
49 (67) |
| Distributor Mount Bolt |
18 (24) |
| Drive Plate Bolts (A/T Or CVT) |
54 (74) |
| EGR Valve Nuts |
15 (20) |
| Engine Coolant Drain Plug |
58 (79) |

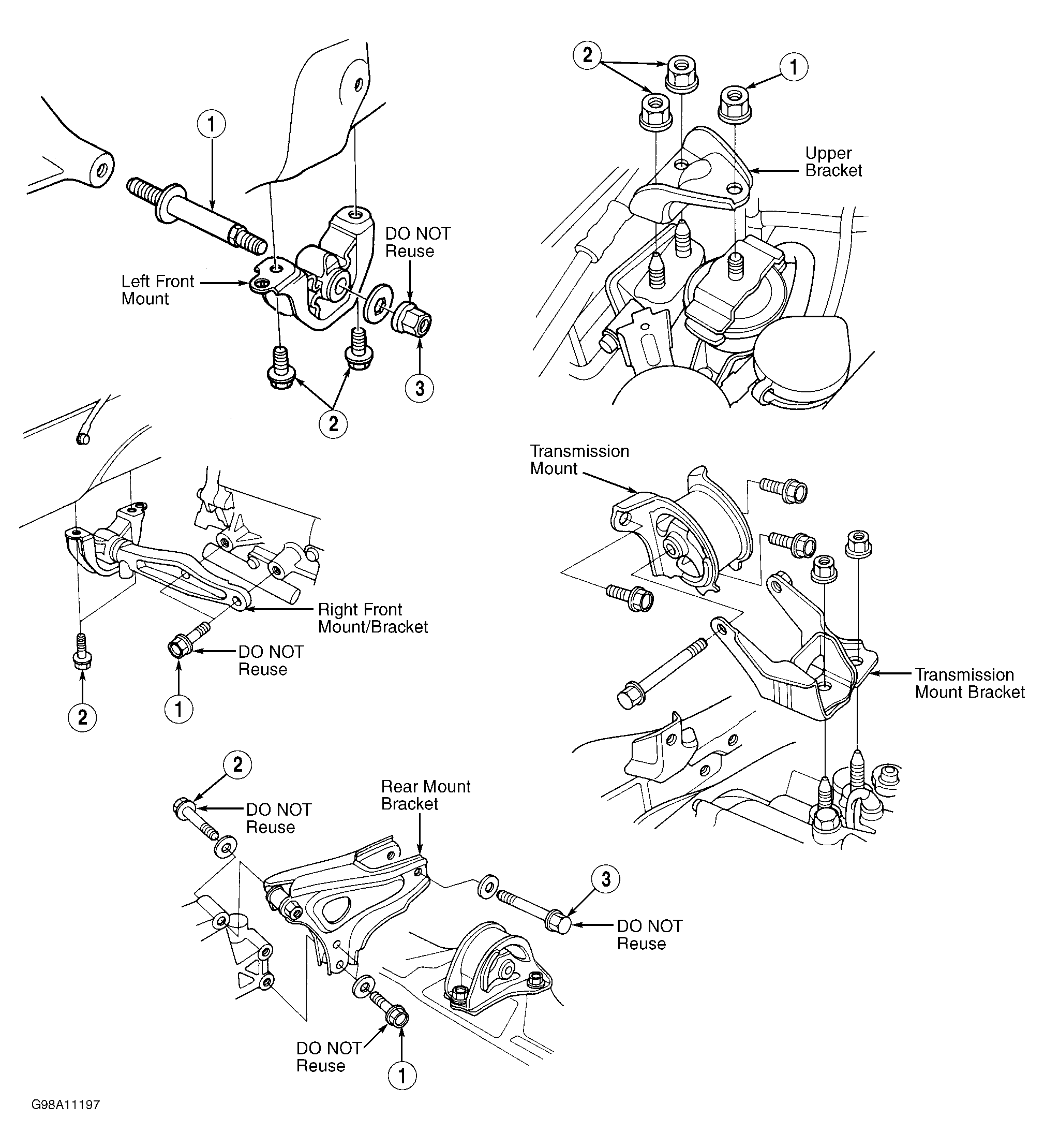

| Engine Mounts |
| Transaxle Mount |
| 10-mm Bolts |
28 (38) |
| 12-mm Bolts/Nuts |
47 (64) |
| 12-mm Through-Bolt |
54 (74) |
| Side Engine Mount 10-mm Nuts/Bolts |
40 (54) |
| Engine Upper Mount Bracket |
74 (54) |
| Rear Mount Bracket |
| 12-mm Bolts |
43 (59) |
| 14-mm Bolts |
61 (83) |
| Left Front Mount |
| 10-mm Bolts |
33 (44) |
| 12-mm Bolts |
43 (59) |
| Right Front Mount |
| 10-mm Bolts |
33 (44) |
| 12-mm Bolts |
47 (64) |
| Engine Oil Drain Plug |
33 (45) |
| Engine Front & Rear Stiffeners |
| 8-mm Bolts |
18 (24) |
| 10-mm Bolts |
33 (44) |
| 12-mm Bolts |
42 (57) |
| Exhaust Manifold Bracket Bolt |
| 8-mm |
18 (24) |
| 10-mm |
33 (45) |
| Exhaust Manifold Cover 8-mm Bolts |
18 (24) |
| Exhaust Manifold-To-Cylinder Head Nuts |
23 (31) |
| Exhaust Pipe Bracket 8-mm Nuts |
12 (16) |
| Exhaust Pipe Flange 8-mm Bolts |
16 (22) |
| Exhaust Pipe-To-Manifold/TWC |
| D16Y5 & D16Y7 Engines |
25 (33) |
| D16Y8 & B16A2 Engines |
40 (54) |
| Flywheel Bolts (M/T) |
87 (118) |
| Fuel Filter Banjo Bolt |
25 (34) |
| Generator Adjustment Lock Bolt |
18 (24) |
| Generator Bracket-To-Engine Bolts |
33 (45) |
| Heated Oxygen Sensor (HO2S) |
33 (45) |
| Inspection Hole Sealing Bolt (VTEC) |
15 (20) |
| Intake Air Control (IAC) Valve Bolts |
| D16Y5 Engine |
16 (22) |
| D16Y8 Engine |
18 (24) |
| Idler Pulley Bracket Bolt |
| DOHC |
33 (44) |
| SOHC |
18 (24) |
| Intake Manifold Bracket 8-mm Bolts |
18 (24) |
| Intake Manifold-To-Cylinder Head 8-mm Nuts |
17 (23) |
| Lost Motion Assembly Holder Bolts |
15 (20) |
| Main Bearing Cap Bolts |
| DOHC |
| First Step |
18 (25) |
| Second Step |
56 (76) |
| SOHC |
| First Step |
18 (25) |
| Second Step |
38 (51) |
| Oil Pressure Switch |
13 (18) |
| Oil Pump Relief Valve Sealing Bolt |
29 (39) |
| Power Steering Pump Bracket-To-Engine Bolts |
| 8-mm |
17 (23) |
| 10-mm |
33 (45) |
| Power Steering Pump Mounting 8-mm Bolts |
17 (23) |
| Shift Cable Cover 8-mm Bolts (A/T) |
16 (22) |
| Shift Cable Lock Nut (CVT) |
22 (30) |
| Shift Cable 6-mm Bolt |
10 (14) |
| Throttle Body 8-mm Nuts/Bolts |
16 (22) |
| Timing Belt Adjuster Bolt |
| DOHC |
40 (54) |
| SOHC |
33 (45) |
| Transaxle Extension Rod (M/T) |
16 (22) |
| Transaxle Oil Drain Plug (A/T & CVT) |
36 (49) |
| Transaxle Oil Drain Plug (M/T) |
29 (39) |
| Transaxle Oil Filler Plug (M/T) |
33 (45) |
| Transaxle-To-Engine Block Bolts |
43 (58) |
| Valve Adjustment Lock Nuts |
| D16Y7 |
13 (18) |
| D16Y5, D16Y8 & B16A2 |
15 (20) |
| INCH Lbs. (N.m) |
| Camshaft Holder Bolts |
| DOHC (6-mm Bolts) |
89 (10) |
| SOHC (6-mm Bolts) |
104 (12) |
| Catalytic Converter Cover Bolts |
96 (11) |
| Clutch Slave Cylinder Line Bracket |
| 6-mm Bolts |
84-104 (9-12) |
| Crankshaft Position (CKP) Sensor Bolt |
104 (12) |
| Crankshaft Rear Oil Seal Retainer Bolts |
96 (11) |
| Crankshaft Speed Fluctuation (CKF) Sensor |
104 (12) |
| EGR Chamber Bolts |
104 (12) |
| EVAP Purge Control Solenoid Valve Bolts |
52 (6) |
| Fast Idle Thermo Valve |
96 (11) |
| Flywheel Cover Nuts |
104 (12) |
| Fuel Filter Service Bolt |
104 (12) |
| Intake Air Temperature (IAT) Sensor Bolts |
52 (6) |
| Manifold Absolute Pressure (MAP) Sensor |
17 (2) |
| Oil Breather Chamber Bolts |
96 (11) |
| Oil Pan Baffle Plate 6-mm Bolts |
96 (11) |
| Oil Pan 6-mm Nuts/Bolts |
104 (12) |
| Oil Pump Cover Screws |
60 (7) |
| Oil Pump Screen Bolts |
96 (11) |
| Oil Pump 6-mm Bolts |
96 (11) |
| PCM Harness Connector Nuts |
96 (11) |
| Splash Shield |
89 (10) |
| Thermostat Housing Bolt |
89 (10) |
| Timing Belt Cover Bolt |
89 (10) |
| Timing Belt Middle Cover Bolt (DOHC) |
89 (10) |
| Timing Belt Lower Cover Bolt (DOHC) |
89 (10) |
| Timing Bolt Back Plate Bolts |
104 (12) |
| Transaxle Ground Cable Bolt |
96 (11) |
| Valve Cover Nuts/Bolts |
89 (10) |
| VTEC Solenoid Valve Assembly Bolts |
104 (12) |
| Water Pump Bolts |
104 (12) |
