Component Tests: Actuators

  1. If testing passenger's door actuator, go to next step. If testing driver's door actuator, remove driver's door panel. Disconnect driver's door actuator 6-pin harness connector. Momentarily connect power and ground to driver's door actuator harness connector terminals. See Fig 1 . Driver's door should lock and unlock when voltage is applied to appropriate actuator harness connector terminals. If driver's door actuator performs as specified, driver's door actuator is okay. If driver's door actuator does not perform as specified, replace driver's door actuator.
  2. Remove appropriate passenger door panel. Disconnect passenger's door actuator 2-pin harness connector. Momentarily connect power and ground to passenger's door actuator harness connector terminals. See Fig 2 . Passenger's door should lock and unlock when voltage is applied to appropriate passenger's door actuator harness connector terminals. If passenger's door actuator performs as specified, passenger's door actuator is okay. If passenger's door actuator does not perform as specified, replace driver's door actuator.

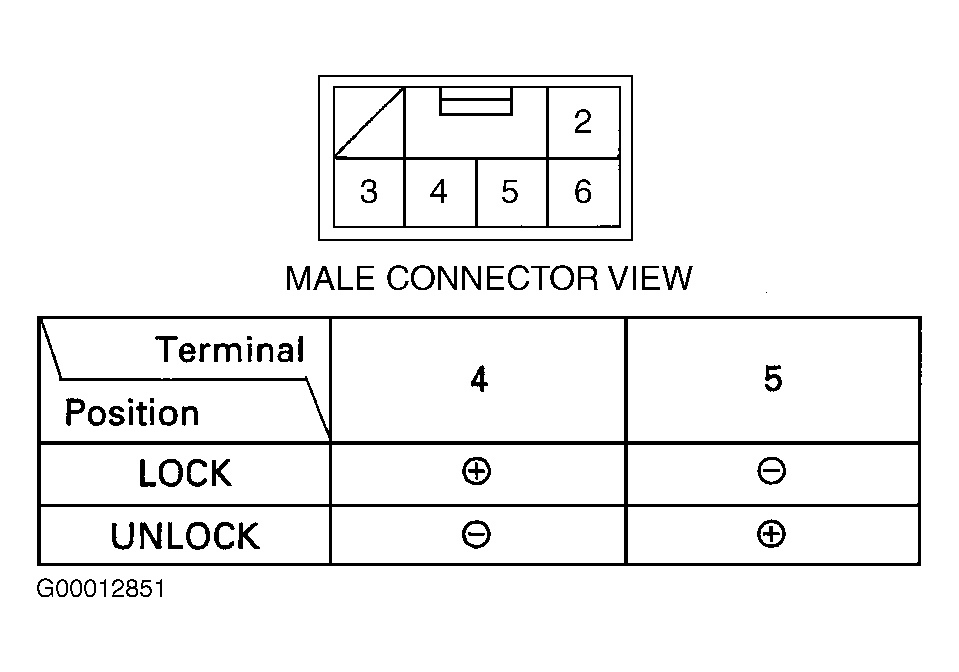

Fig 1: Testing Driver's Door Lock Actuator
G00012851Courtesy of AMERICAN HONDA MOTOR CO., INC.

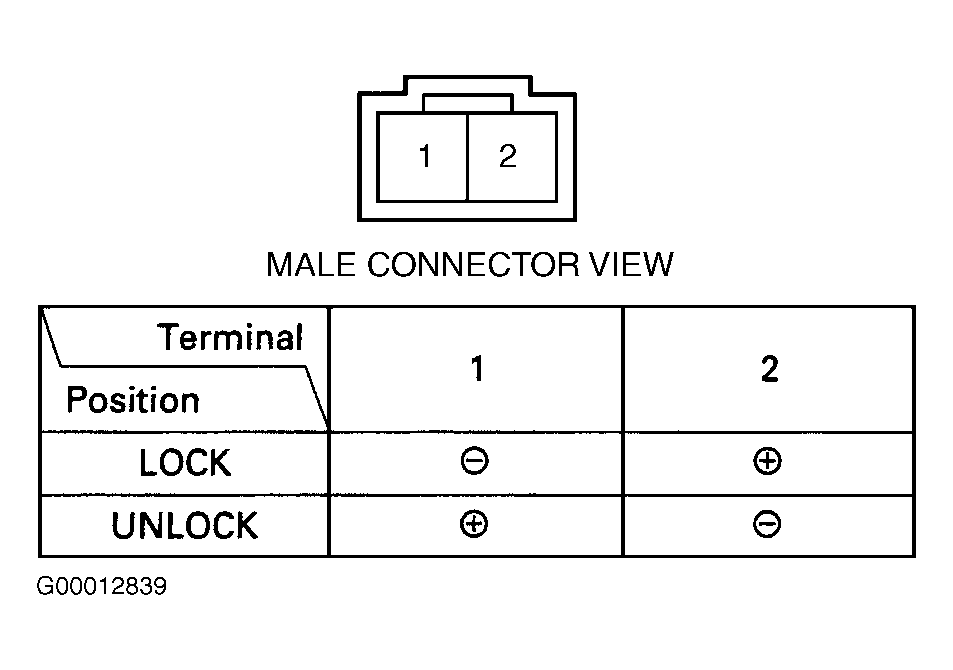

Fig 2: Testing Passenger's Door Lock Actuator
G00012839Courtesy of AMERICAN HONDA MOTOR CO., INC.
