Circuit Diagram - Sedan

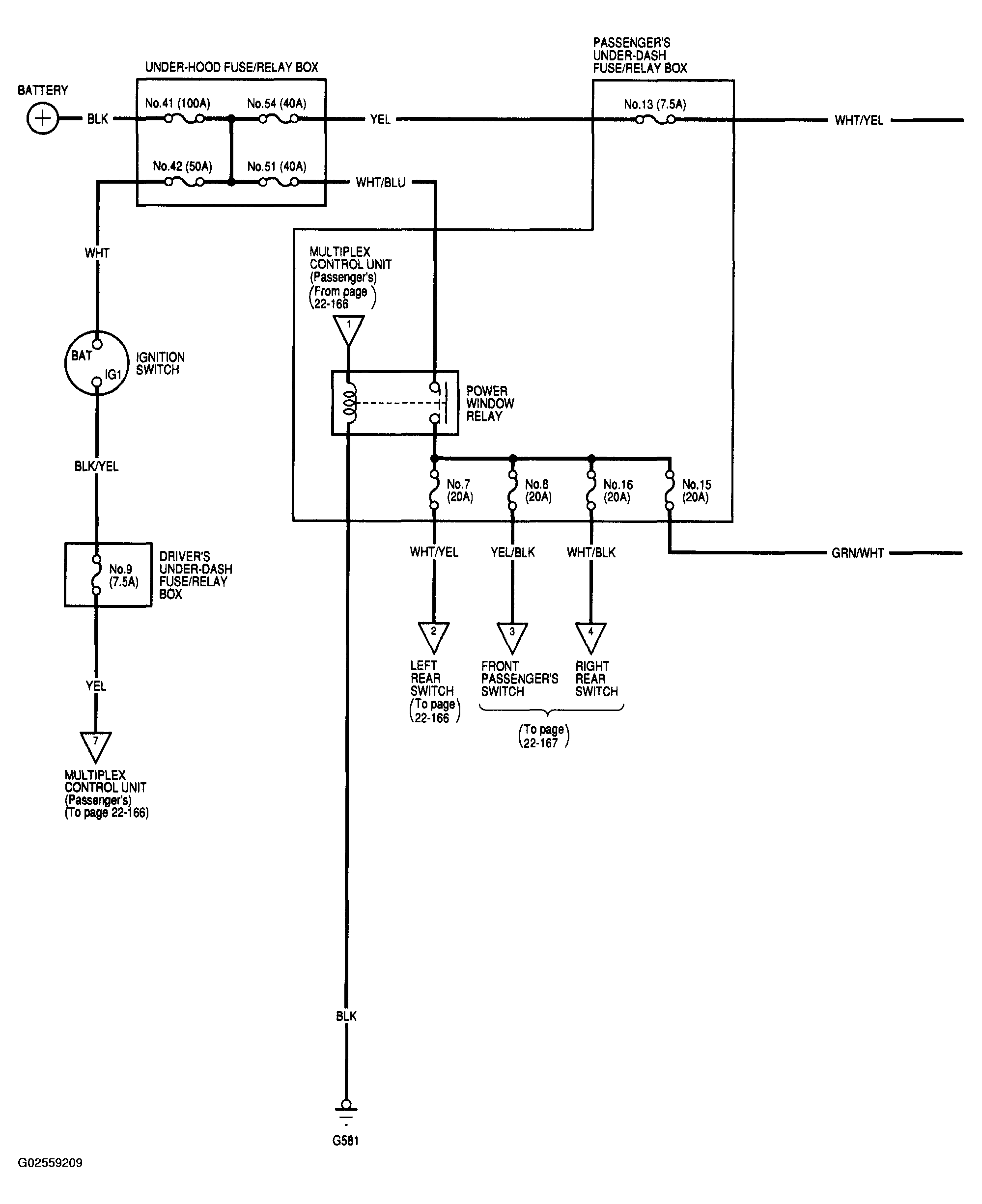

Fig 1: Power Window System Circuit Diagram - '98-99 Models (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

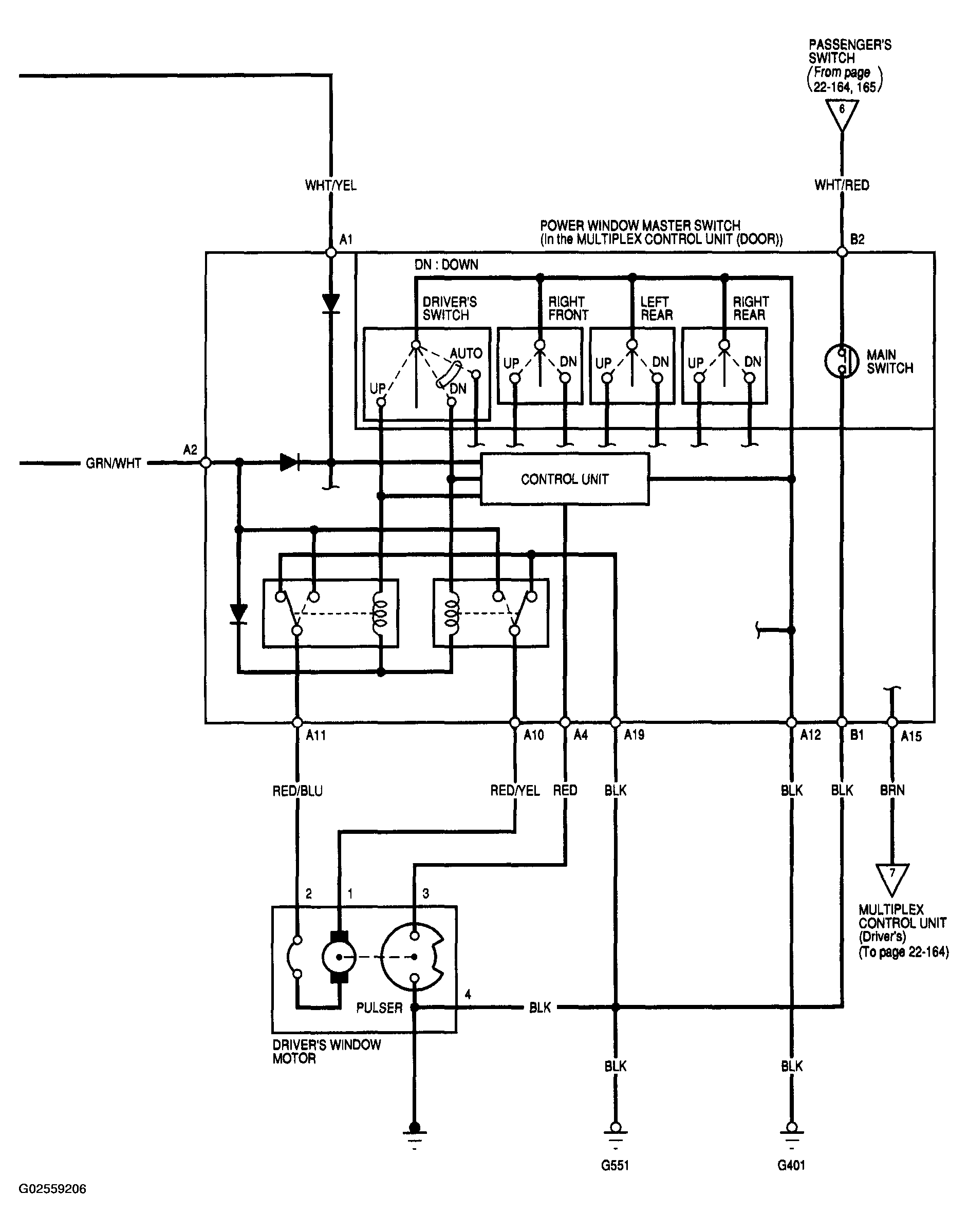

Fig 2: Power Window System Circuit Diagram - '98-99 Models (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

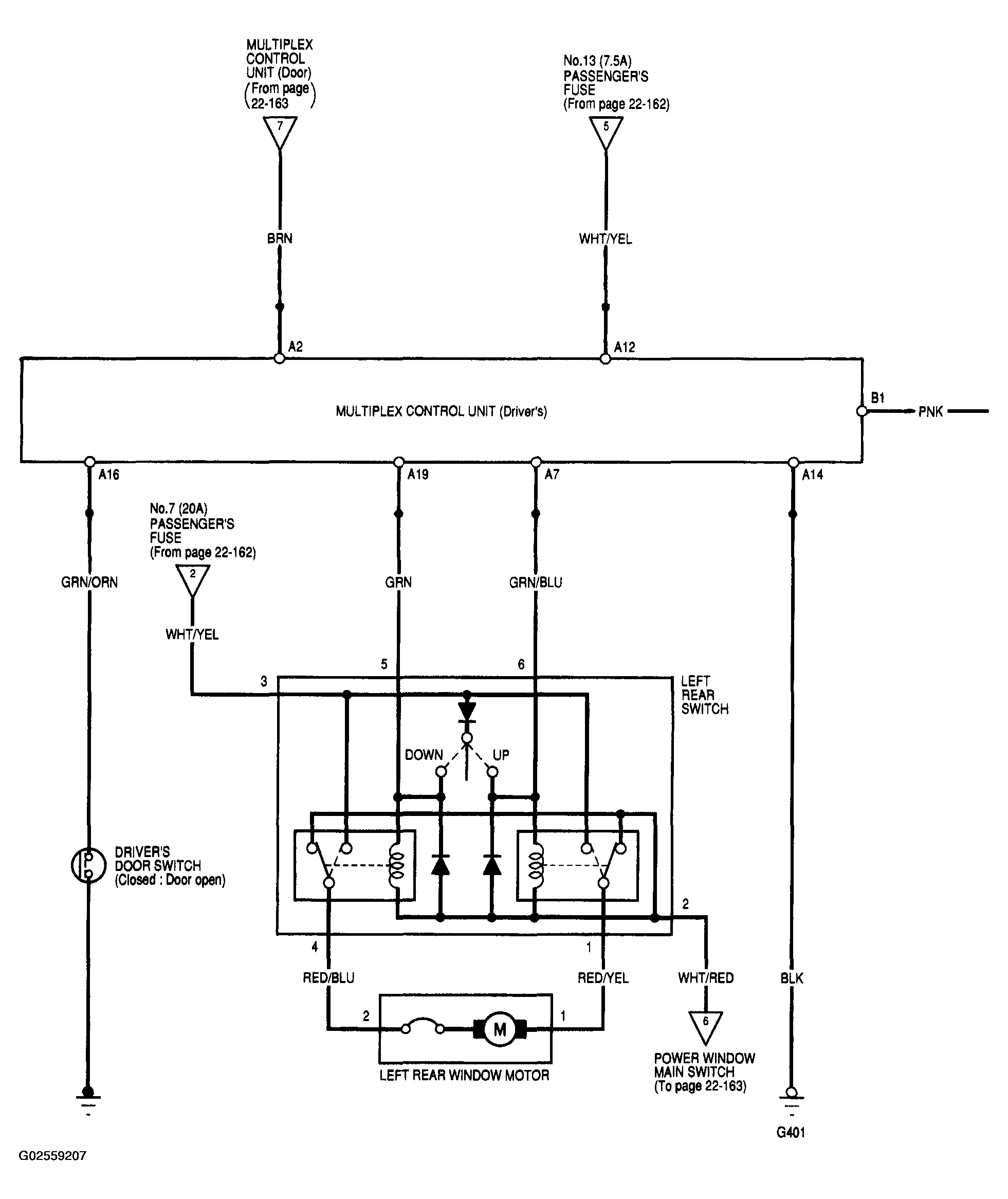

Fig 3: Power Window System Circuit Diagram - '98-99 Models (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

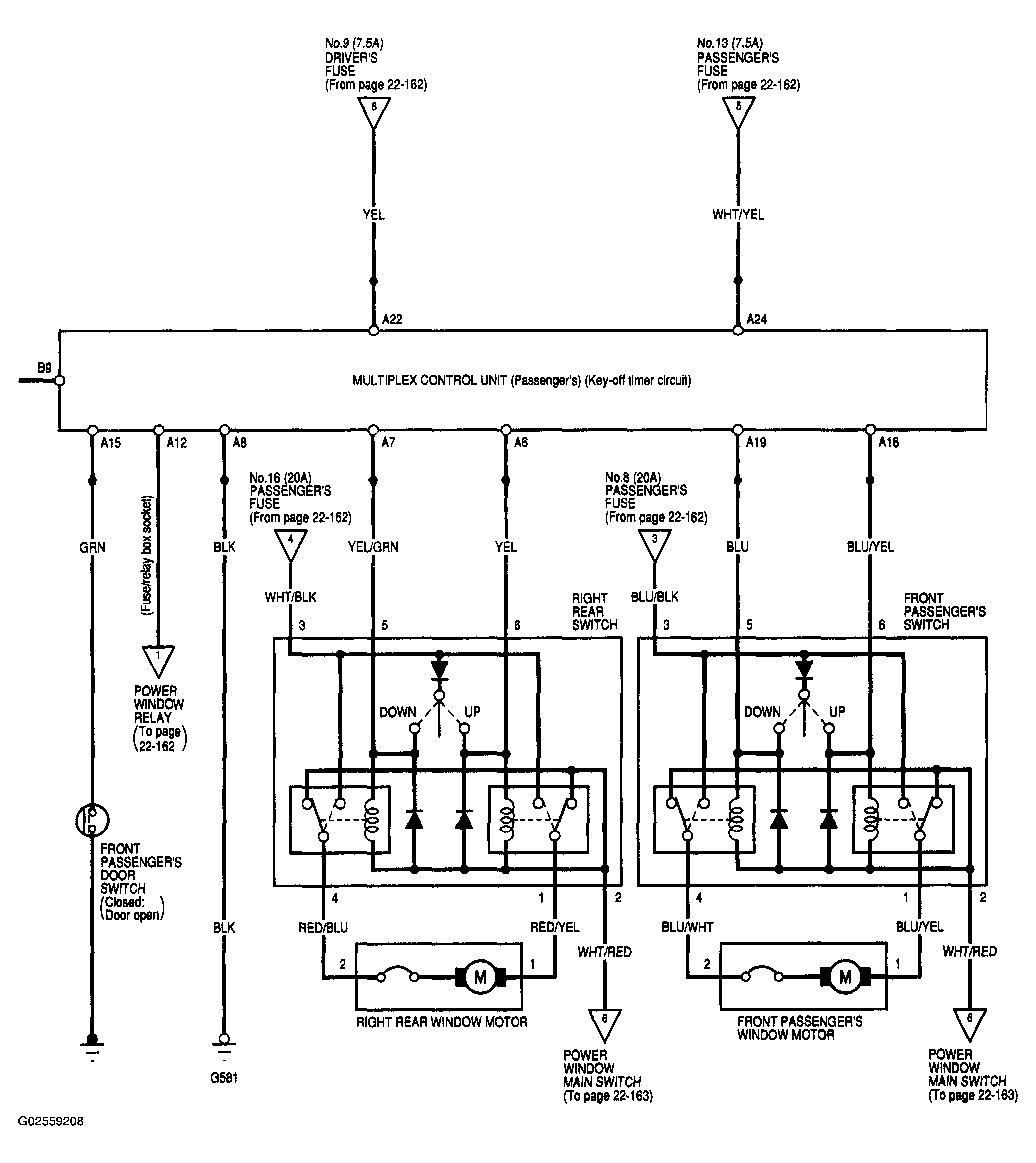

Fig 4: Power Window System Circuit Diagram - '98-99 Models (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

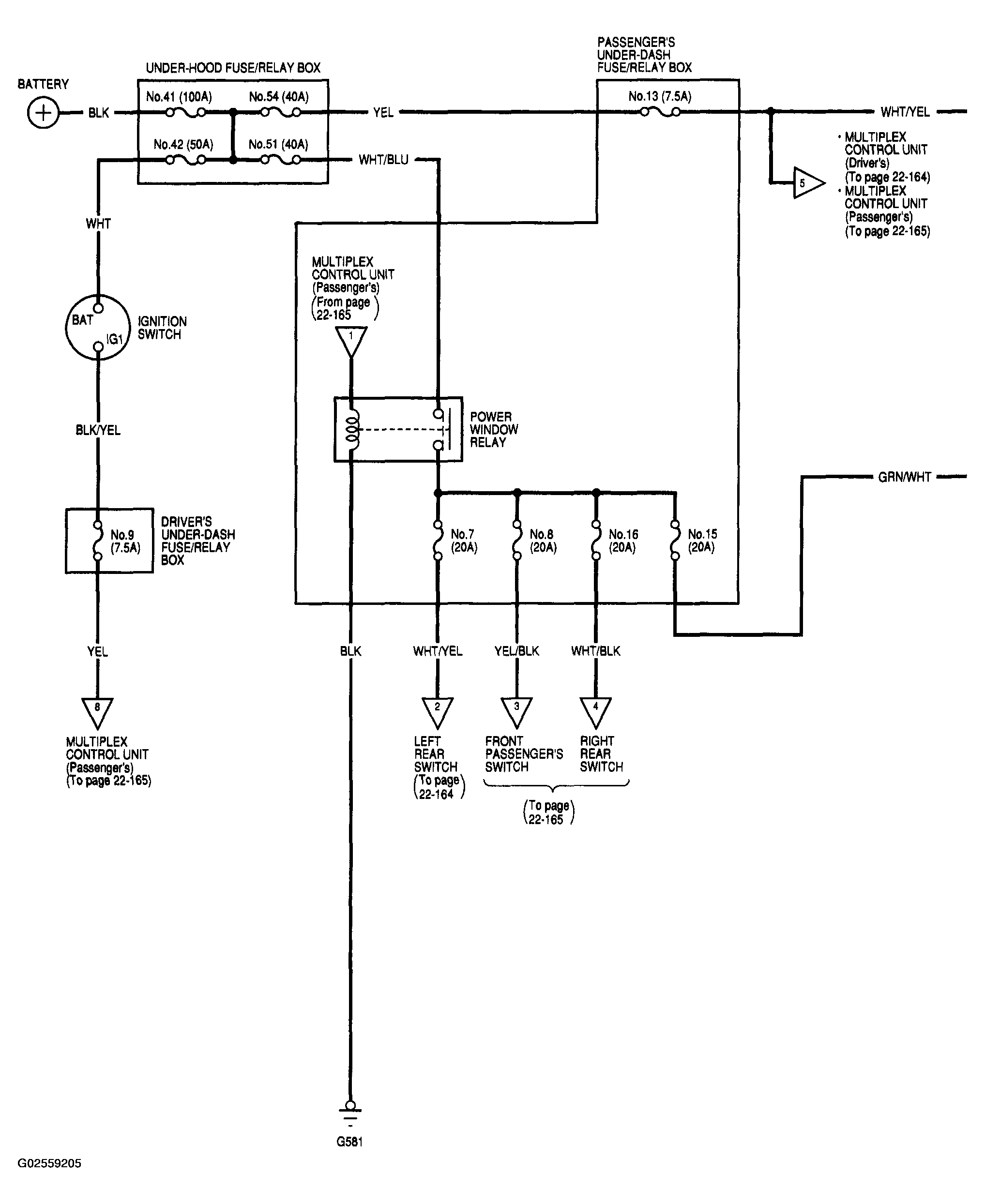

Fig 5: Power Window System Circuit Diagram - '00-02 Models (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

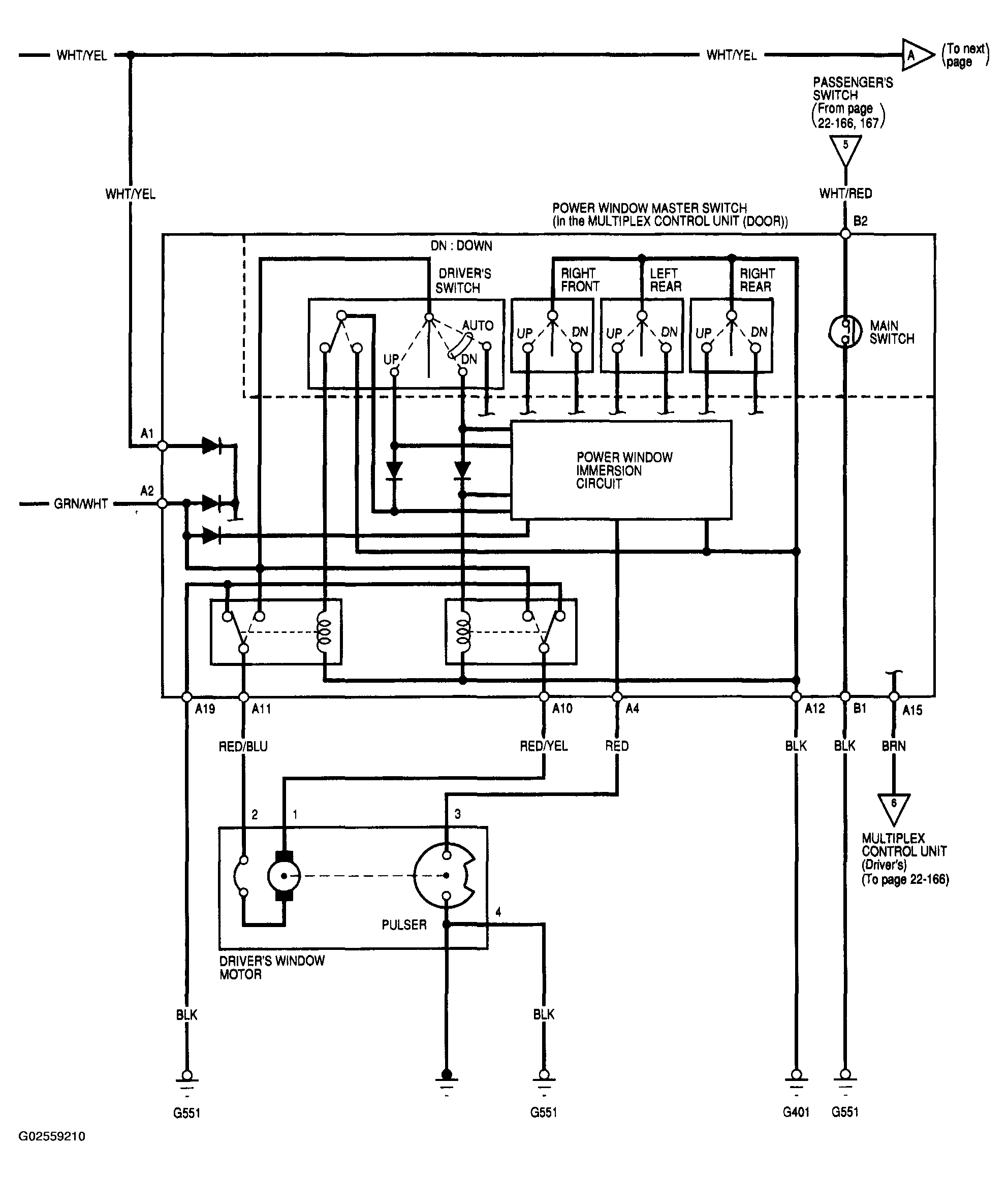

Fig 6: Power Window System Circuit Diagram - '00-02 Models (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

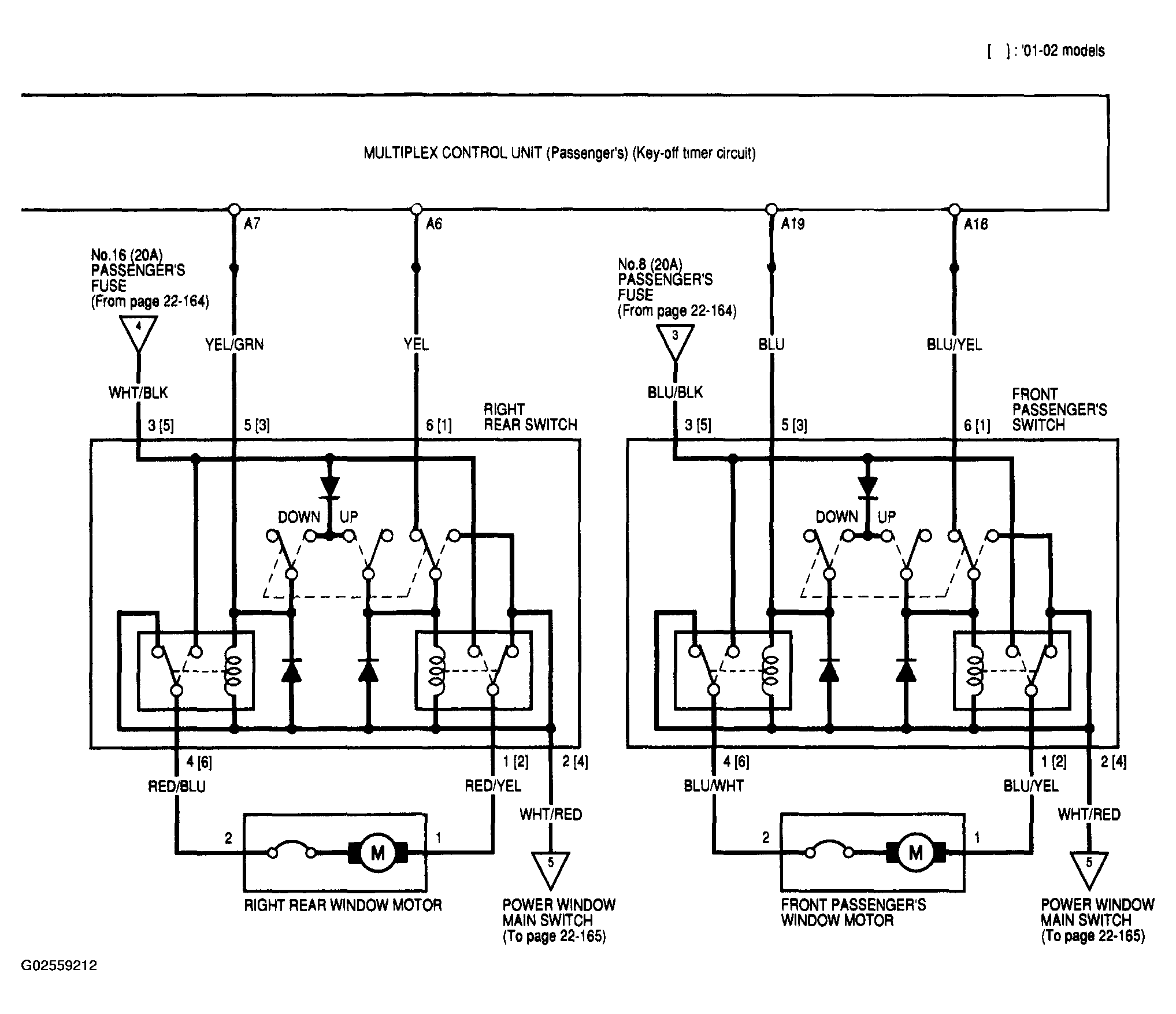

Fig 7: Power Window System Circuit Diagram - '00-02 Models (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

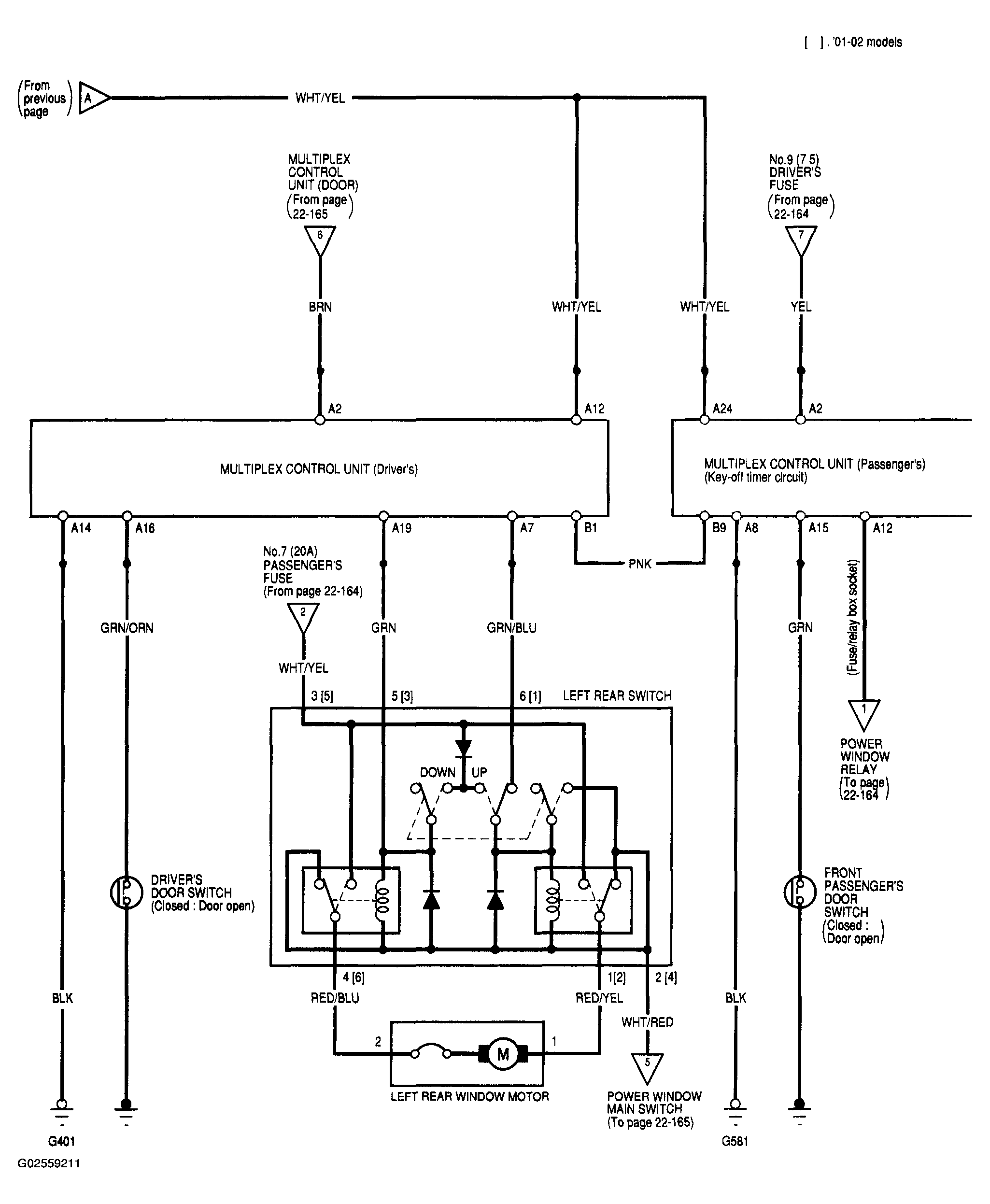

Fig 8: Power Window System Circuit Diagram - '00-02 Models (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
