Component Location Index - Sedan

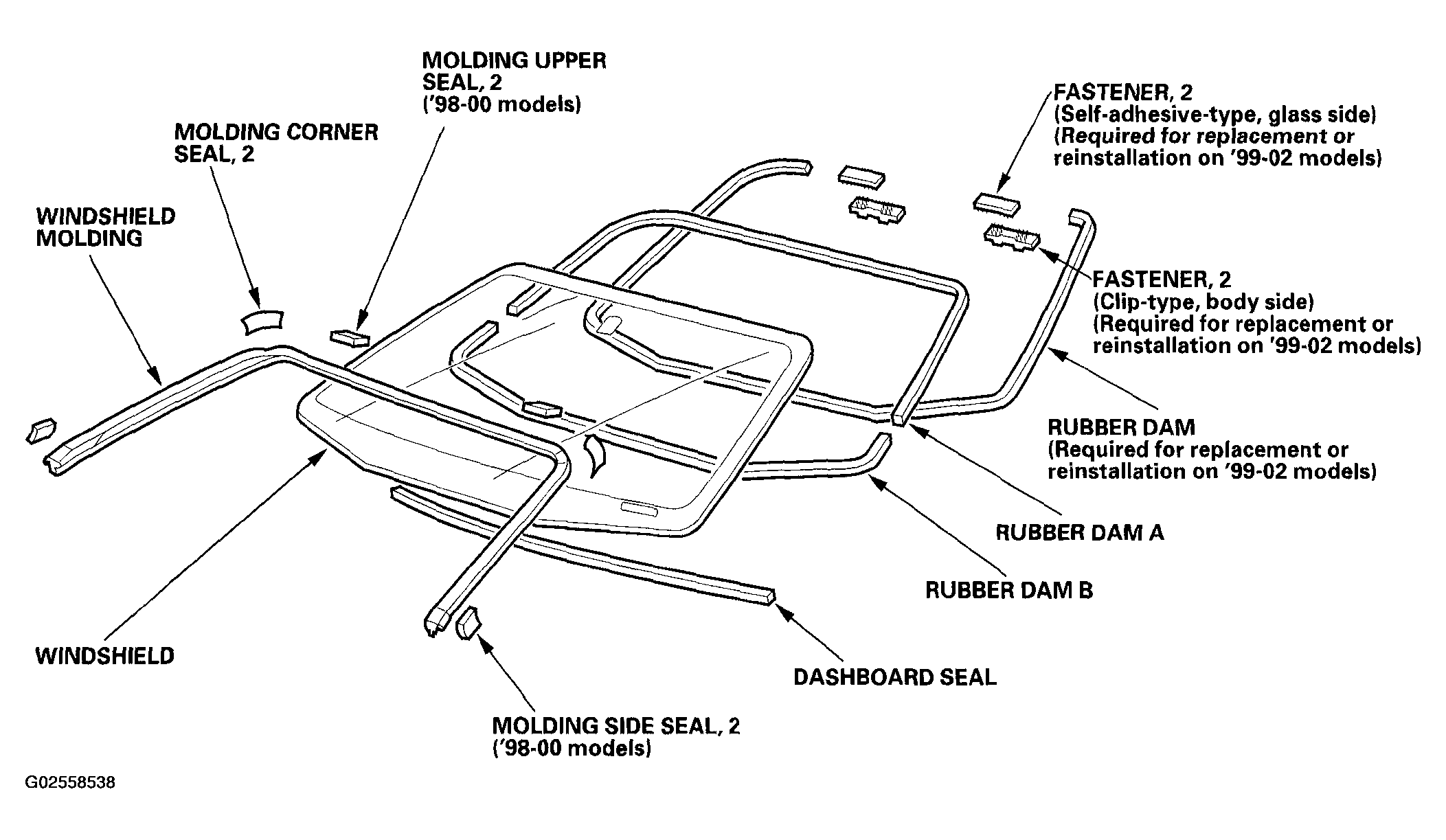

Fig 1: Locating Glass Components - Sedan (1 Of 2)
G02558538Courtesy of AMERICAN HONDA MOTOR CO., INC.

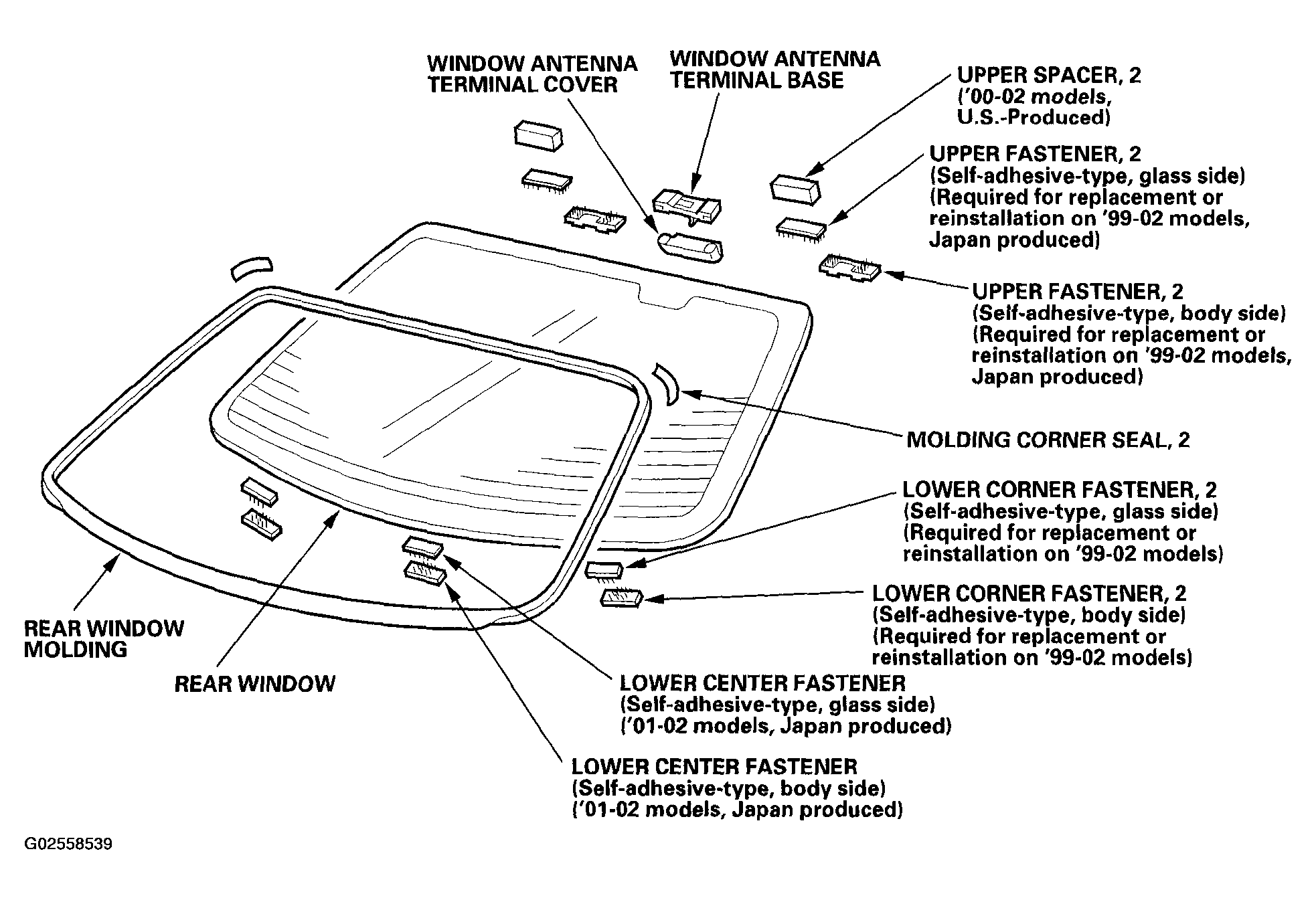

Fig 2: Locating Glass Components - Sedan (2 Of 2)
G02558539Courtesy of AMERICAN HONDA MOTOR CO., INC.
