Ignition Wire Inspection & Test
- Carefully remove the ignition wires by pulling on the rubber boots. Do not bend the wires; you might break them inside.

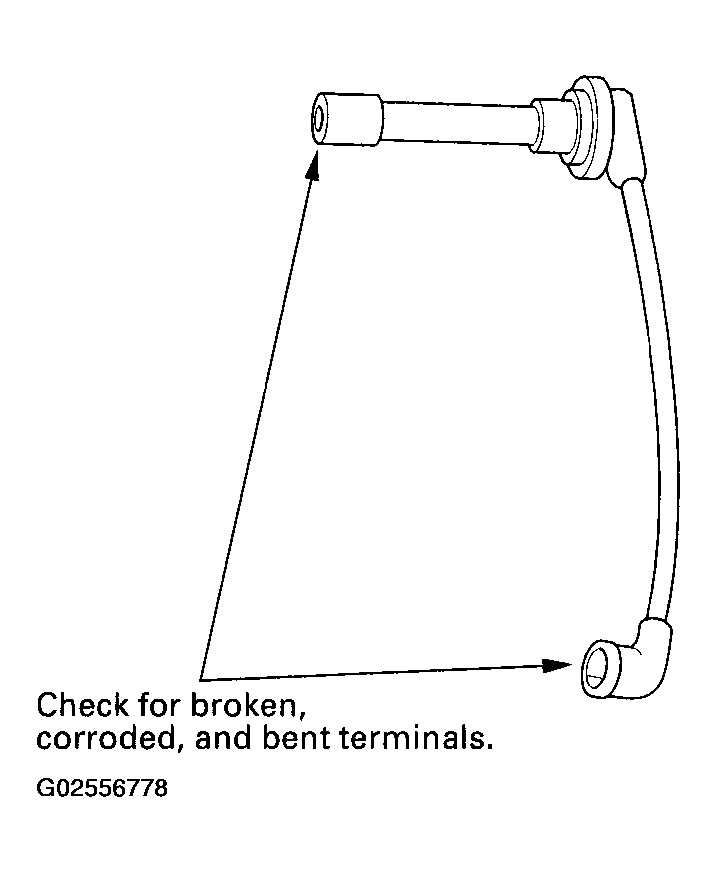

- Check the condition of the ignition wire terminals. If any terminal is corroded, clean it, and if it is broken or distorted, replace the ignition wire.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

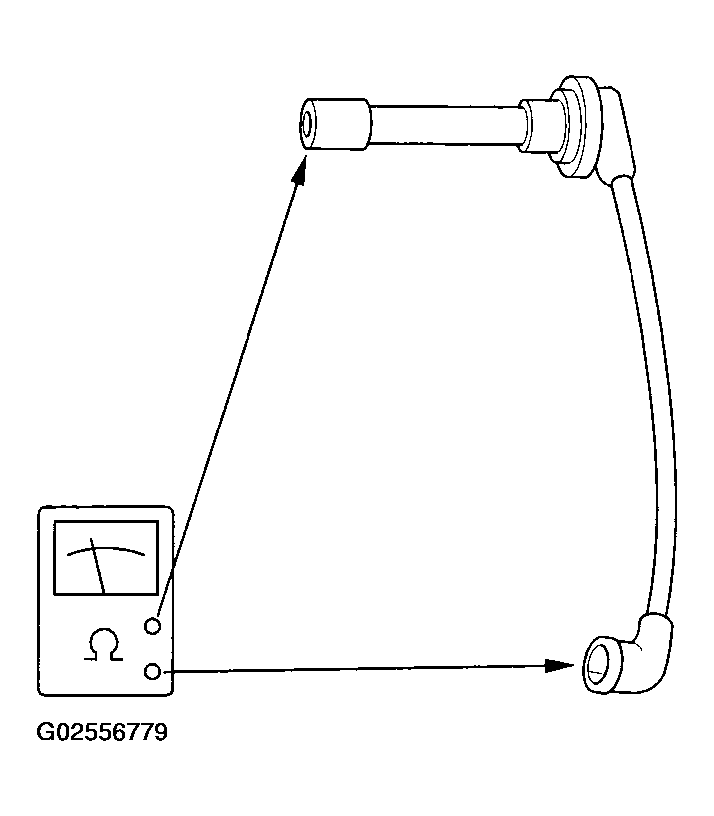

- Connect ohmmeter probes, and measure resistance while flexing and moving the wire. Do not bend the wires, you might break them inside.
- Ignition Wire Resistance:
25 k ohm Max. at 68°F (20°C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If resistance exceeds 25 k ohm, replace the ignition wire.
