Door Position Adjustment

NOTE: After installing the door, check for a flush fit with the body, then check for equal gaps between the front, rear, and bottom door edges and the body. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.

Place the vehicle on a firm, level surface when adjusting the doors.
Adjust at the hinges (A):
- Loosen the door mounting bolts (B) slightly, and move the door in or out until it's flush with the body.
- Remove the inner fender (see INNER FENDER REPLACEMENT ). With a shop towel (C) on the jack (D), slightly loosen the hinge mounting bolts (E), and move the door backward or forward, up or down as necessary to equalize the gaps.

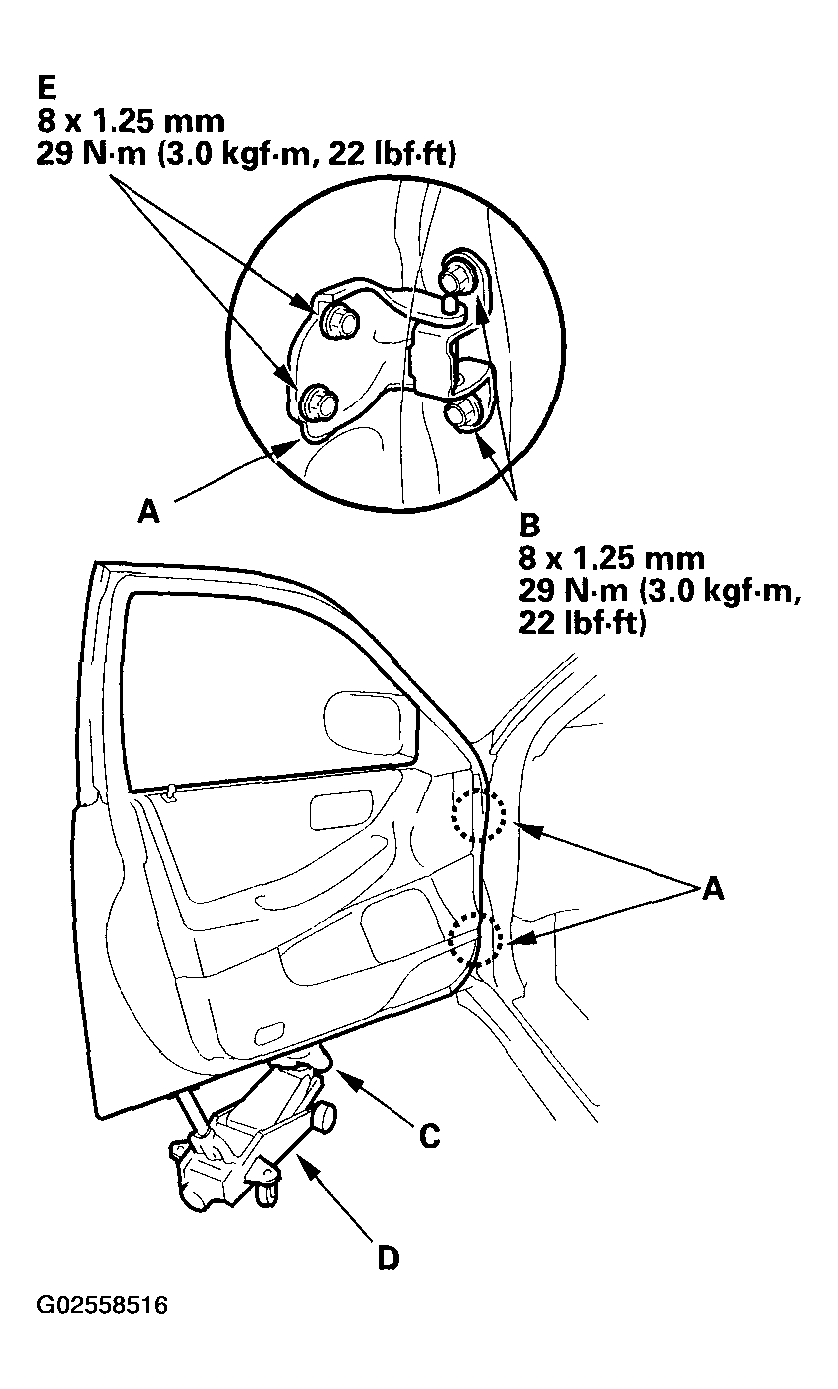

  Fig 1: Adjusting Hinges By Moving Door To Equalize Gaps
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check that the door and body edges are parallel. If necessary, adjust the door cushions (A) to make the rear of the doors flush with the body.

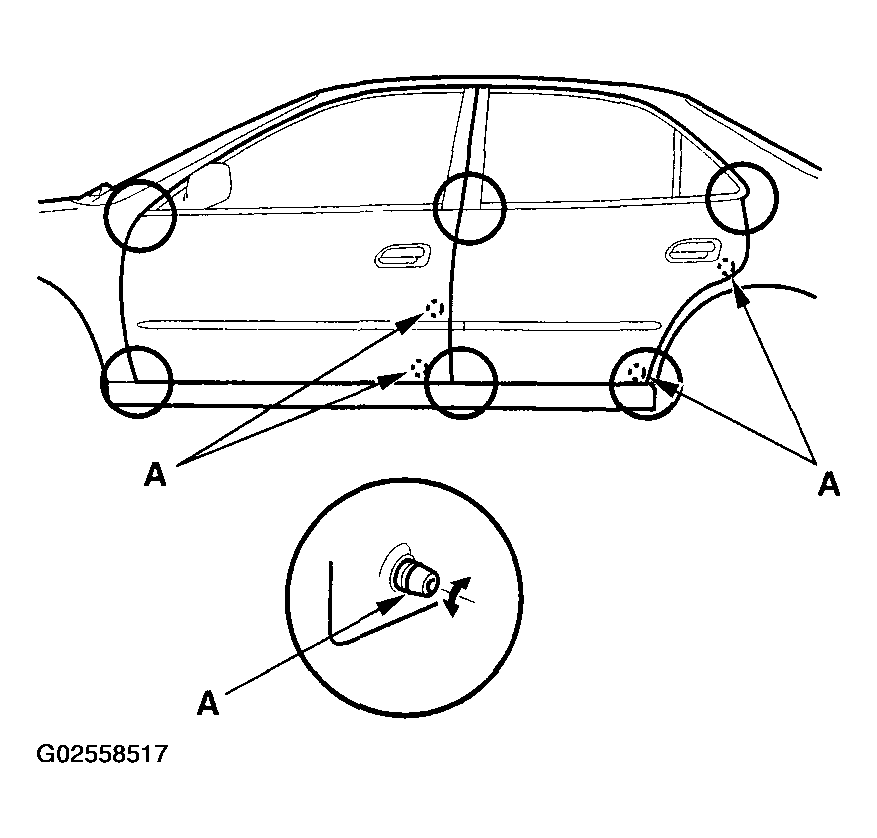

Fig 2: Adjusting Door Cushions To Flush Rear Doors With Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Grease the pivot portions of the hinges indicated by the arrows.

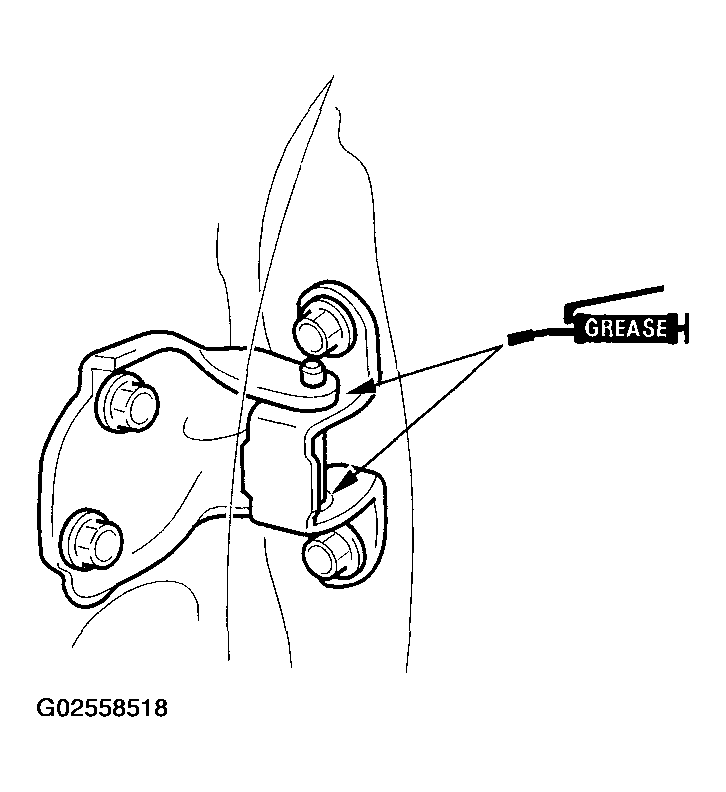

Fig 3: Greasing Pivot Portions Of Hinges
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply body paint to the hinge mounting bolts and around the hinges.
Check for water leaks (see step 7 on Front & Rear Door Glass Adjustment - Sedan ).
