Throttle Body Disassembly/Reassembly

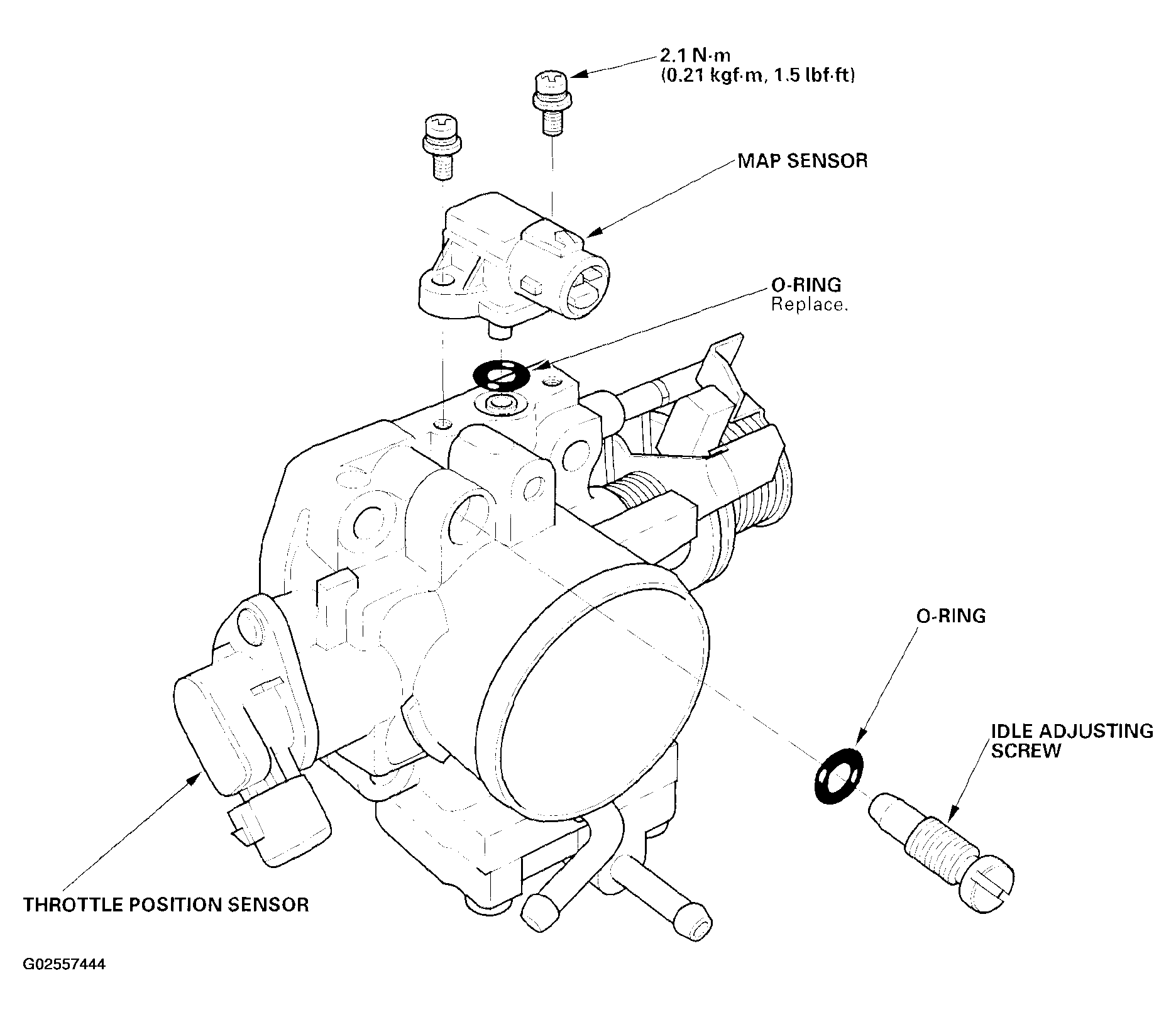

Fig 1: Disassembling/Reassembling Throttle Body

G02557444

Courtesy of AMERICAN HONDA MOTOR CO., INC.
