Interior Fuse Panel Identification: Notes

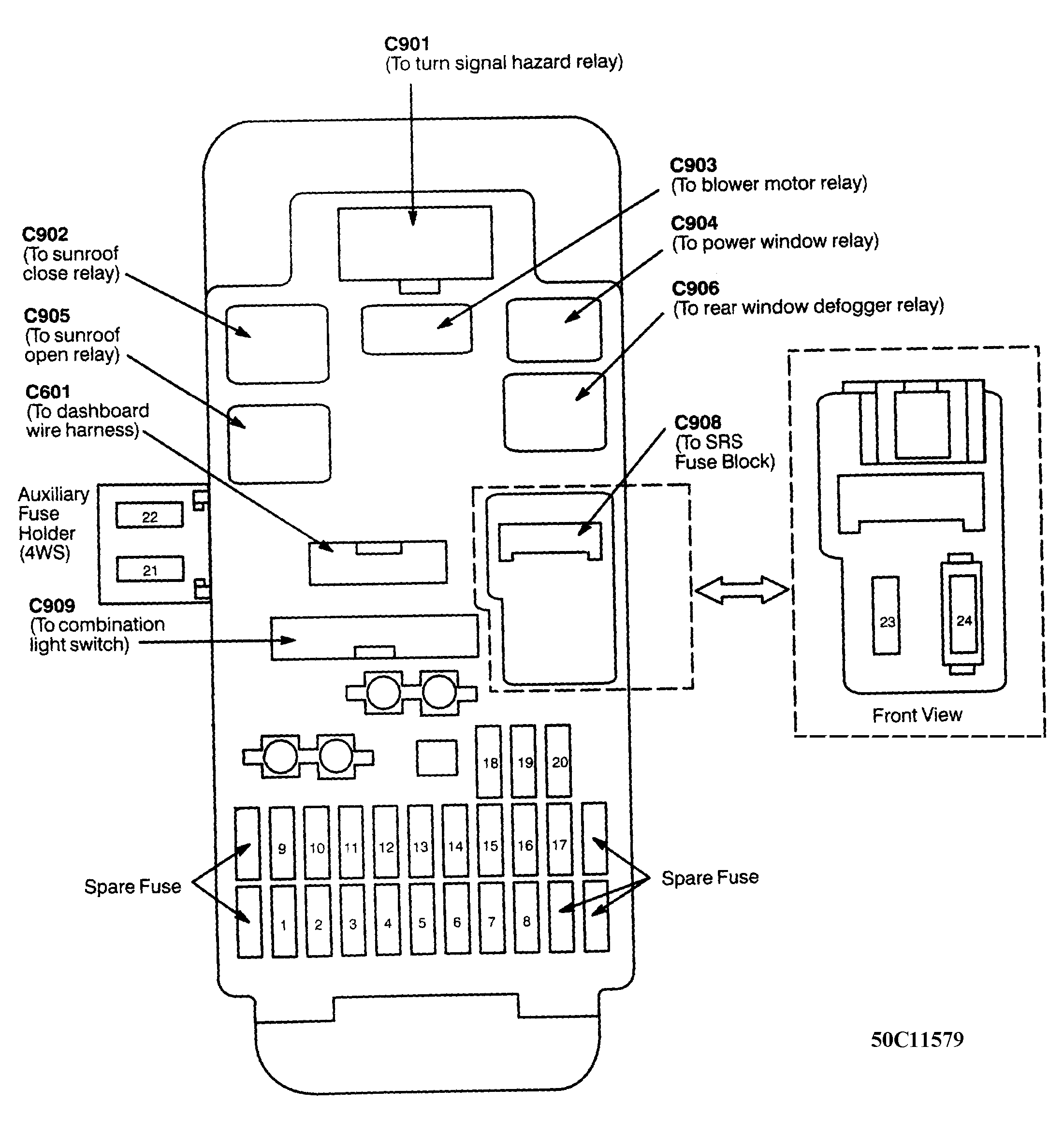

Fig 1: Underdash Fuse Panel Identification

G50C11579

Courtesy of AMERICAN HONDA MOTOR CO., INC.
