Diagnostic Trouble Codes Troubleshooting Index

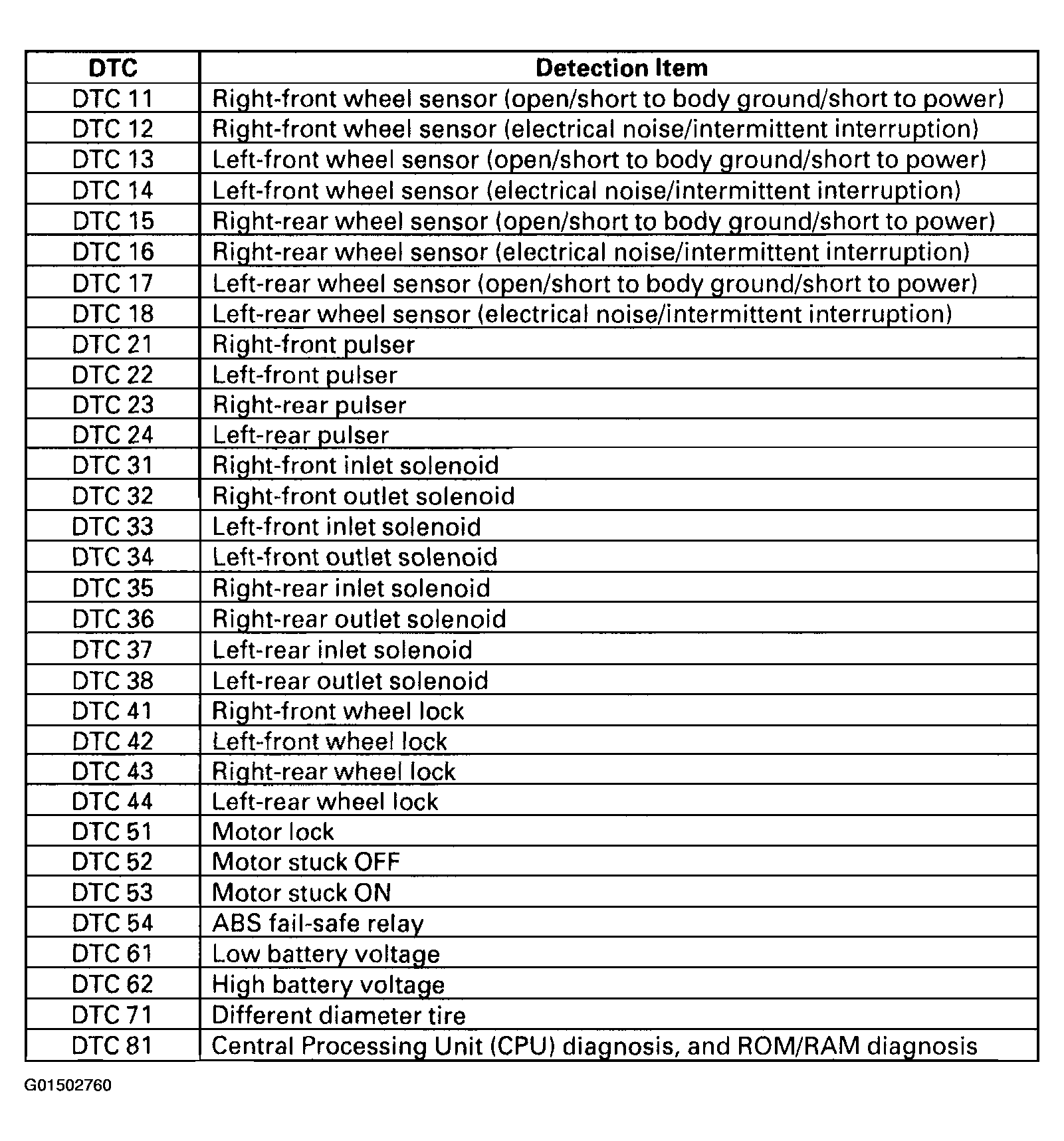

Fig 1: ABS DTCs Troubleshooting Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

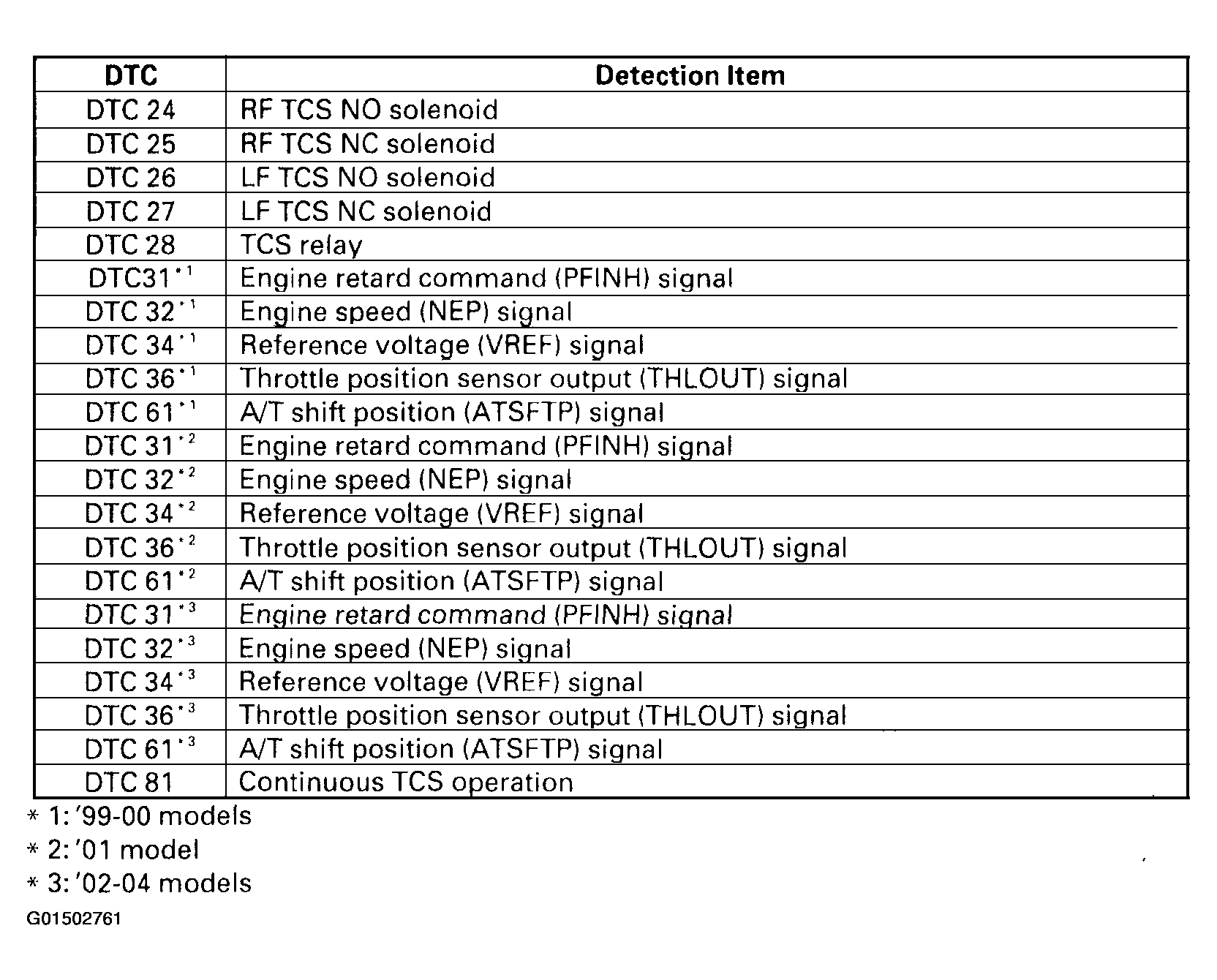

Fig 2: TCS DTCs Troubleshooting Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
