A/C Diode

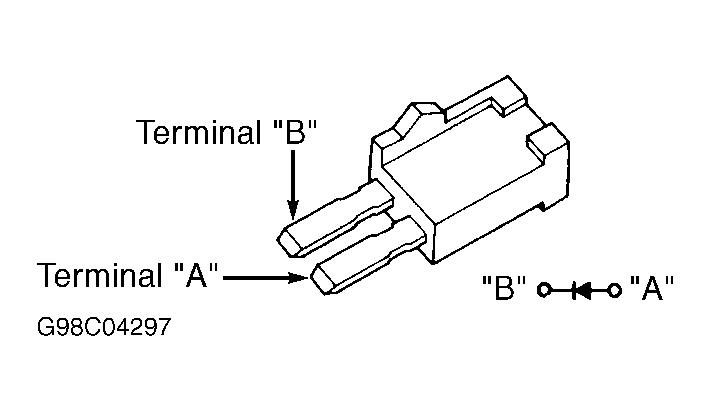

Remove A/C diode. Check for continuity between terminals "A" and "B" in both directions (both polarities). See Fig 1 . Continuity should be present in one direction only. If continuity is not as specified, replace A/C diode.
