Special Tools

WARNING: This page is about a different car, the 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

To avoid accidental air bag deployment when testing or working around SRS, use recommended tools. See RECOMMENDED TOOLS table.

RECOMMENDED TOOLS

Tool Name

Tool Number

Backprobe Adapter, 17 mm ⁽¹⁾

07TAZ-001020A

Deployment Tool ⁽²⁾

07HAZ-SG00400

SCS Service Connector ⁽²⁾

07PAZ-0010100

SRS Inflator Simulator ⁽³⁾

07SAZ-TB4011A

SRS Simulator Lead "C" ⁽³⁾

07TAZ-SZ5011A

SRS Service Connector (2 ohm) ⁽⁴⁾

07TAZ-SZ50200

⁽¹⁾	Use with stacking patch cords from Backprobe Set (07SAZ-001000A).

⁽²⁾	Included in SRS Tool Set (07MAZ-SM5000B).

⁽³⁾	Use when SRS Service Connectors are not available.

⁽⁴⁾	If not available, use 07SAZ-TB4011A and 07TAZ-SZ5011A.

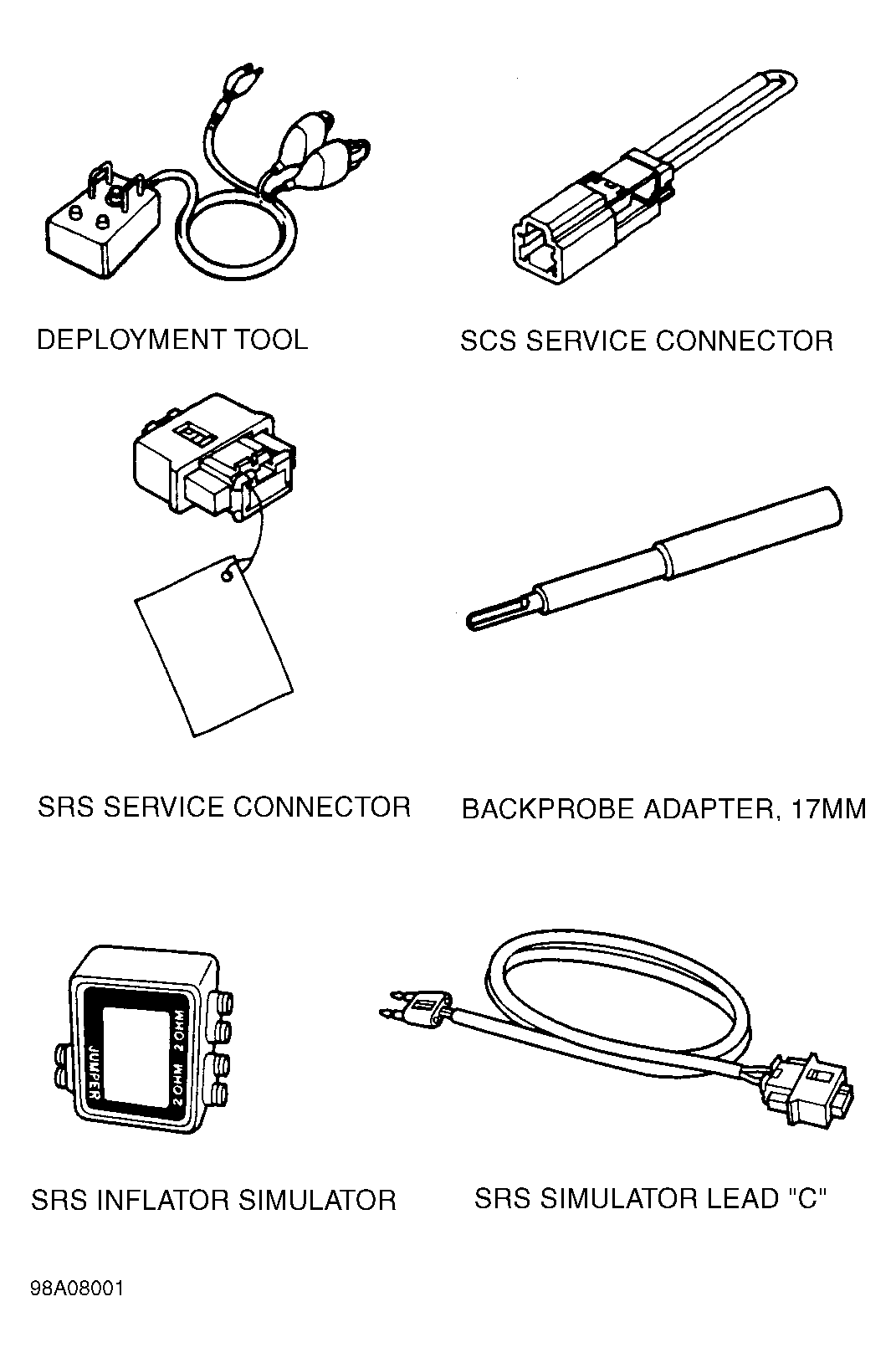

Fig 1: Identifying Special Tools

Courtesy of AMERICAN HONDA MOTOR CO., INC.
