Hazard Warning Switch Test

Remove center air vent trim panel. Remove retaining screw from switch. Remove warning hazard switch. Disconnect 6-pin switch harness connector. With hazard switch in specified position, check continuity between switch terminals. See Fig 1. If continuity is not as specified, replace hazard warning switch.

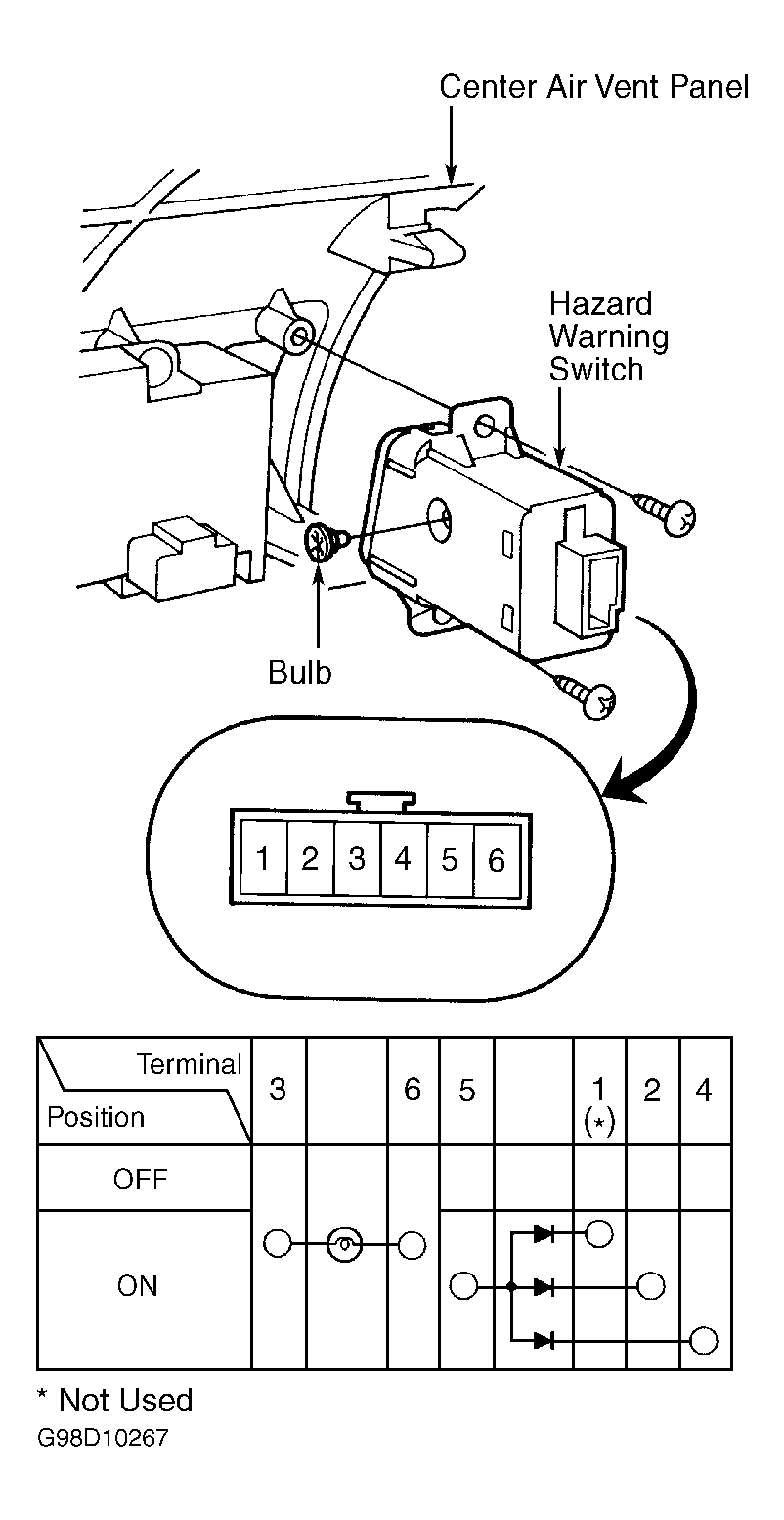

Fig 1: Testing Hazard Warning Switch
G98D10267Courtesy of AMERICAN HONDA MOTOR CO., INC.
