Sun Roof Switch
Carefully remove sun roof switch from instrument panel. See SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. See POWER SUN ROOF SWITCH CONTINUITY table. If continuity is not as specified, replace switch. See Figure , Figure , Figure or Figure .
POWER SUN ROOF SWITCH CONTINUITY
| Switch Position | Check Continuity Between Terminals | |
|---|---|---|

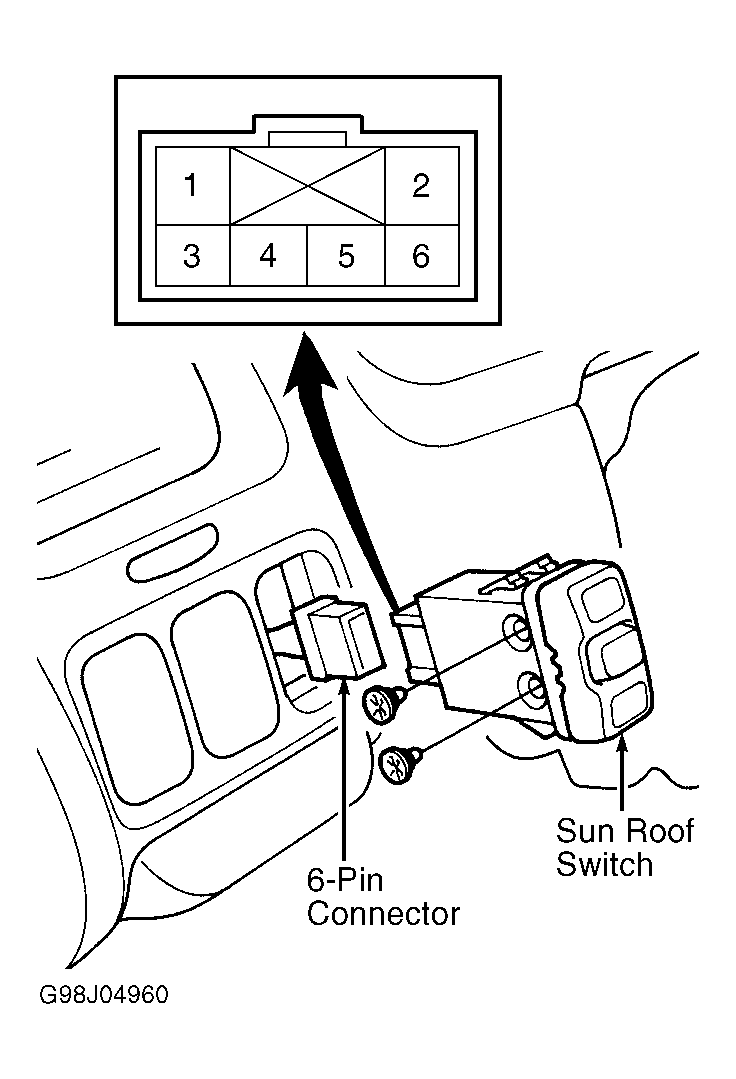

| Accord | ||
| Close | 1 & 3; 2 & 4 | |
| Tilt | 1 & 3; 2 & 5 | |
| Open | 1 & 3; 2 & 6 | |

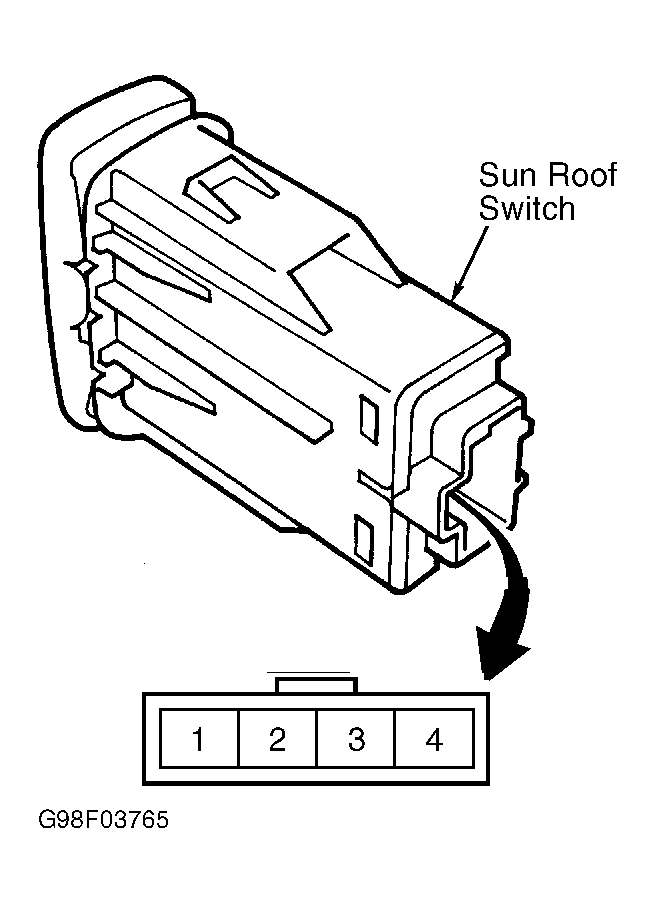

| Civic | ||
| Off | No Continuity | |
| Close | 3 & 4 | |
| Tilt | 2 & 4 | |
| Open | 1 & 4 | |

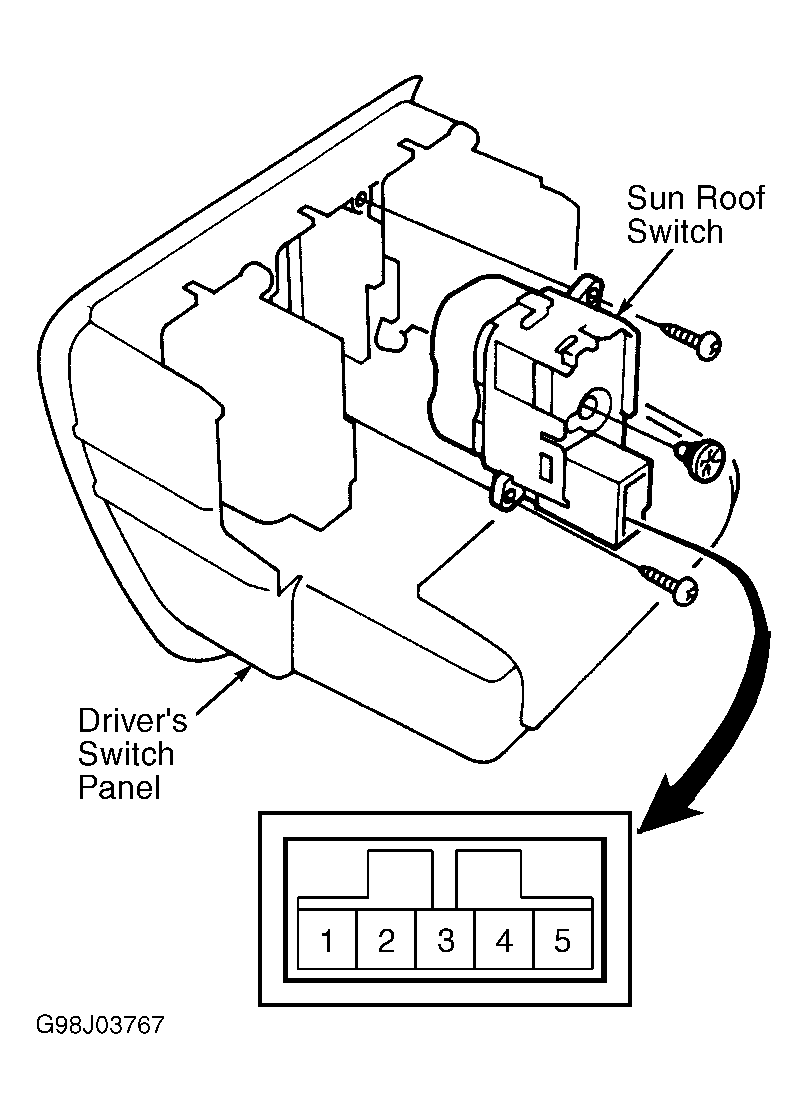

| Odyssey & Oasis | ||
| Off | 4 & 5 | |
| Close | 2 & 3; 4 & 5 | |
| Open | 1 & 3; 4 & 5 | |
| Prelude | ||
| Close | 1 & 3; 2 & 4 | |
| Tilt | 1 & 3; 2 & 5 | |
| Open | 1 & 3; 2 & 6 | |
