Clutch Switch

Disconnect 3-pin connector from clutch switch. Using a DVOM, check for continuity between clutch switch terminals No. 2 and 3. See Fig 1 . Continuity should exist. Depress clutch pedal and hold. Check for continuity between terminals No. 2 and 3. Continuity should not exist. If continuity is not as specified, check clutch pedal height. See CLUTCH PEDAL HEIGHT  under ADJUSTMENTS. If clutch pedal height is okay, replace clutch switch.

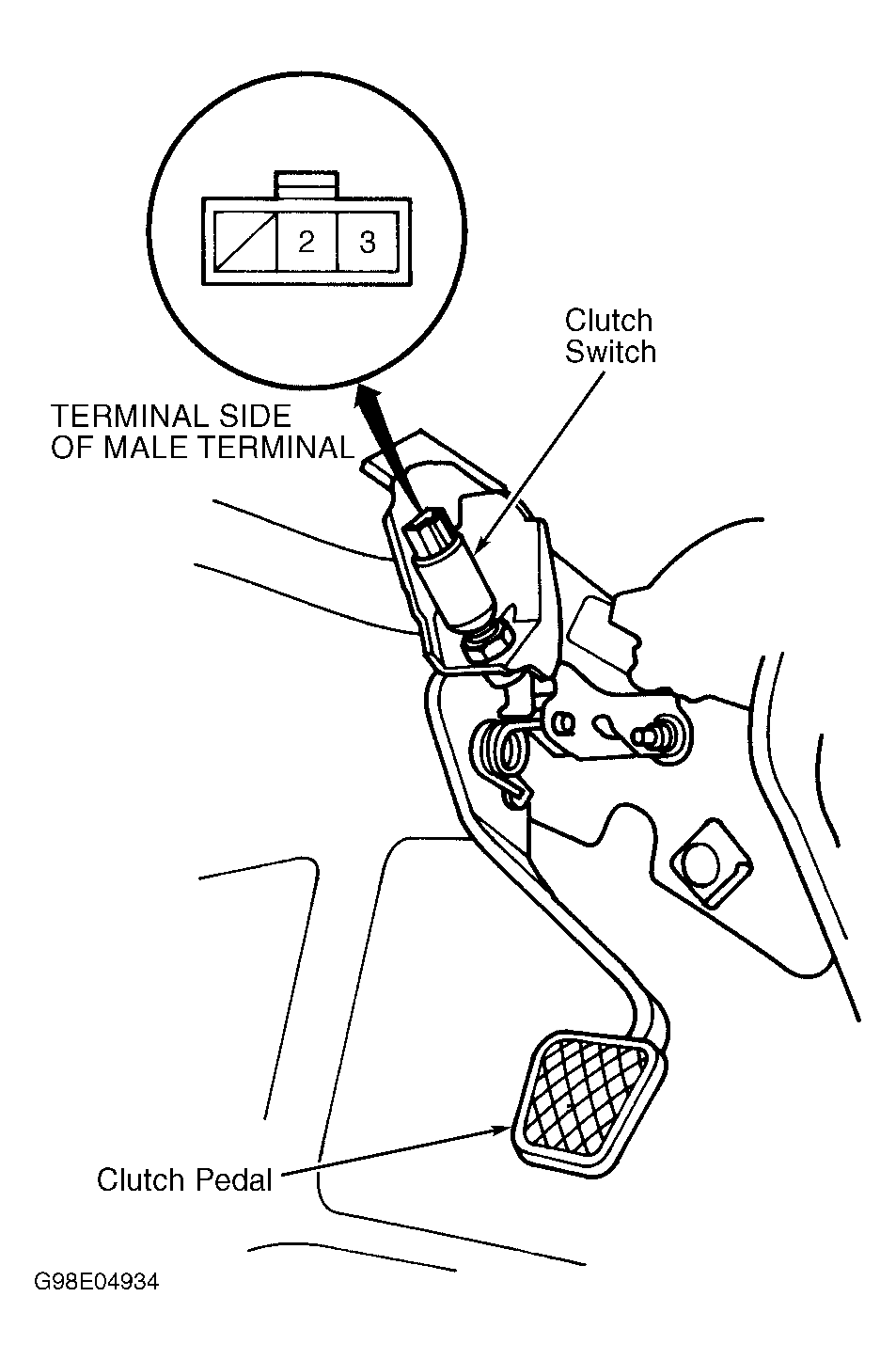

Fig 1: Identifying Terminals Of Clutch Switch
G98E04934Courtesy of AMERICAN HONDA MOTOR CO., INC.
