Service Manual Update: Fan Control Circuit (99-059)
WARNING: This page is about the Odyssey EX, which is a different variant/trim than selected.
Publication date: 1999-07-27Reference number: 99-059
SERVICE MANUAL UPDATE: FAN CONTROL CIRCUIT
TECHNICAL SERVICE BULLETIN
Reference Number(s): 99-059, Date of Issue:
July 27, 1999
| HONDA: | 1998 Odyssey |
| CATEGORY: | Heater/Air Conditioning |
| APPLIES TO: | All |
BACKGROUND
In section 22 of the 1998 Odyssey Service Manual, the fan control circuit diagram and the troubleshooting flowcharts show a fan control module. The 1995-97 Odyssey has a fan control module, but the circuit was redesigned and the module was eliminated in the 1998 Odyssey. The service manual does not reflect this redesign; it shows the 1995-97 circuit and troubleshooting information.
The Fan Circuit Diagram on page 63 of the 1998 Odyssey Electrical Troubleshooting Manual is the correct one.
CORRECTIVE ACTION

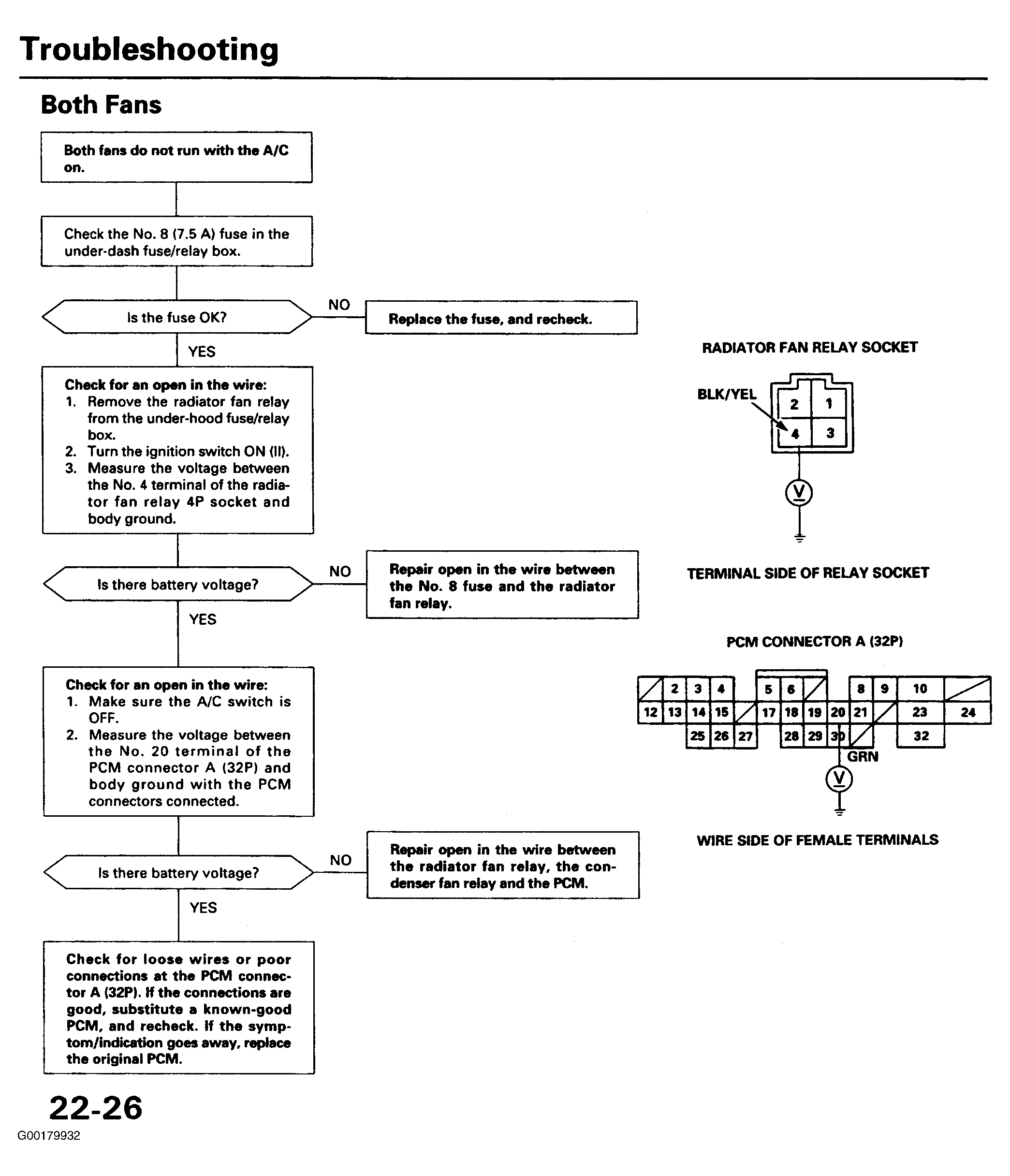

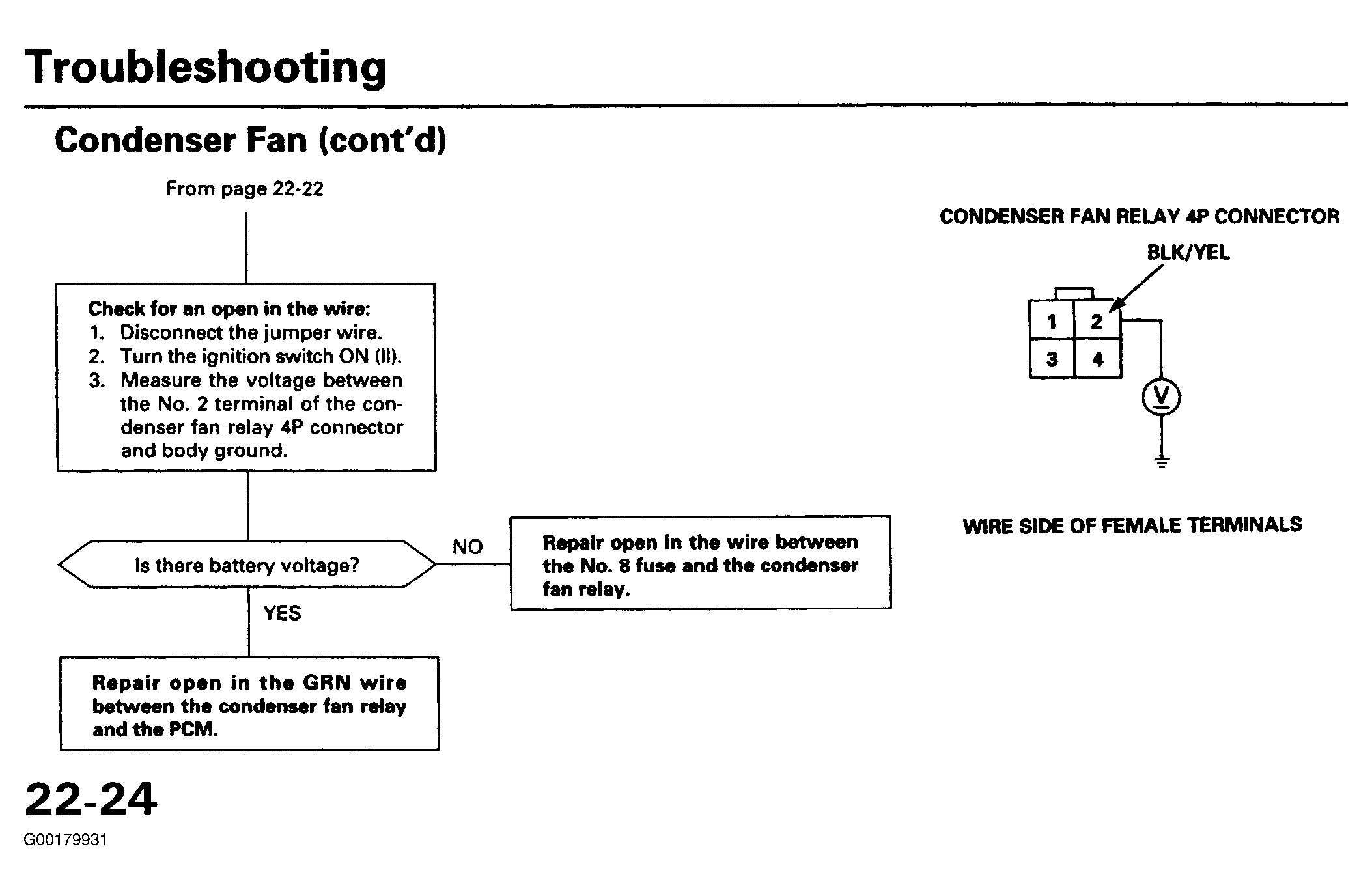

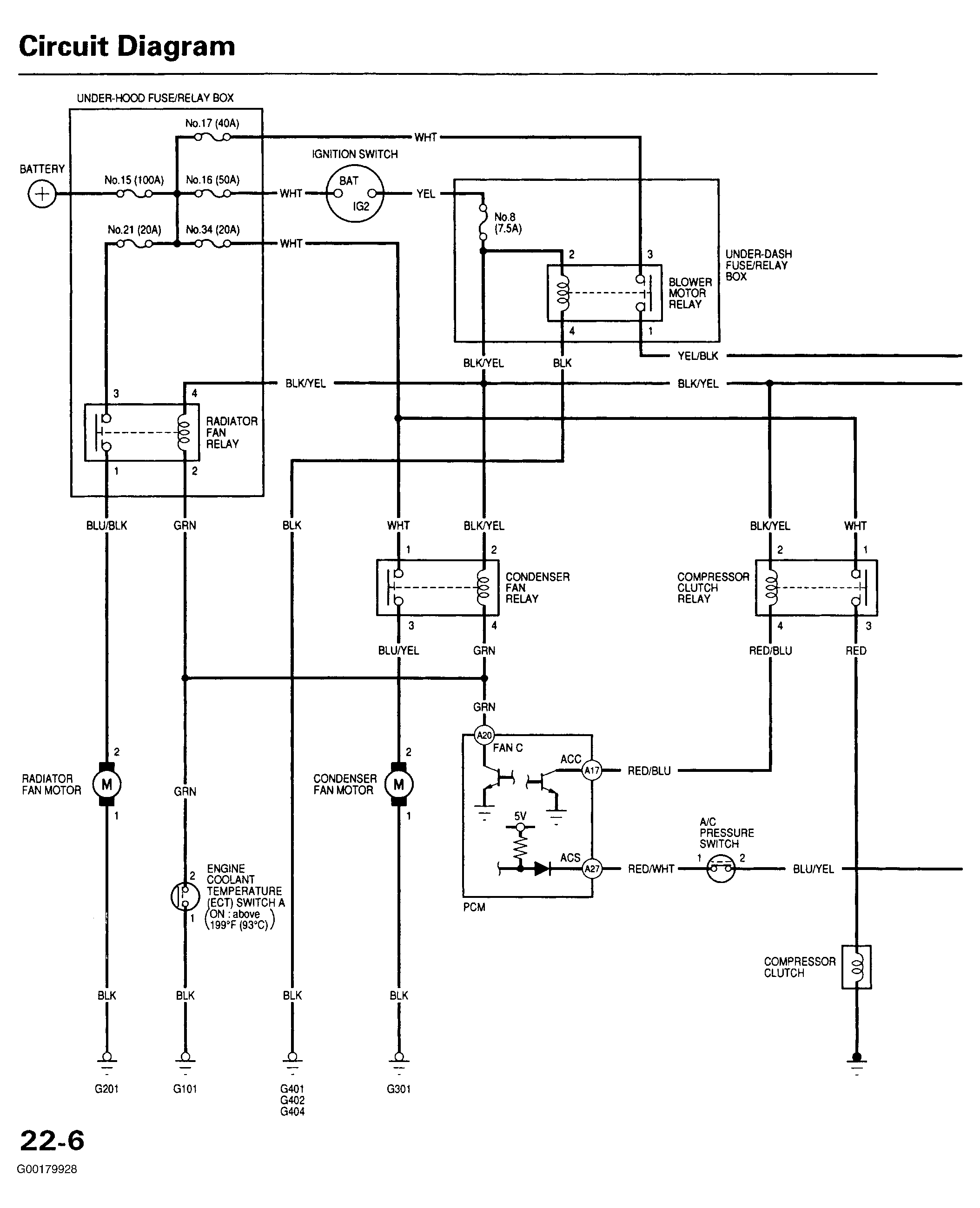

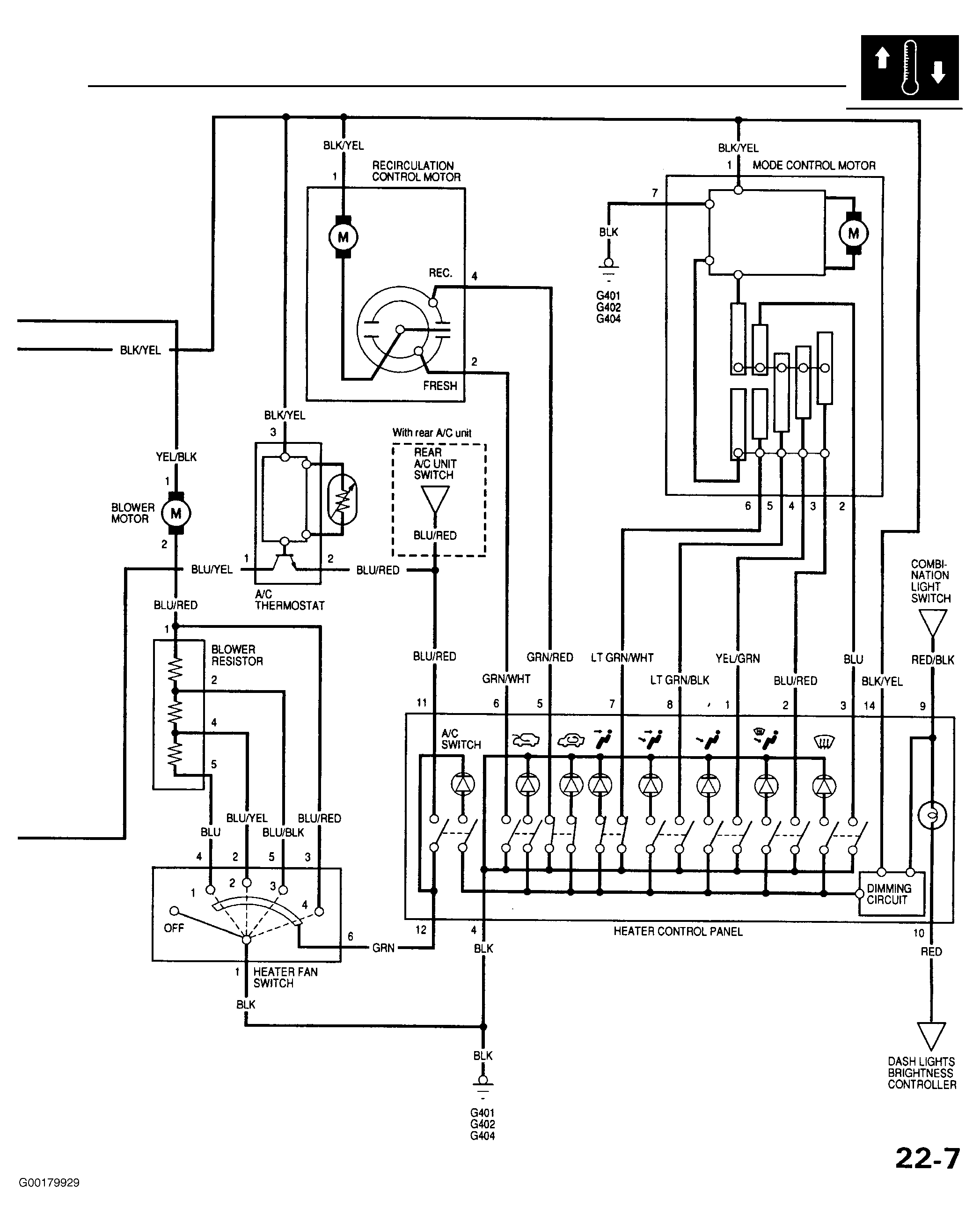

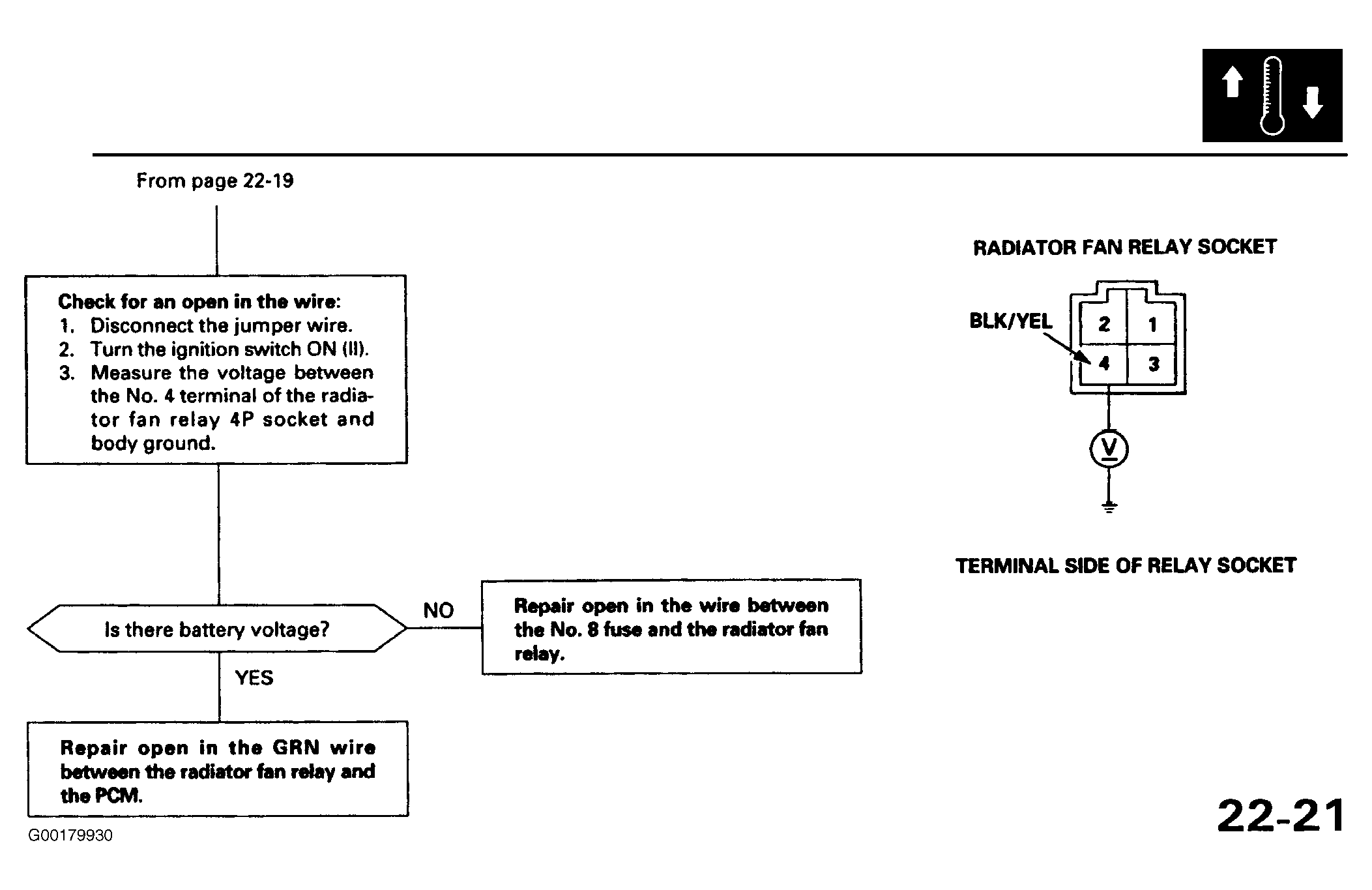

The corrected circuit diagram and troubleshooting flowchart pages follow. Mark an X through pages 22-6, 22-7, 22-21,22-24, and 22-26 of your 1998 Odyssey Service Manual, and make a note on each page to refer to this service bulletin.
WARRANTY CLAIM INFORMATION
None; information only.
