Ignition Coil Resistance Test (External Coil)

  1. Turn ignition off. Remove Primary and secondary leads from ignition coil. Using an ohmmeter, check primary resistance between ignition coil connector terminals "A" and "B". See Fig 1 and Fig 2 . Resistance should be as specified. See IGNITION COIL RESISTANCE .
  2. Check secondary resistance between ignition coil connector terminal "A" and secondary output terminal (coil tower). See IGNITION COIL RESISTANCE . Check for continuity between terminals "A" and "C". Continuity should exist. If readings are not within specification, replace coil.

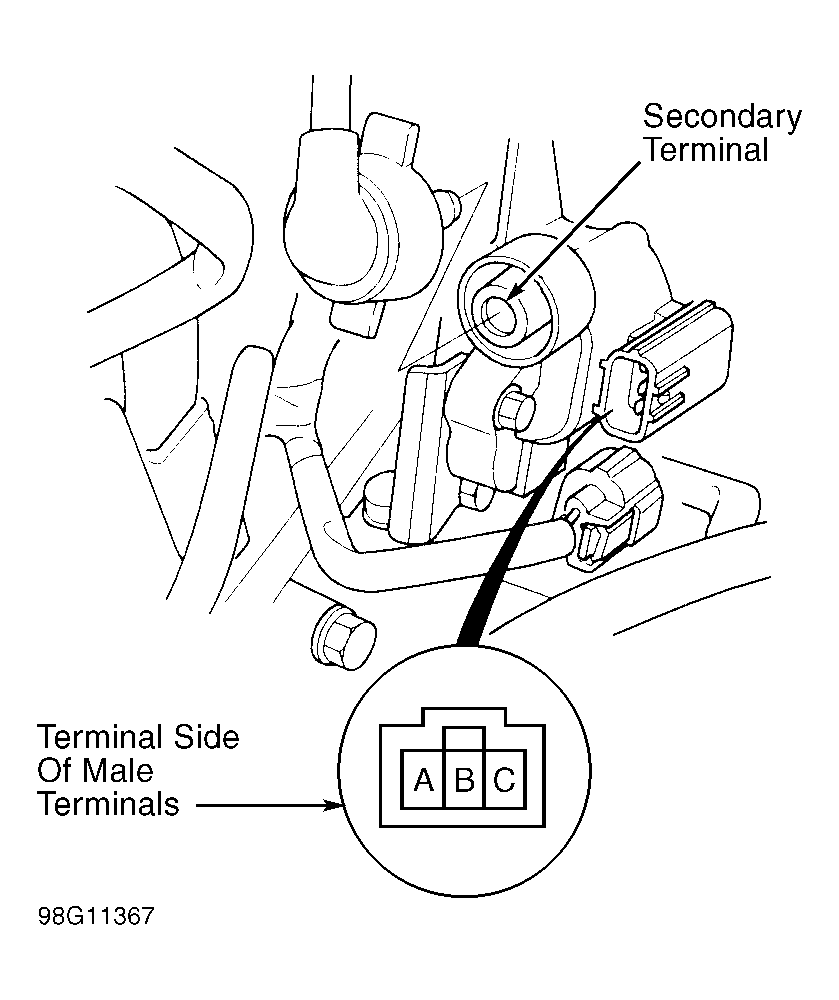

    Fig 1: Identifying External Ignition Coil Terminals Accord 3.0L
    G98G11367Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 2: Identifying External Ignition Coil Terminals Prelude
    G92A25130Courtesy of AMERICAN HONDA MOTOR CO., INC.
