Component Locations

COMPONENT LOCATIONS

Component Location
Door Switches (Front) (2) On Respective "B" Pillar.
Door Switches (Rear) (2) On Respective Rear Quarter Panel.
Driver's Seat Belt Switch In Drivers Seat Belt Buckle.
Engine Oil Pressure Switch On Lower Left Side Of Engine.
Integrated Control Unit On Rear Of Underdash Fuse/Relay Box. See Fig 1 .
Underdash Fuse/Relay Box Behind Left Kick Panel. See Fig 1 .
Underhood Fuse/Relay Box On Right Rear Corner Of Engine Compartment. See Fig 2 .
G401 Under Driver's Side Of Instrument Panel. See Fig 3 .
G402 Behind Passenger's Side Kick Panel. See Fig 4 .
G404 Behind Passenger's Side Kick Panel. See Fig 4 .
G501 Behind Driver's Side Kick Panel. See Fig 5 .
Fig 1: Locating Underdash Fuse/Relay Box & Integrated Control Unit
G98G02530Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating Underhood Fuse/Relay Box
G98C02528Courtesy of AMERICAN HONDA MOTOR CO., INC.

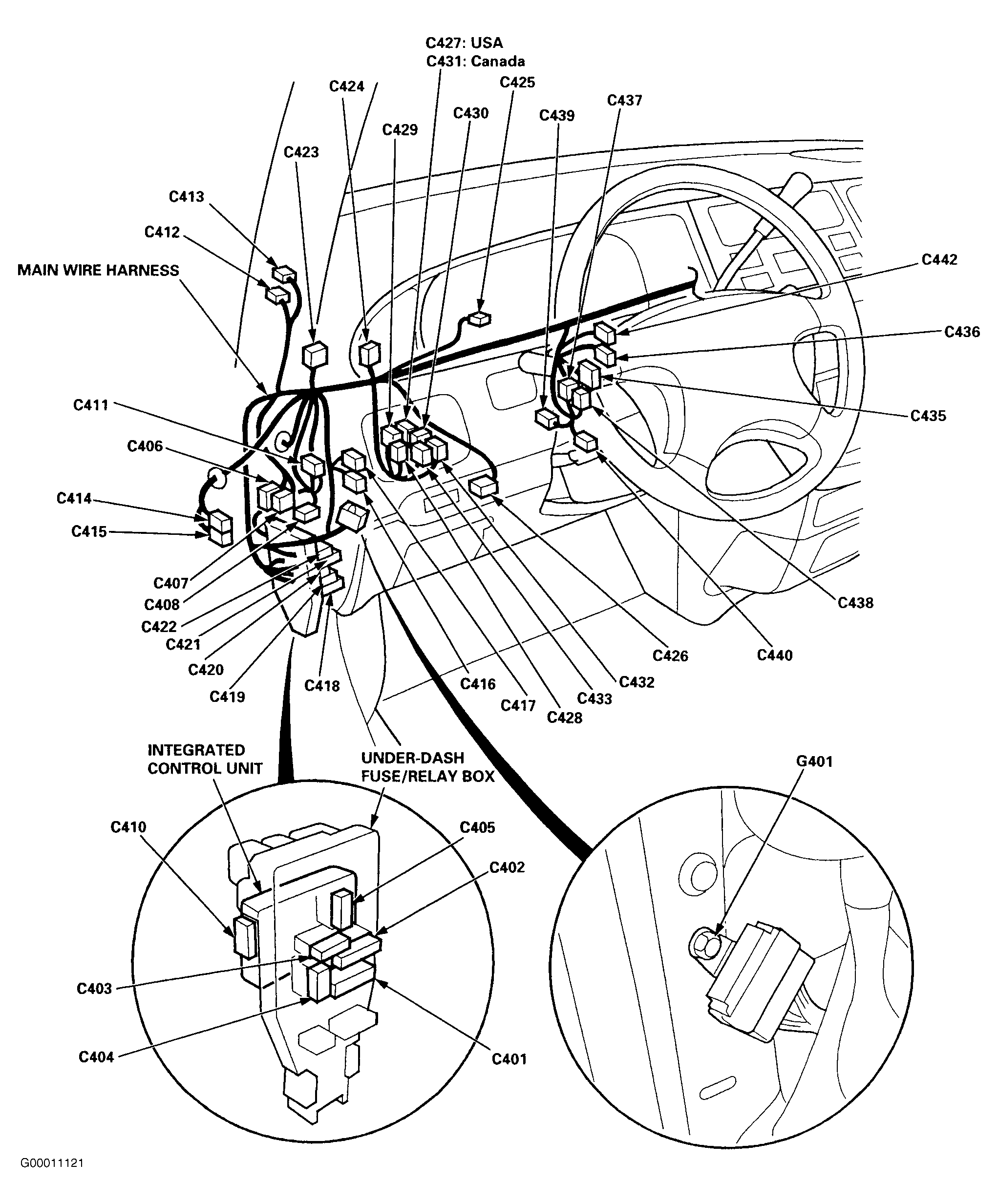

Fig 3: Locating Ground G401
G00011121Courtesy of AMERICAN HONDA MOTOR CO., INC.

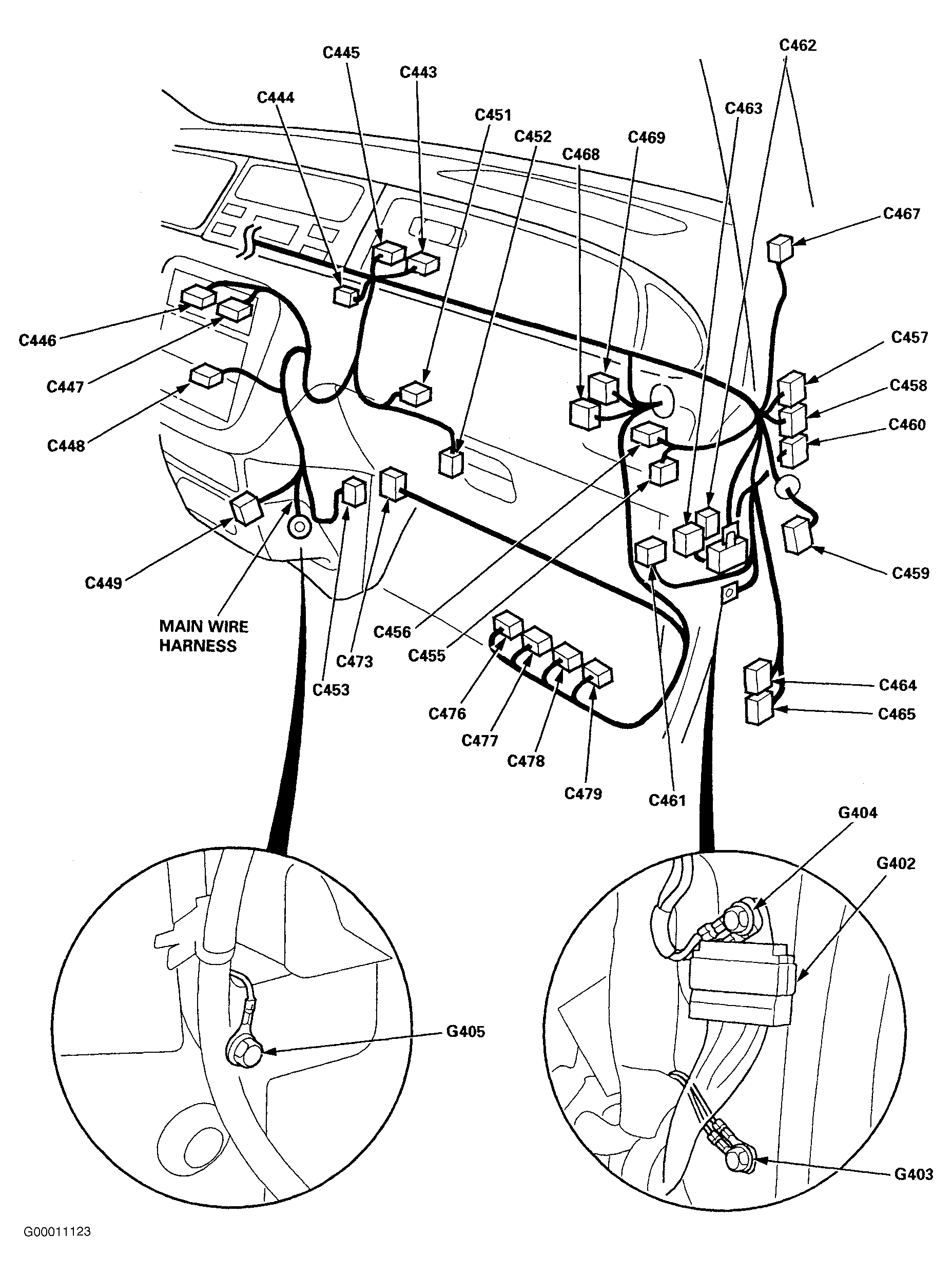

Fig 4: Locating Grounds G402 & G404
G00011123Courtesy of AMERICAN HONDA MOTOR CO., INC.

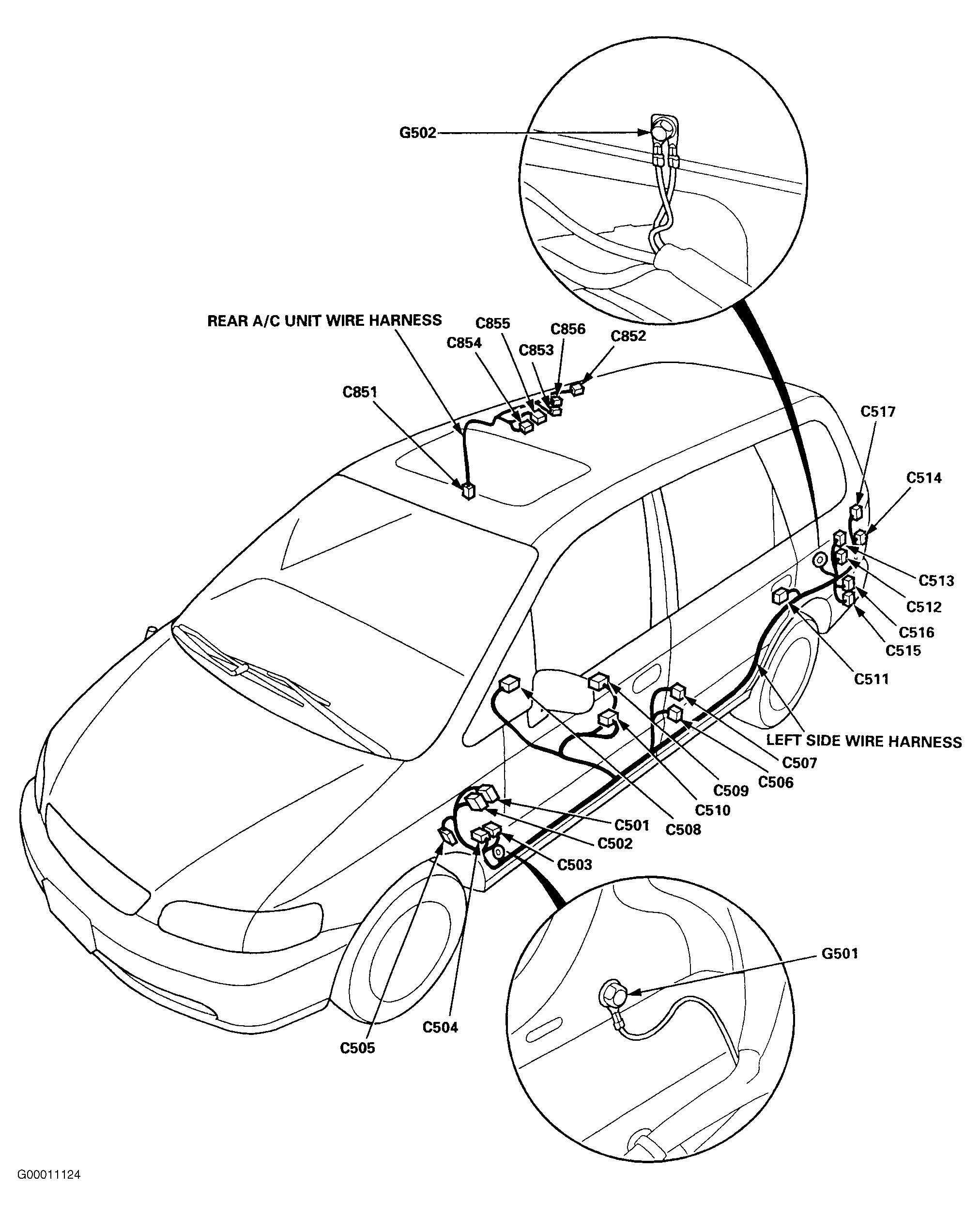

Fig 5: Locating Ground G501
G00011124Courtesy of AMERICAN HONDA MOTOR CO., INC.
