Seat Belt Switch

  1. Slide the drivers seat to the middle position, then disconnect the 2-P connector from the back of the seat. See Fig 1 .
  2. Check for continuity between the No. 1 and No. 2 terminals in each condition according to the table.
  3. If necessary, replace the seat belt switch.

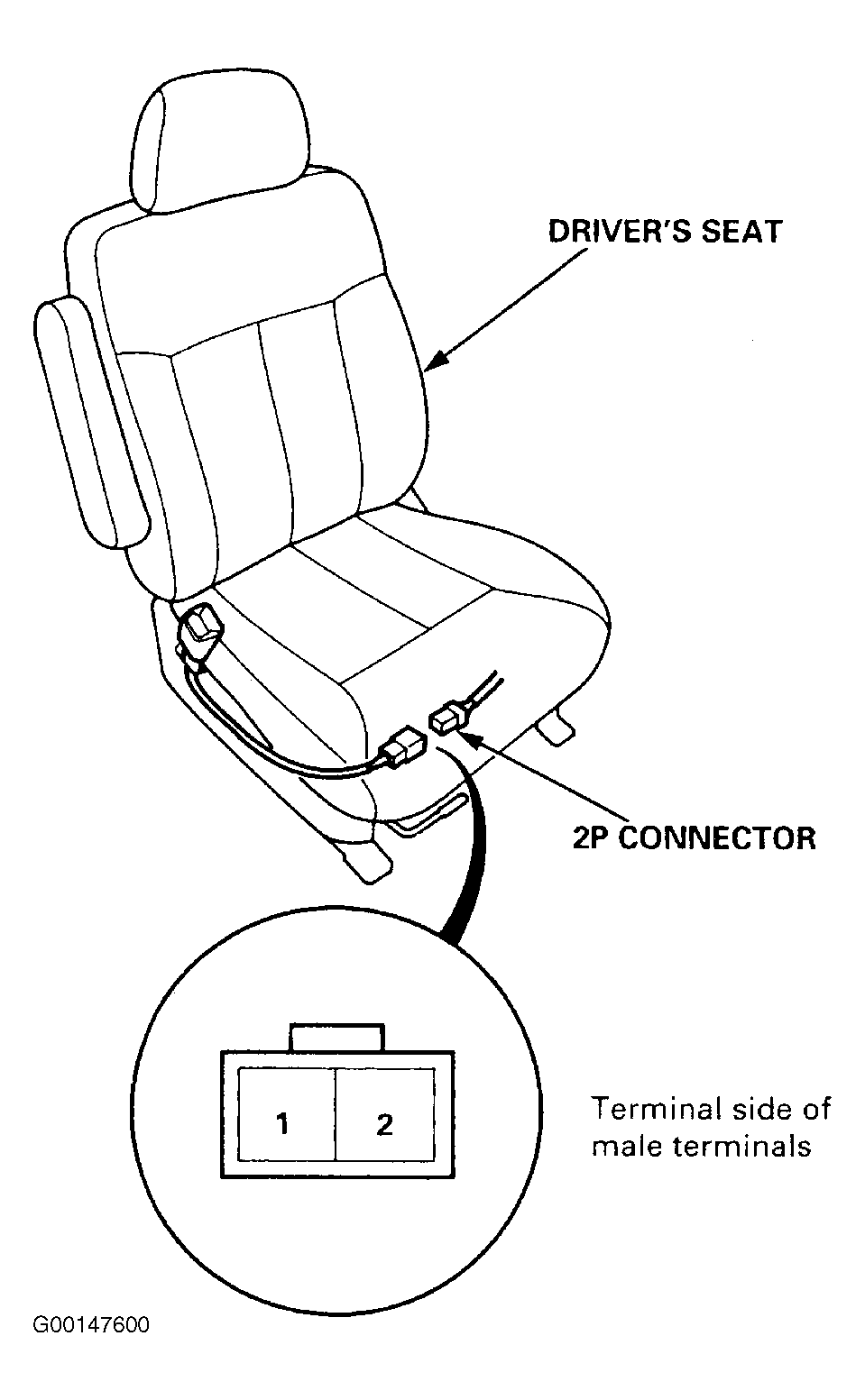

Fig 1: Locating & Identifying Seat Belt Switch 2-P Connector
G00147600Courtesy of AMERICAN HONDA MOTOR CO., INC.
