Lights-On Reminder System

For connector terminal identification, see Figure . For input test, see Fig 1 .

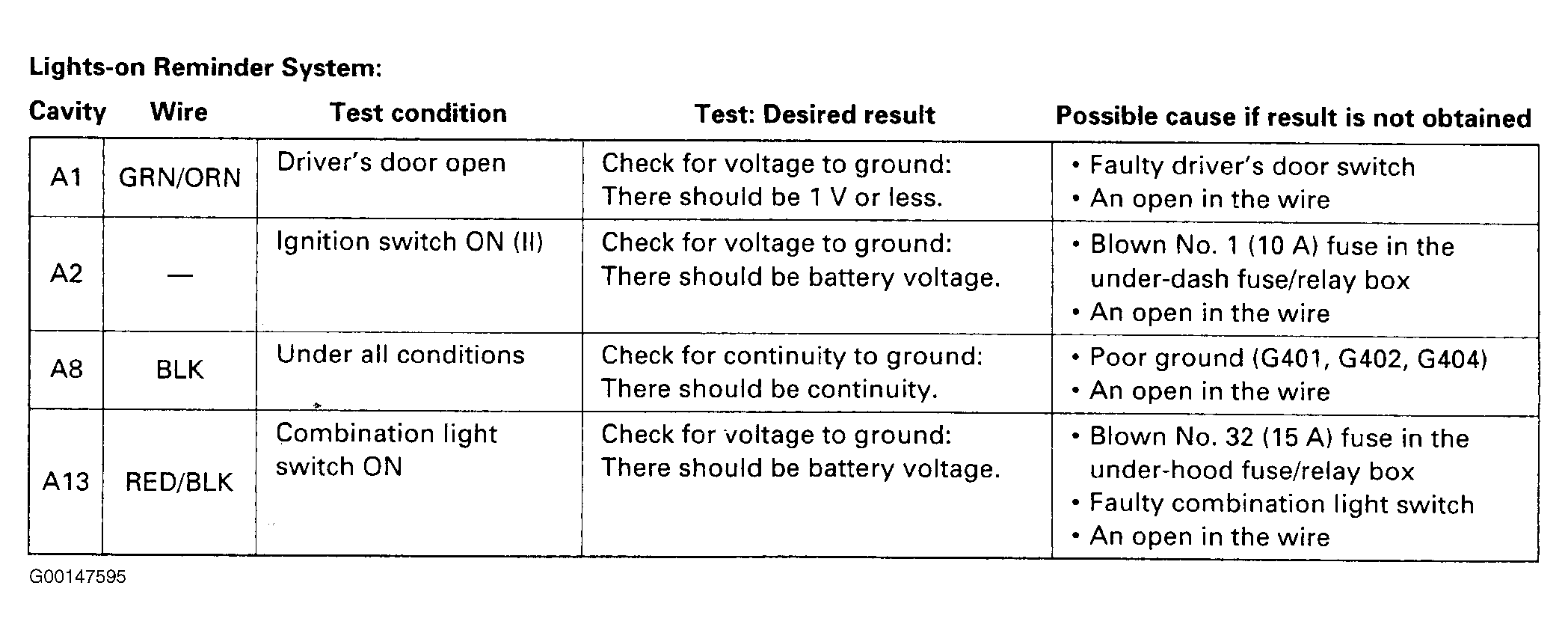

Fig 1: Lights-On Reminder System Input Test
G00147595Courtesy of AMERICAN HONDA MOTOR CO., INC.
