Intermittent Wiper System

For connector terminal identification, see Figure . For input test, see Fig 1 .

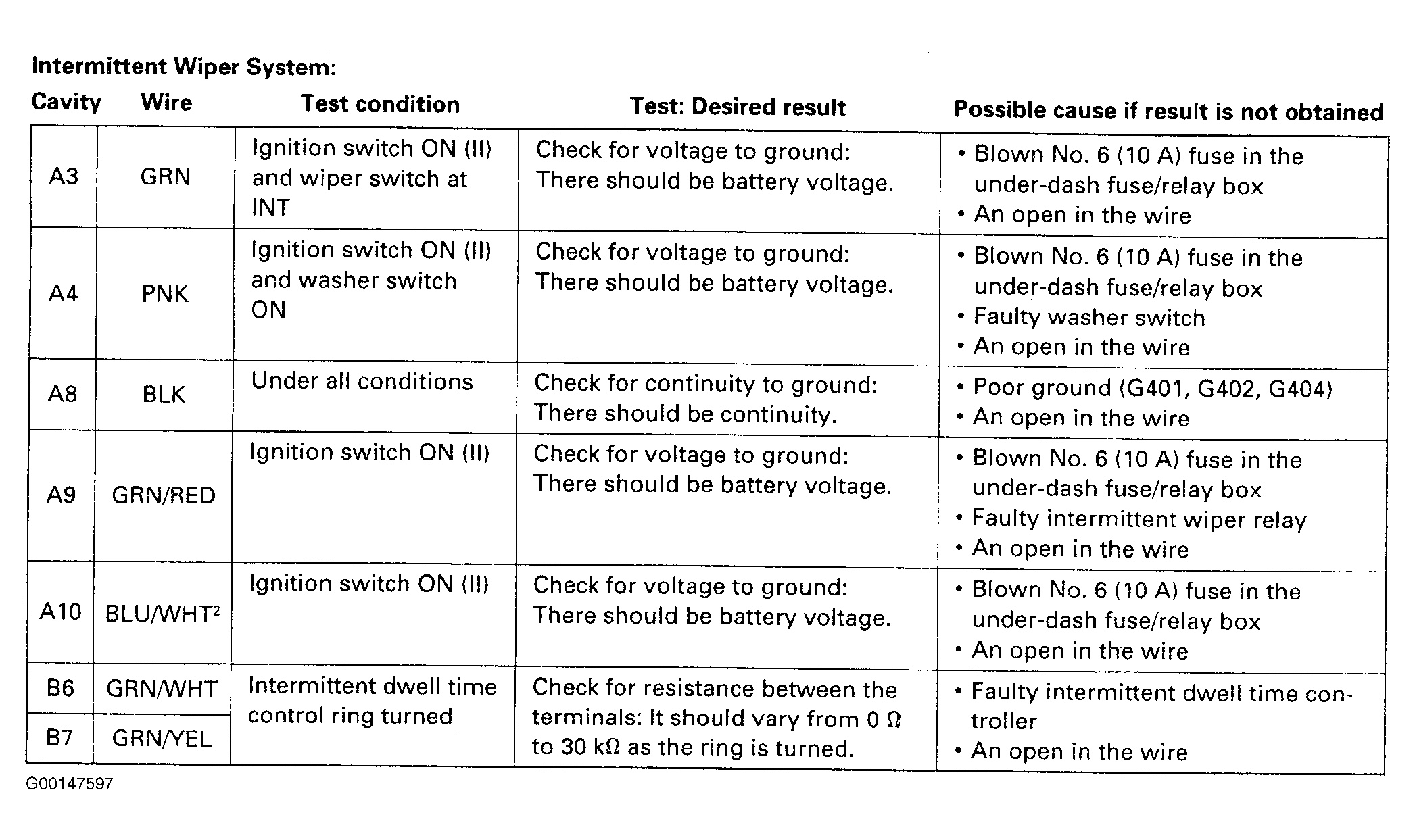

Fig 1: Intermittent Wiper System Input Test

G00147597

Courtesy of AMERICAN HONDA MOTOR CO., INC.
