Starter Switch Signal

This signals the PCM when the engine is cranking.

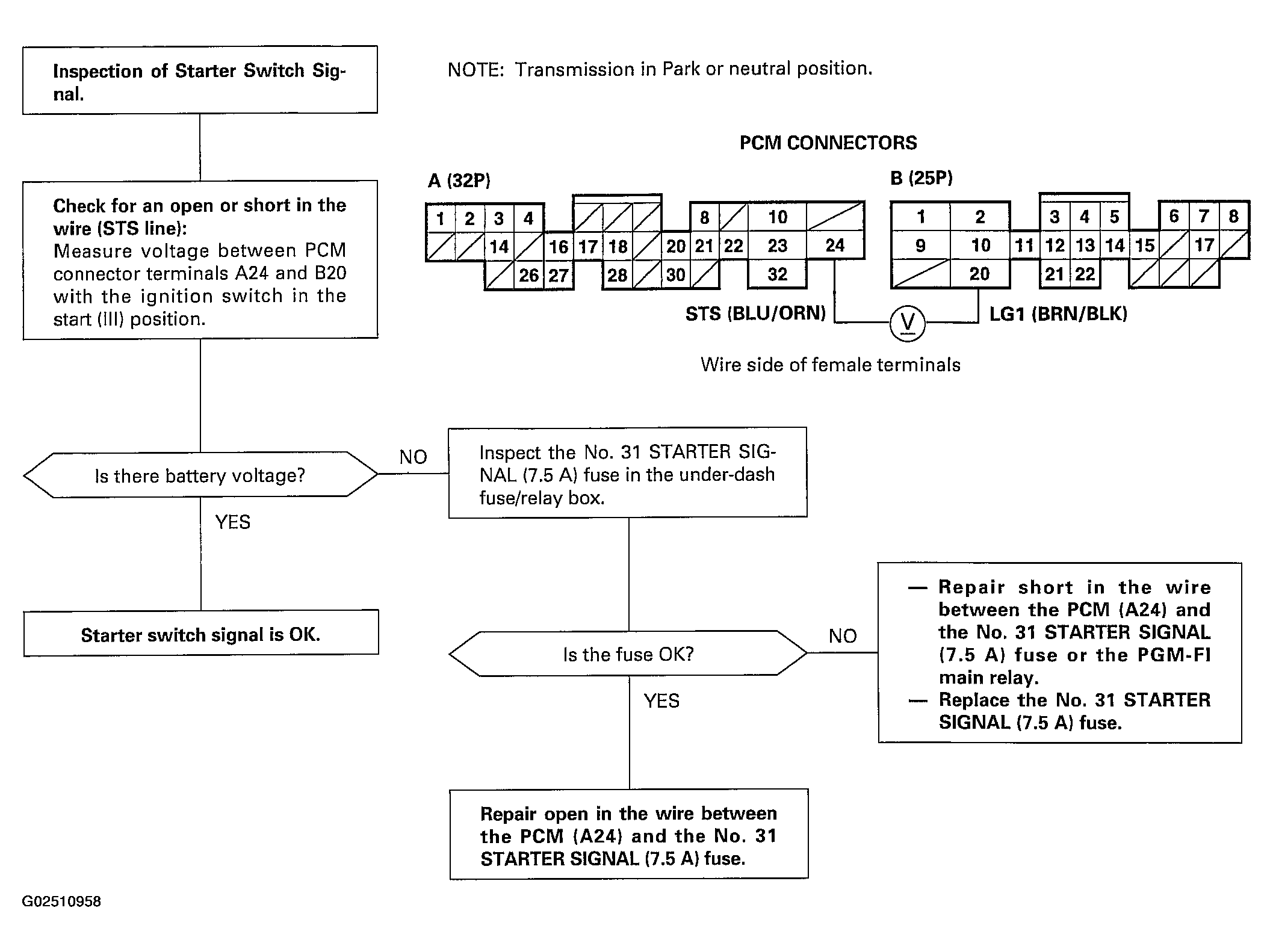

Fig 1: Starter Switch Signal Troubleshooting Flowchart

G02510958

Courtesy of AMERICAN HONDA MOTOR CO., INC.
