Brake Switch Signal

This signals the PCM when the brake pedal is depressed.

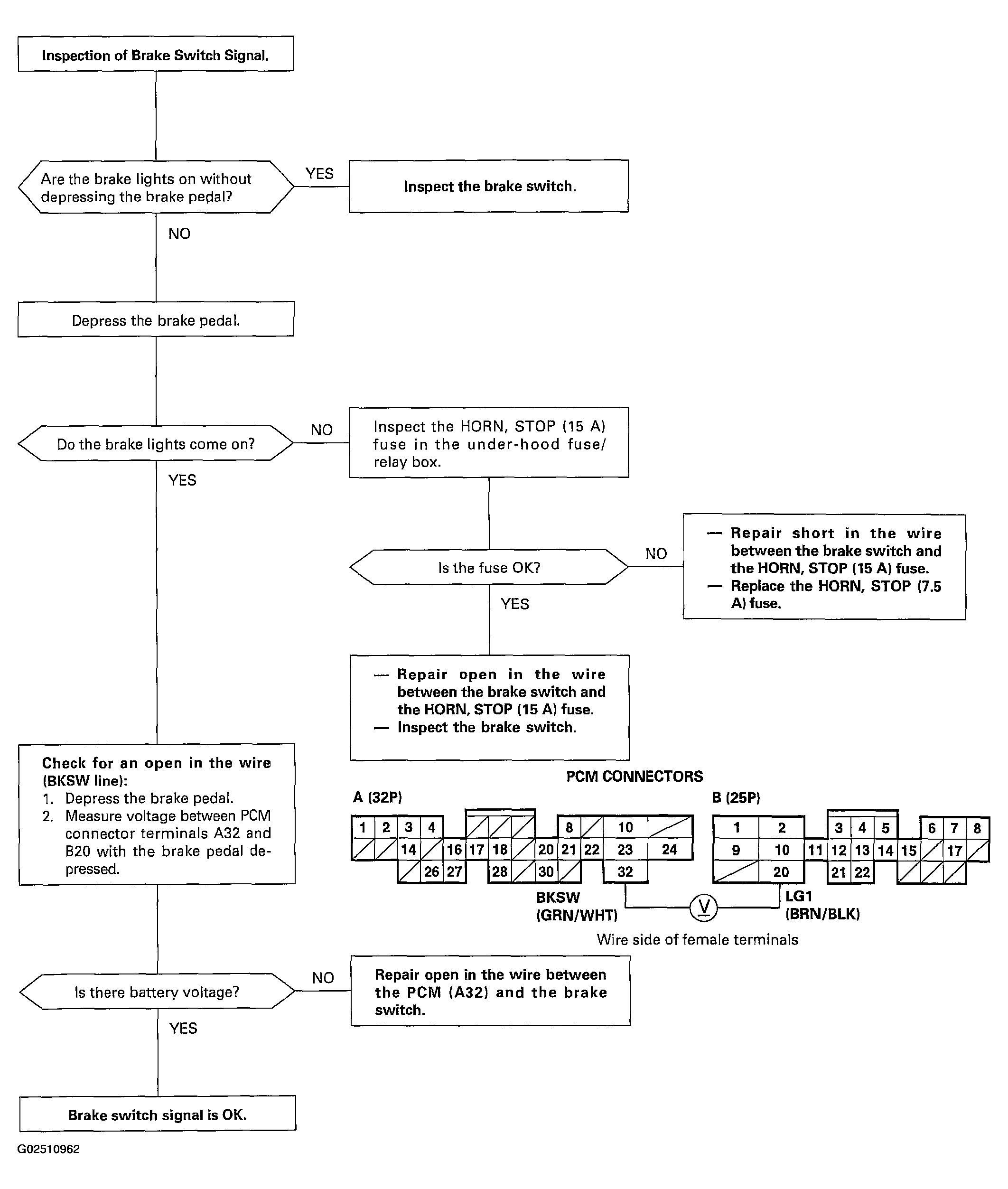

Fig 1: Brake Switch Signal Troubleshooting Flowchart

G02510962

Courtesy of AMERICAN HONDA MOTOR CO., INC.
