Air Conditioning Signal

This signals the PCM when there is a demand for cooling from the air conditioning system.

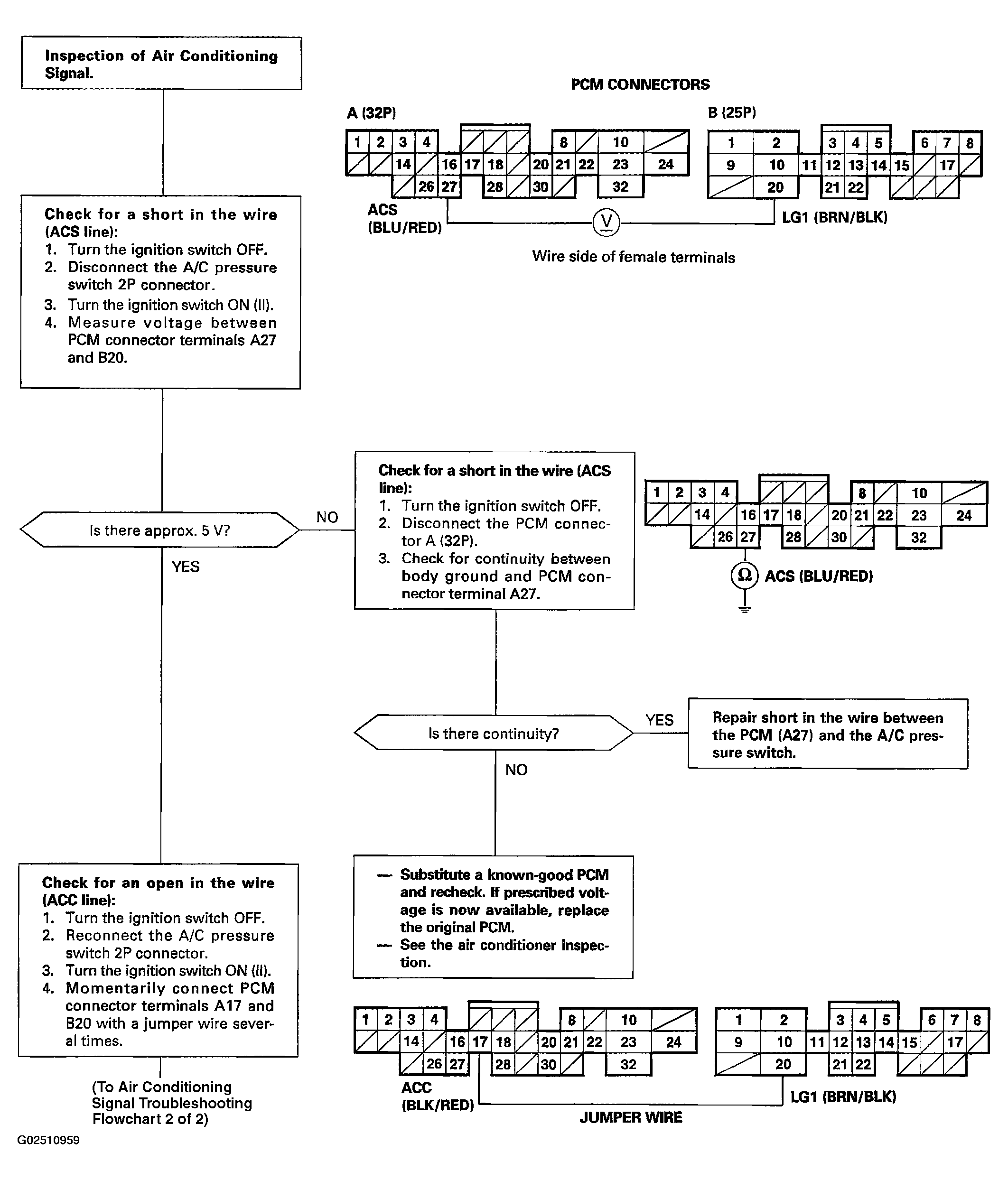

Fig 1: Air Conditioning Signal Troubleshooting Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

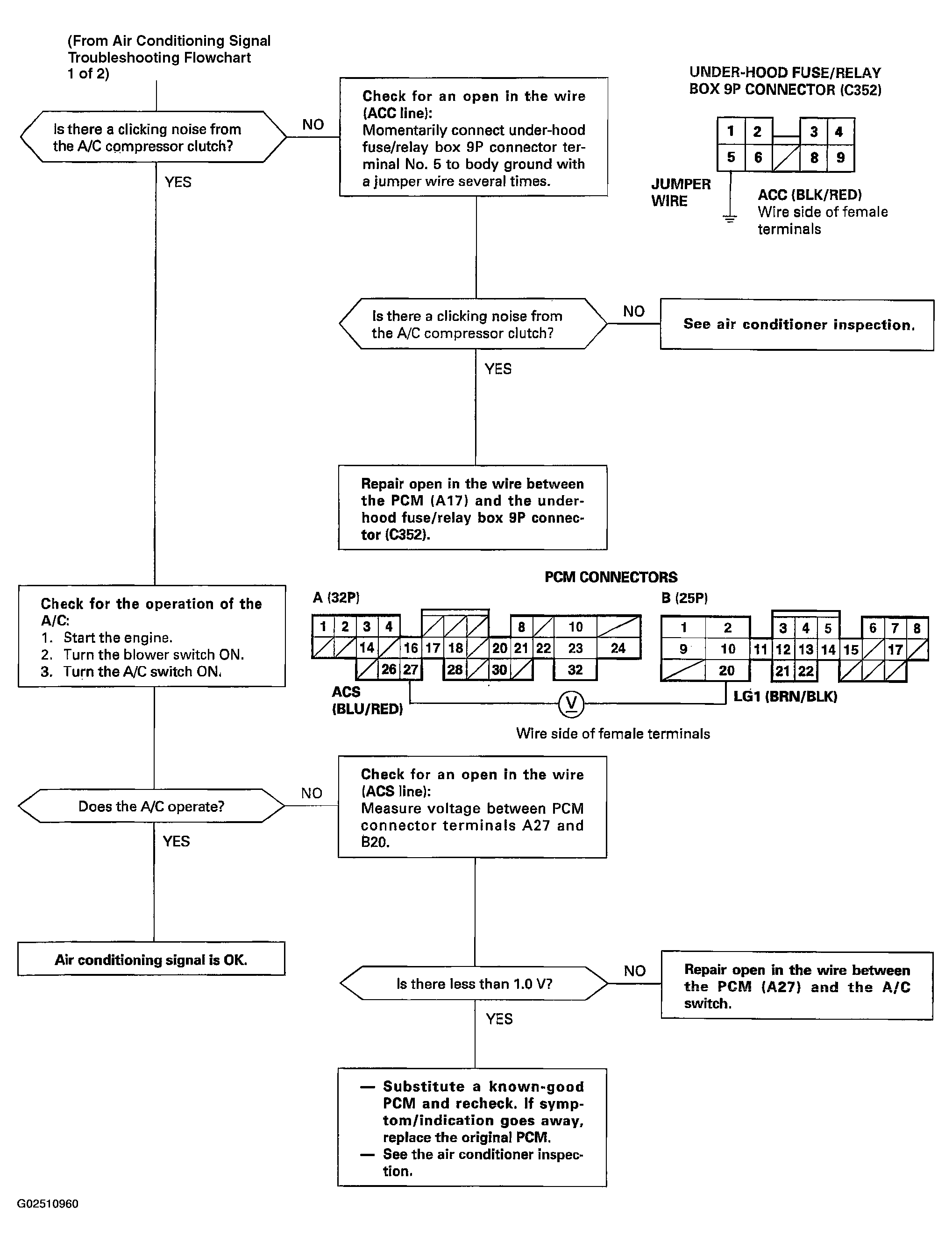

Fig 2: Air Conditioning Signal Troubleshooting Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
