Engine Electrical Service Specifications
>>
Electrical System
Electrical System

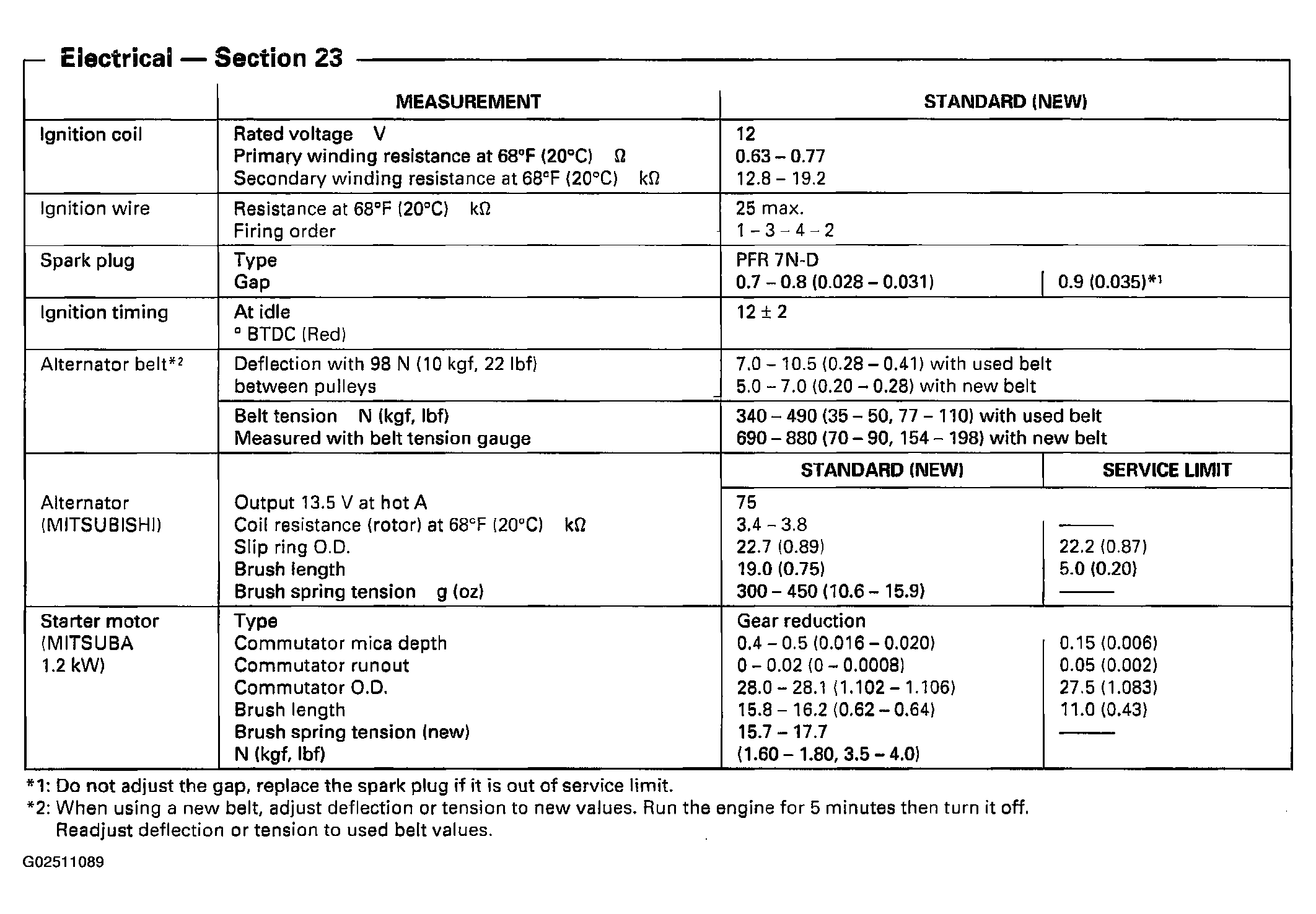

Fig 1: Engine Electrical Specification Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
