Intermittent Wiper System

For connector terminal identification, see Figure or Figure . For input test, see Fig 1 or Fig 2 .

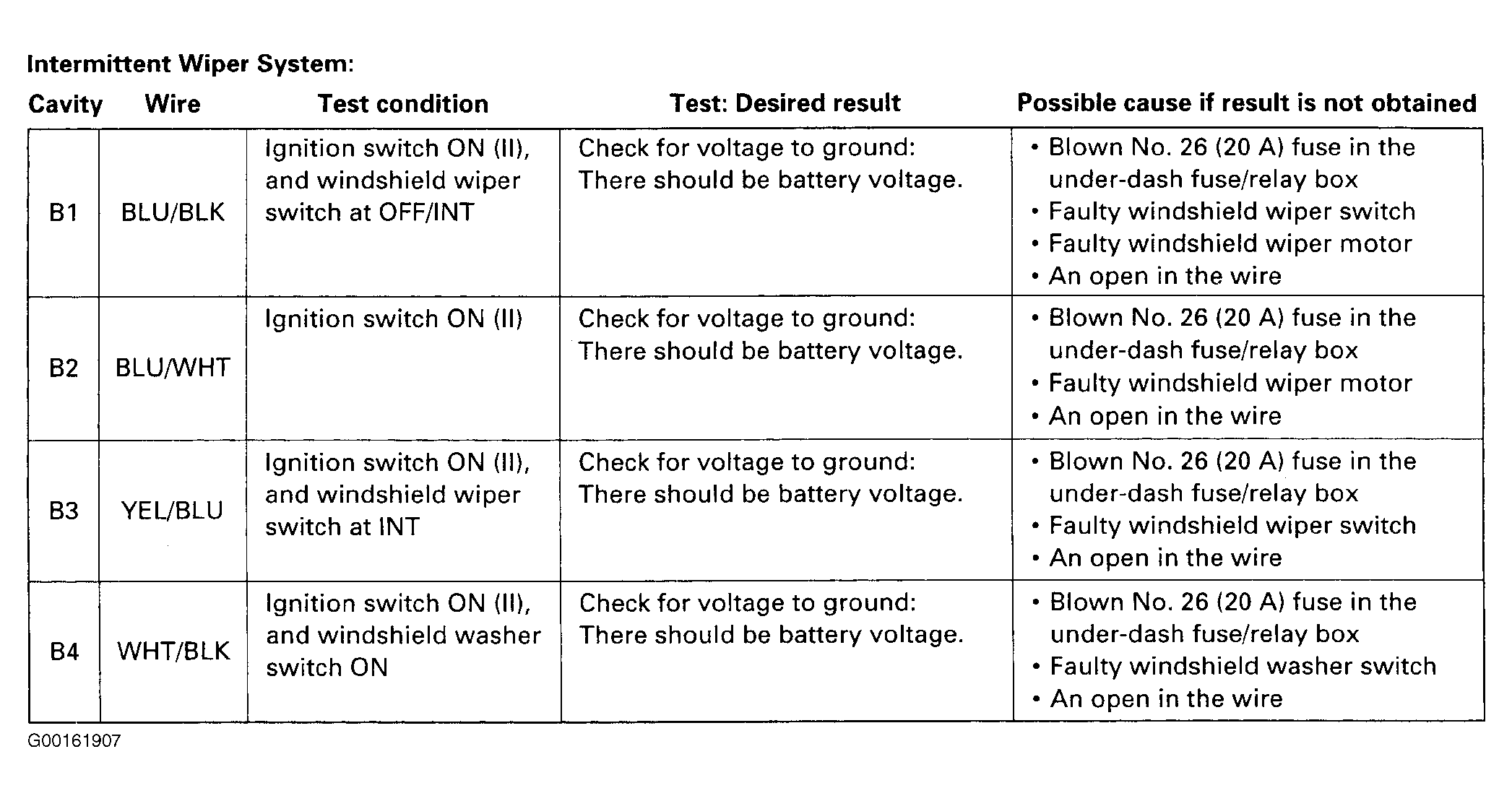

Fig 1: Intermittent Wiper System Input Test (1997)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

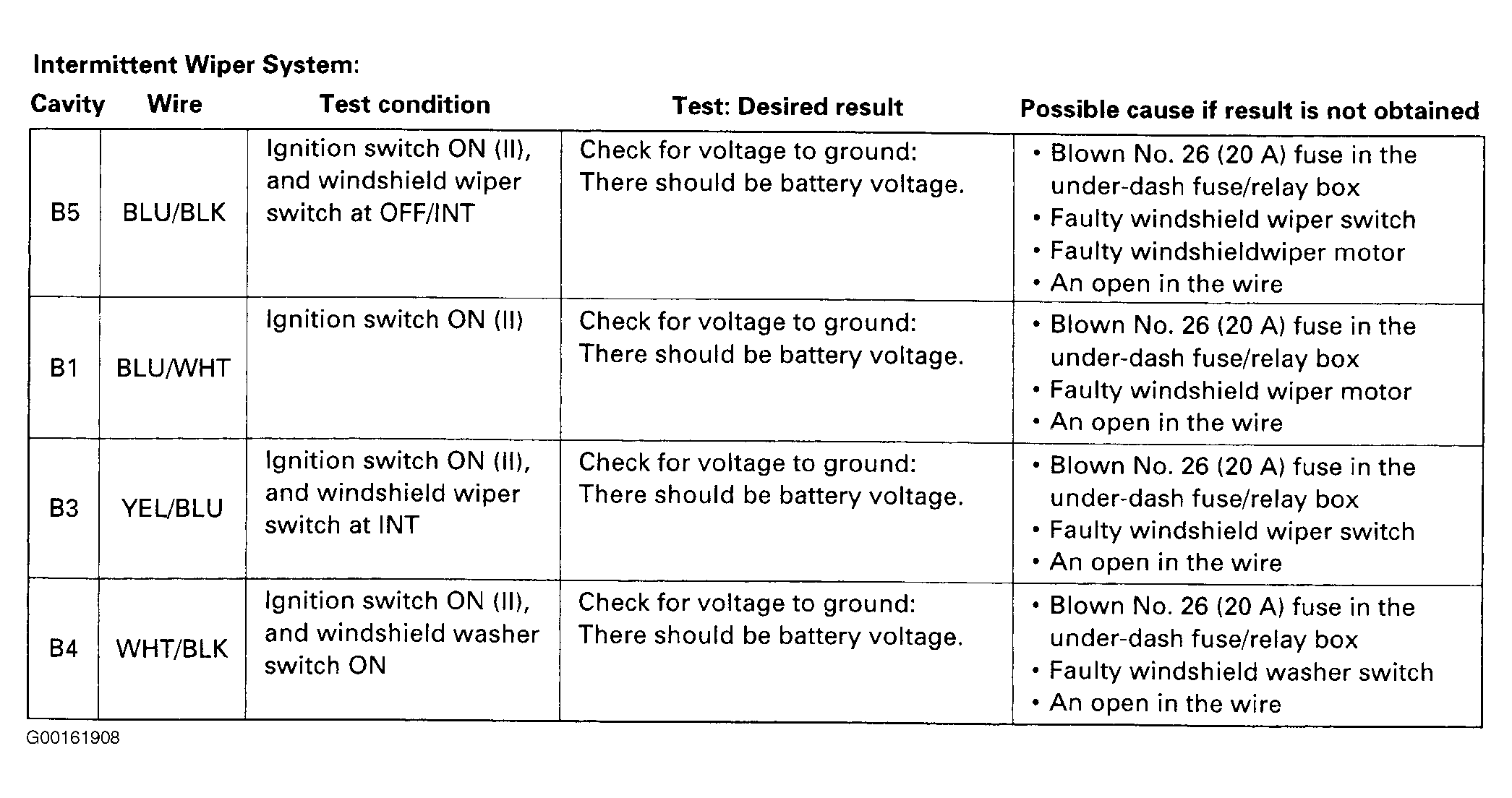

Fig 2: Intermittent Wiper System Input Test (1998-01)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
