Maintenance Information
>>
Service Point Locations
Service Point Locations

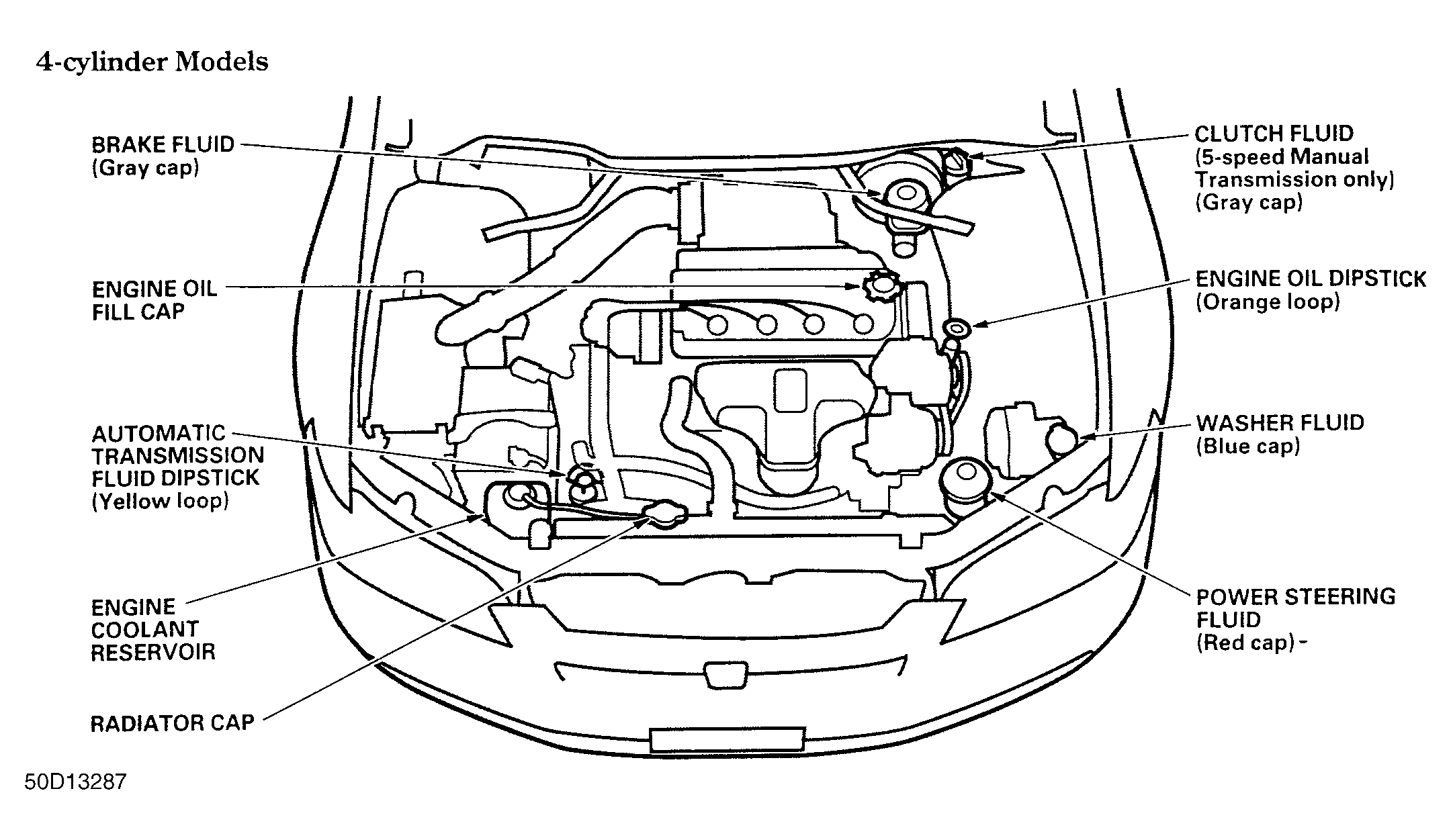

Fig 1: Service Point Locations - 4-Cylinder Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.

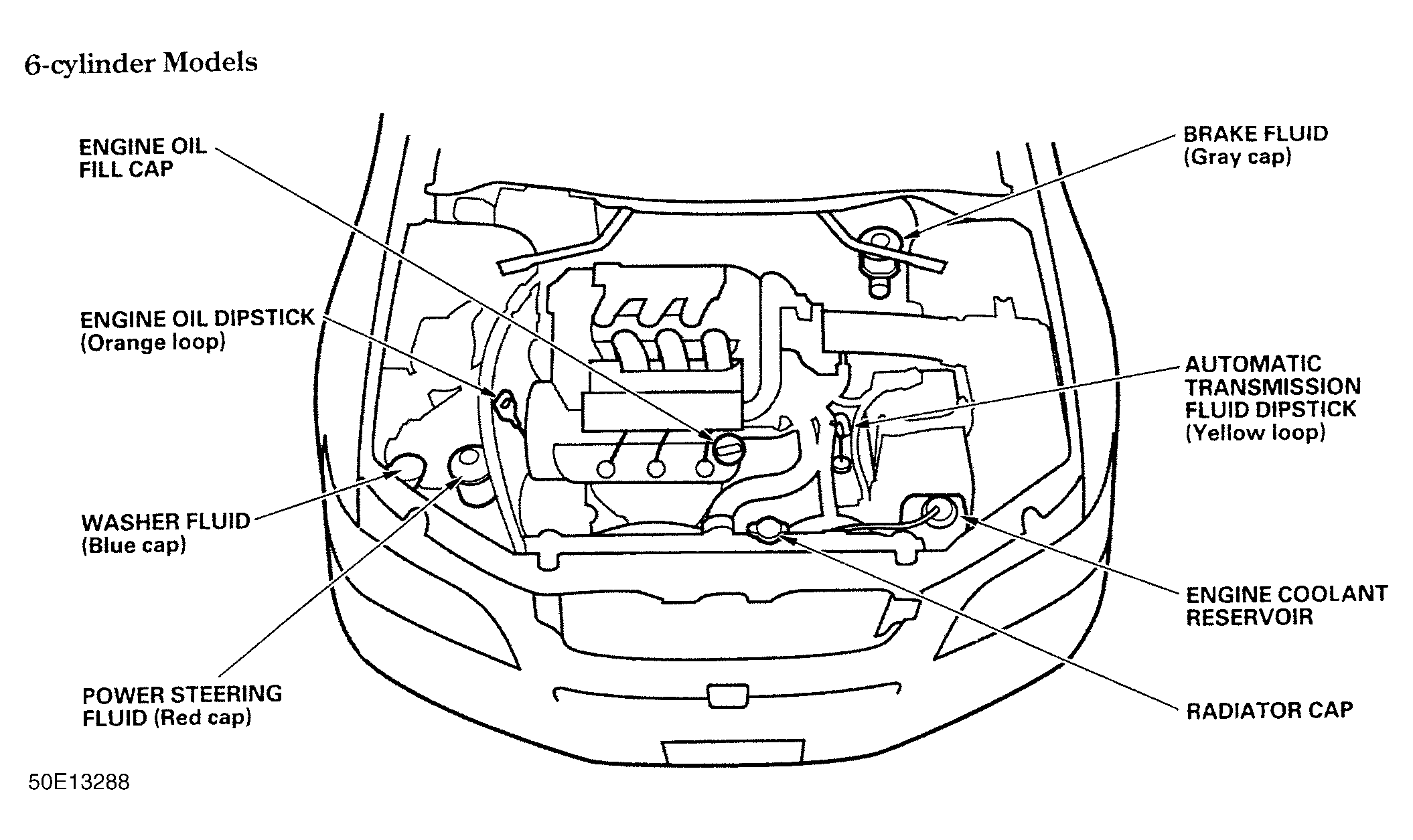

Fig 2: Service Point Locations - 6-Cylinder Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.

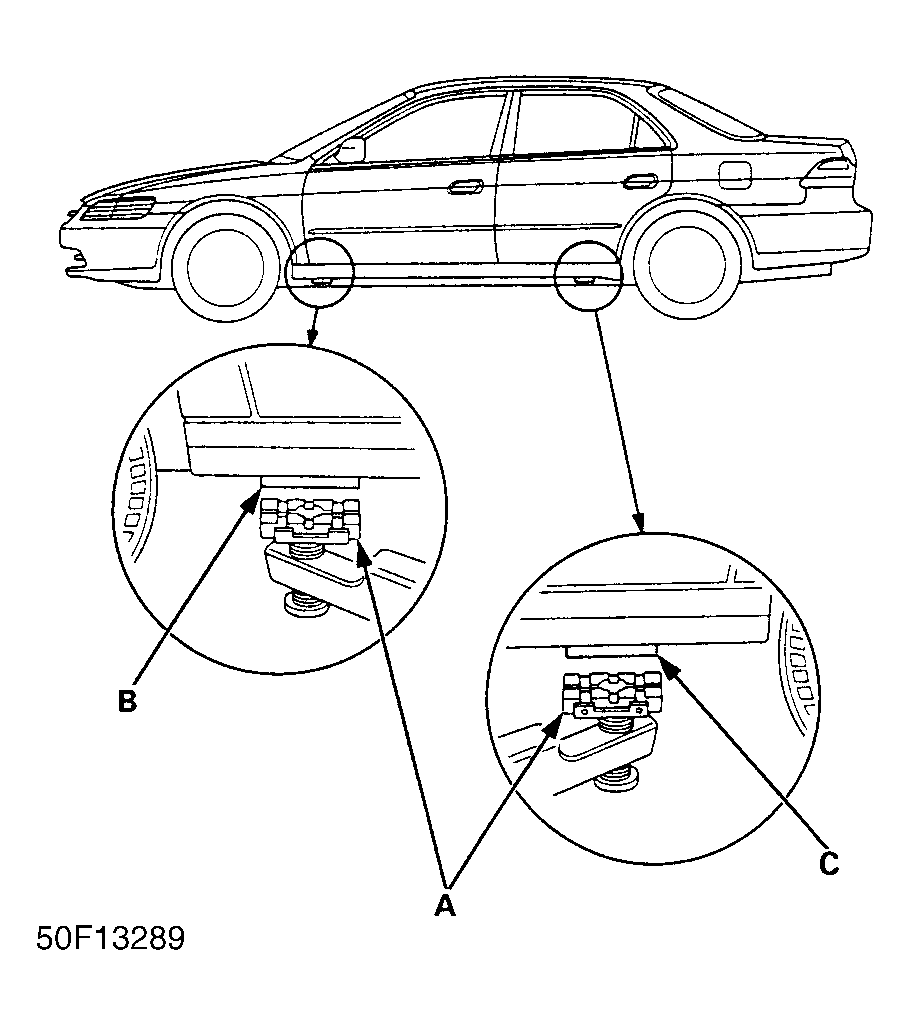

Fig 3: Lift Point Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
