Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

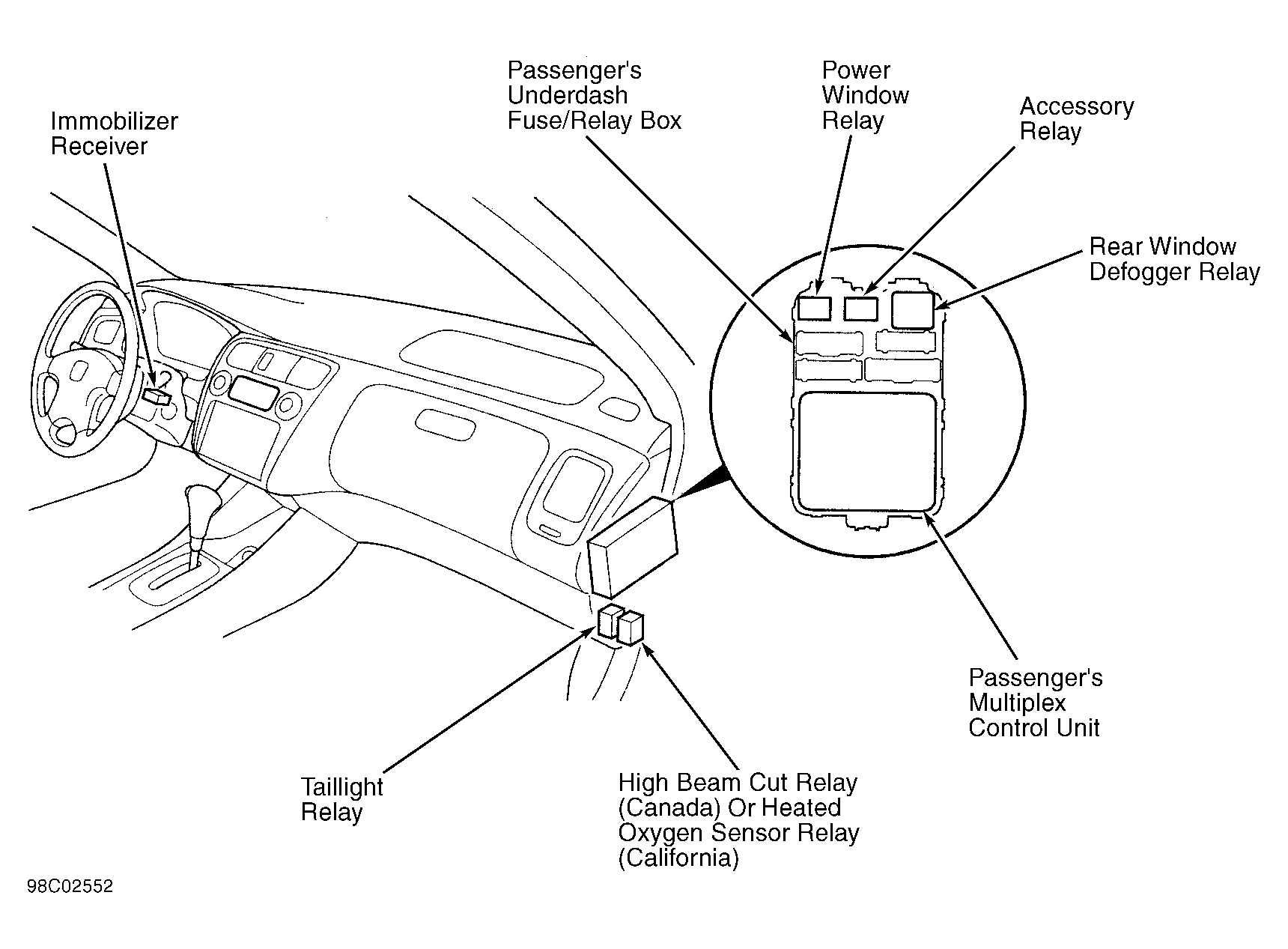

Driver's Underdash Fuse/Relay Box Behind left side of dash, behind left fuse box cover. See Figure.
In-Line Diode No. 1 (Courtesy Lights) In driver's underdash fuse/relay box.
In-Line Diode No. 2 (Courtesy Lights) In driver's underdash fuse/relay box.
In-Line Diode No. 3 (Courtesy Lights) In passenger's underdash fuse/relay box.
In-Line Diode No. 4 (Courtesy Lights) In passenger's underdash fuse/relay box.
Multi-Relay Box On right side of engine compartment, on strut tower. See Figure.
Passenger's Underdash Fuse/Relay Box Behind right side of dash, behind right fuse box cover. See Figure.
Underhood Fuse/Relay Box On right rear corner of engine compartment, behind strut tower. See Figure.
