Gear Position Indicator Input Test

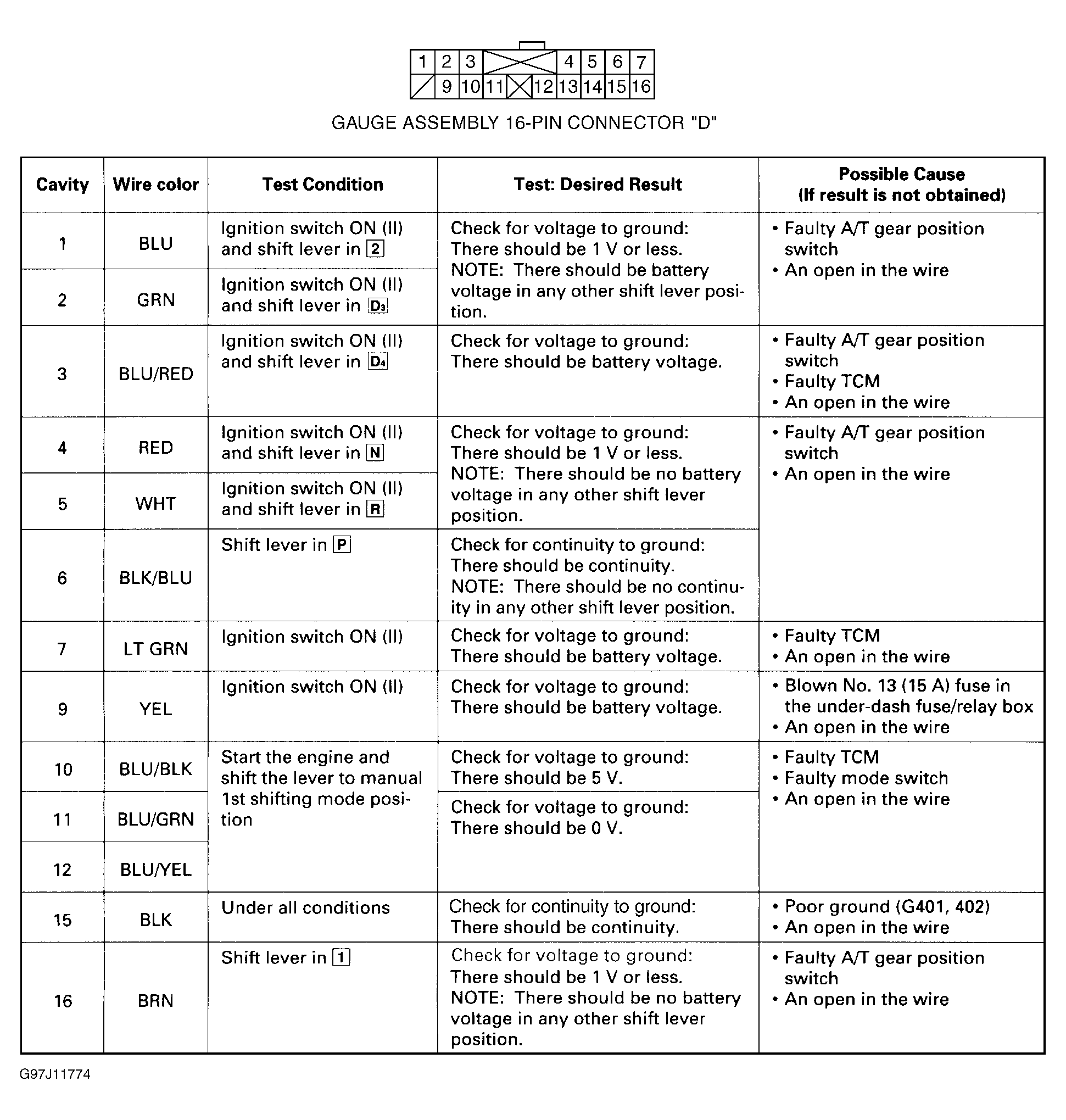

Remove gauge assembly from dashboard. Disconnect gauge assembly "D" (16-pin) connector. Inspect connector for damage or corrosion, repair as necessary. If connector terminals are okay, perform gear position input test. See Fig 1 .
