DTC 17: Abs Enable Relay Circuit Shorted To Ground

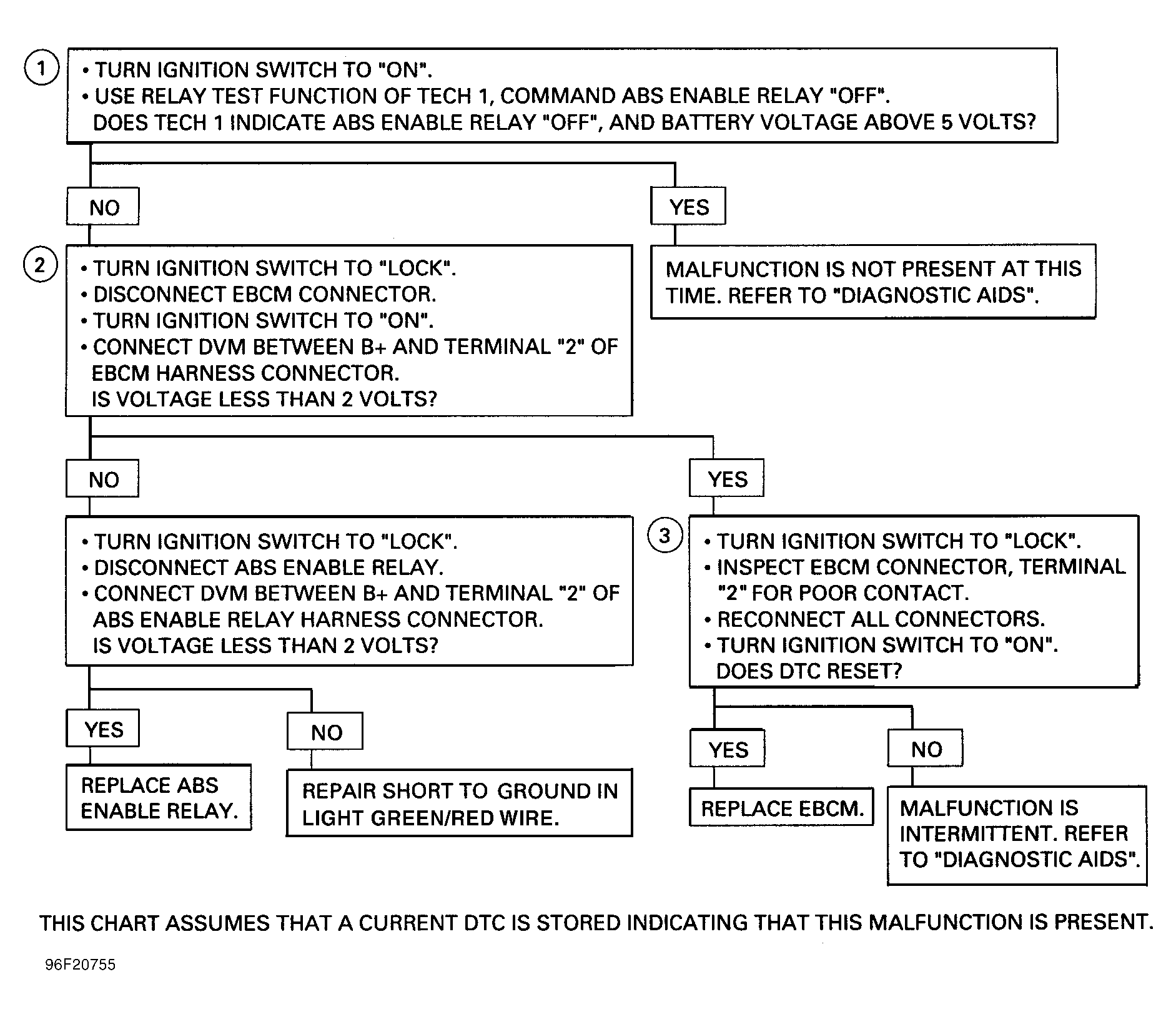

Fig 1: DTC 17: ABS Enable Relay Circuit Shorted To Ground

G96F20755

Courtesy of ISUZU MOTOR CO.
