Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

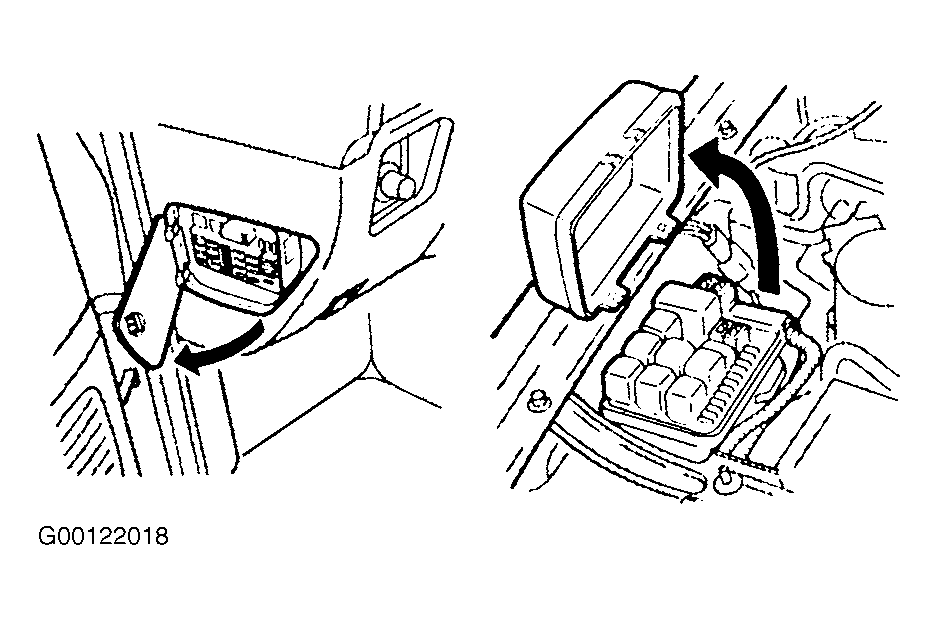

Fig 1: Locating Fuse Boxes

Courtesy of AMERICAN HONDA MOTOR CO., INC.

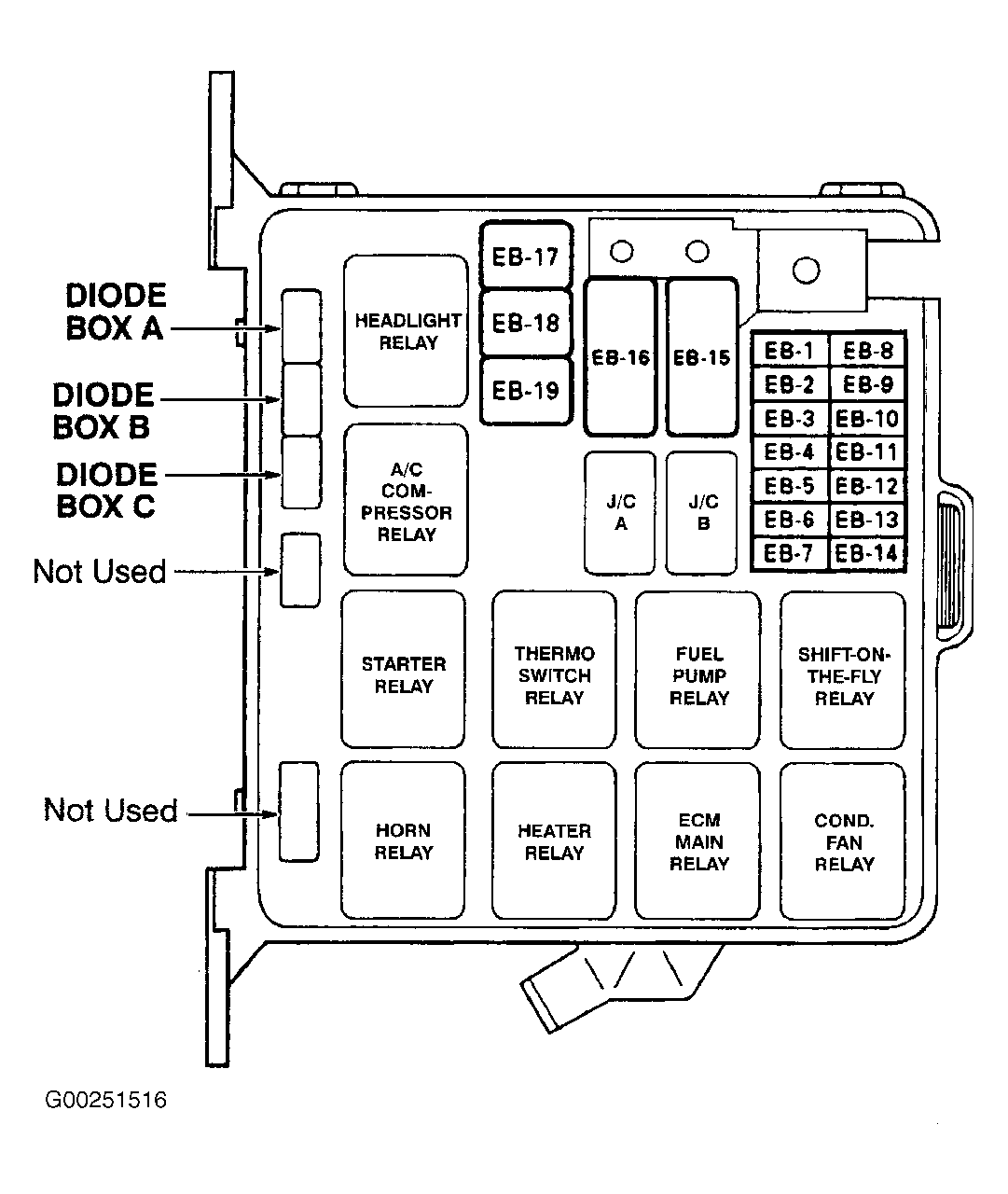

Fig 2: Identifying Engine Compartment Fuse Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

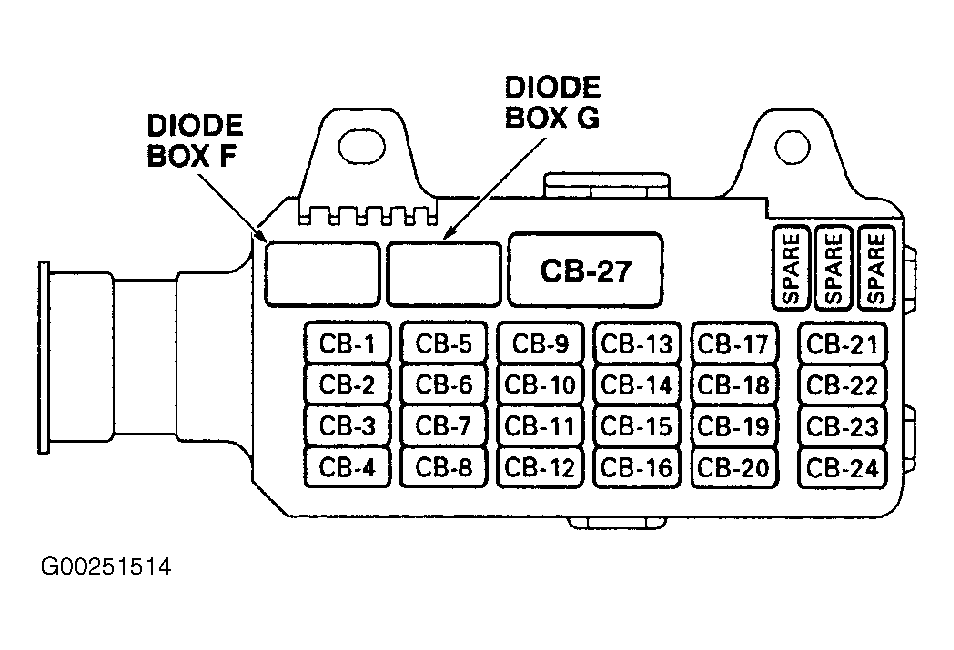

Fig 3: Identifying Instrument Panel Fuse Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

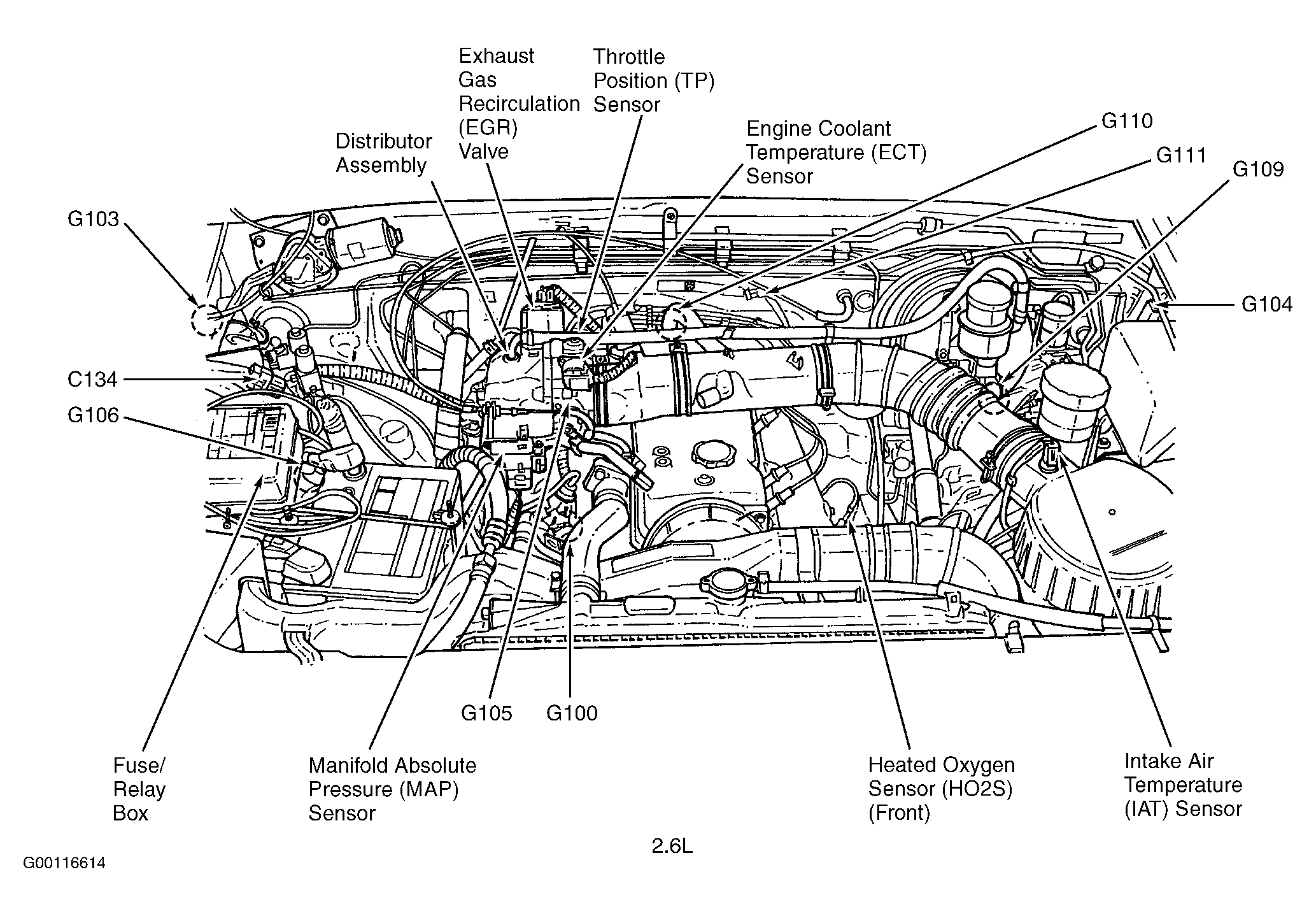

Fig 4: Engine Compartment (2.6L)

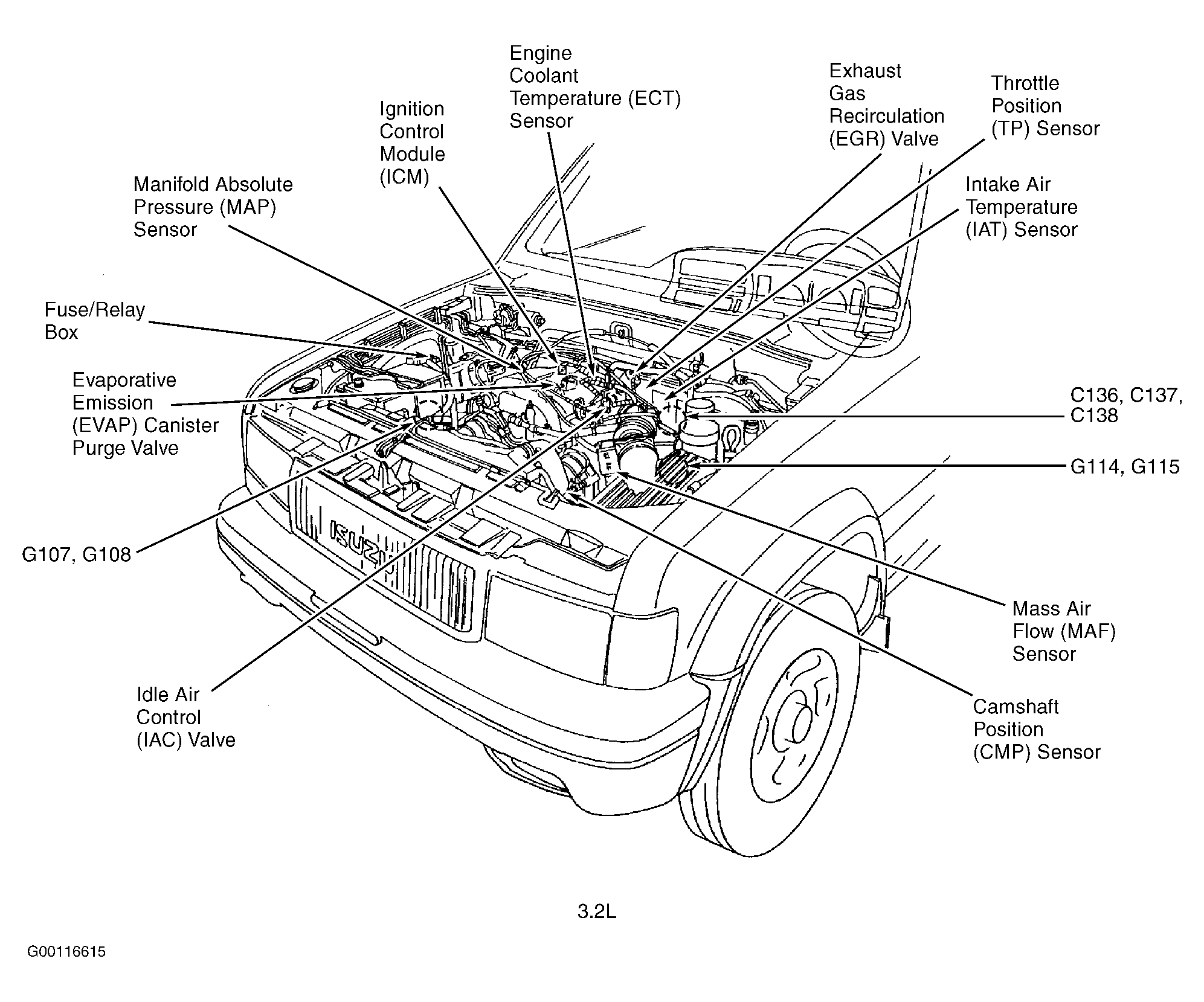

Fig 5: Engine Compartment (3.2L)
