Keyless Remote Transmitter Information (96-046)

PROGRAMMING TRANSMITTER

This transmitter is not programmable. See Fig 1 .

ORDERING TRANSMITTER

Transmitters can be ordered directly from Alpine of America by authorized Honda Dealers only. Send a completed order form (found in Parts Information Bulletin A91-0031) along with a dealer check for $59.00 (payable to Alpine of America), to this address:

Honda/Alpine V.S.S.

P.O. Box 2859

Torrance, CA 90509

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses two batteries.

PROGRAMMING TRANSMITTER

1. Remove the rear cover from the old transmitter and the new one. See Fig 3 .
2. Remove the ROM chip from the old transmitter by sliding its socket holder toward the ROM chip.
3. Insert a new ROM chip into the socket holder, then slide the socket holder toward the socket to lock the chip into place.
4. Repeat step 3 to install a ROM chip into the new transmitter.
5. Reinstall the rear covers on the transmitters.
6. Remove the security system control unit from under the driver's seat. See Fig 4 .
7. Open the access cover on the control unit, and replace the ROM chip. See Fig 4 . (Use the same procedure as in steps 2 and 3.)
8. Close the access cover, and reinstall the control unit.

If you are replacing a damaged transmitter, don't replace the ROM chips in the transmitters and the control unit; just remove the chip from the old transmitter, and install it in the new one.

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

If your customer wants to add a third transmitter to the system, you need to order a four ROM chip set directly from Alpine Electronics of America. The Alpine part number for the four ROM chip set is 8319. For each set ordered, send a dealer check for $24.00 (payable to Alpine of America), to this address:

Alpine Electronics of America

ATTN: Al Sula (Parts)

19145 Gramercy Place

Torrance, CA 90501

Alpine's ROM chip set does not come with a transmitter. Additional transmitters can be ordered from American Honda using normal parts ordering procedures.

If you have questions on how to order the four ROM chip set, call Alpine's Parts Department at (800) 421-2284, extension 8885.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

This transmitter is not programmable. See Fig 5 .

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. To order a transmitter, you need the vehicle's VIN, the code number from the power door lock control unit, and the ignition key code number.

The power door lock code number is a five-digit number etched into the plastic case of the control unit (mounted under the driver's seat). The ignition key code number is a four-digit number stamped on the metal shank of all five original keys delivered with the car.

Replacement transmitters are manufactured to match the code of the keyless entry system. The new ignition key is cut to match the vehicle's ignition switch, front door locks, tailgate lock, and glove compartment lock.

To order this transmitter, use the controlled parts ordering screen on the HONDANET 2000 system. The transmitters are manufactured in Japan; delivery takes 4 to 6 weeks.

BATTERIES FOR TRANSMITTER

The battery is not replaceable.

PROGRAMMING TRANSMITTER

This transmitter is not programmable. See Fig 6 .

ORDERING TRANSMITTER

Transmitters can be ordered directly from Kenwood USA by authorized Honda Dealers only. Send a completed order form*  , (copy it from the Accessory Replacement Parts section of the Dealer Parts Price List) along with a dealer check for $30.00 (payable to Kenwood U.S.A. Corp.), to this address:

Kenwood Service Corp.

P.O. Box 22745

Long Beach, CA 90801-5745

If you need a transmitter shipped overnight, fill out the order form, then call Kenwood at (800) 852-4690, or Fax them at (310) 898-1029 (weekdays, from 8:30 A.M. thru 4:00 P.M., PST). You will need to give the information on the order form to the Kenwood representative. The transmitter will be sent to your Dealership C.O.D. Additional shipping and handling charges will be applied to the order.

BATTERIES FOR TRANSMITTER

The battery number is CR1220. Each transmitter uses two batteries.

• - On the order form, you must include the serial number of the keyless control unit or the number from one of the original transmitters.

PROGRAMMING TRANSMITTER

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

1. Open the driver's door.
2. Press and hold the driver's door master power door lock switch up in the unlock position. (Continue to hold the switch during this procedure.)
3. Insert the key in the ignition switch and remove it. Repeat this four more times within 10 seconds, then leave the key in the switch. Check that the power door locks cycle to confirm that the system is in the programming mode. (This step must be completed within 10 seconds, or the system will exit the programming mode.)
4. Press the "LOCK" or UNLOCK" button on the transmitter. Check that all power door locks (except the driver's) cycle to confirm that the transmitter's code was accepted by the system.
5. To program a second transmitter, press its "LOCK" or "UNLOCK" button within 10 seconds of programming the first transmitter. (You can program two transmitters per vehicle.)
6. Release the master power door lock switch to exit the programming mode.

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2016. Each transmitter uses two batteries.

PROGRAMMING TRANSMITTER

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

• Entering the programming mode cancels all learned transmitter codes, so none of the previously programmed transmitters will work. You must reprogram all the transmitters once you're in the programming mode. See Fig 10 .
• To keep the system from exiting the programming mode, complete each step within 5 seconds of the previous step, and program the transmitters within 10 seconds of each other.
  1. Turn the ignition switch on (II).
  2. Press the "LOCK" or "UNLOCK" button on one of the transmitters. (A non-programmed transmitter can be used for this step.)
  3. Turn ignition switch OFF (0).
  4. Repeat steps 1, 2, and 3 two more times with the transmitter used in step 2.
  5. Turn the ignition switch ON (II).
  6. Press the "LOCK" or "UNLOCK" button on the same transmitter. Check that the power door locks cycle to confirm that you're in the programming mode.
  7. Press the "LOCK" or "UNLOCK" button on each transmitter. (You can program up to four transmitters per vehicle.) Check that the power door locks cycle after you push each transmitter button, confirming that the system has accepted the transmitter's code.

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. One battery per transmitter is needed.

PROGRAMMING TRANSMITTER

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR2025. Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

1. Locate the security system control unit mounted under the driver's seat.
2. Rub your finger over the label on the top of the control unit until you find the depression. Once you find it, push your finger through the label to expose the hole underneath. Inside the hole is a square, yellow button; this is the programming button. See Fig 17 .
3. Turn the ignition switch on, then turn it off.
4. Press and hold the programming button. Check that the security siren emits four separate chirps followed by a five-chirp burst to confirm that you're in the programming mode. The siren then emits prompting chirps at three-second intervals.
5. Release the programming button.
6. After a prompting chirp, press the "LOCK" button on the transmitter. Check that the siren emits a confirmation chirp to let you know that the transmitter's code was accepted by the control unit. If you wait more than 30 seconds after the prompting chirp before programming a transmitter or between programming transmitters, the siren emits three chirps, and the system exits the programming mode.
7. To program additional transmitters, wait for another prompting chirp, then press the LOCK" button. (You can program up to four transmitters per vehicle.)
8. To exit the programming mode, turn the ignition switch on, then turn it off.
9. Push all the function buttons on each transmitter to make sure they work correctly.

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is 23-144. (Radio Shack), A-23 (Eveready), or MS-21/MN-21 (Duracell). Each transmitter uses one battery.

PROGRAMMING TRANSMITTER

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CR202. One battery per transmitter is needed.

PROGRAMMING TRANSMITTER

To program transmitters, use one of these two procedures: See Fig 20 .

• The first procedure cancels all learned transmitter codes and adds one new transmitter. None of the previously programmed transmitters will work. Use this programming procedure only if all transmitters were lost or stolen, or if a new control unit has been installed.
• The second procedure adds additional transmitters without canceling any of the previously learned ones. The system will accept up to four transmitters.

Procedure One (cancels all codes; adds one new transmitter)

1. Open the driver's door.
2. Turn the ignition key to the ACC (I) position and then to the OFF (0) position three times. (This step must be completed within 10 seconds, or the system will exit the programming mode.)
3. Within 10 seconds, close and open the door two times.
4. Turn the ignition key to the ACC (I) position and then to the OFF (0) position five times. Close and open the door. (Complete this procedure within 10 seconds.) Check that the power door locks cycle once to confirm you're in the programming mode.
5. Within 20 seconds, press the "LOCK" button of the transmitter you're programming. Make sure the door locks cycle once.
6. Within 20 seconds, press the "UNLOCK" button of the transmitter. Make sure the door locks cycle once to confirm that the system has accepted the transmitter's code.

Procedure Two (adds transmitters)

1. Open the driver's door.
2. Turn the ignition key to the ACC (I) position and then to the OFF (0) position three times. (This step must be completed within 10 seconds, or the system will exit the programming mode.)
3. Within 10 seconds, close and open the door two times.
4. Turn the ignition key to the ACC (I) position and then to the OFF (0) position three times. Close and open the door. (Complete this procedure within 10 seconds.) Check that the power door locks cycle twice to confirm you're in the programming mode.
5. Within 20 seconds, press the "LOCK" button of the transmitter you're programming. Make sure the door locks cycle once.
6. Within 20 seconds, press the "UNLOCK" button of the transmitter. Make sure the door locks cycle once to confirm that the system has accepted the transmitter's code.

TURNING AUDIBLE CHIRP ON/OFF

1. Open the driver's door, and insert the key in the driver's door lock.
2. Turn the key to the "LOCK" position, and then to the "UNLOCK" position; do this two more times. (Complete this procedure within 10 seconds.)
3. Within 10 seconds, close and open the door two times.
4. Within 10 seconds, turn the key to the lock position, and then to the unlock position three times. Close and open the door once. The power door locks will cycle once to confirm the chirp has been turned on/off.

ORDERING TRANSMITTER

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

BATTERIES FOR TRANSMITTER

The battery number is CF12025. One battery per transmitter is needed.

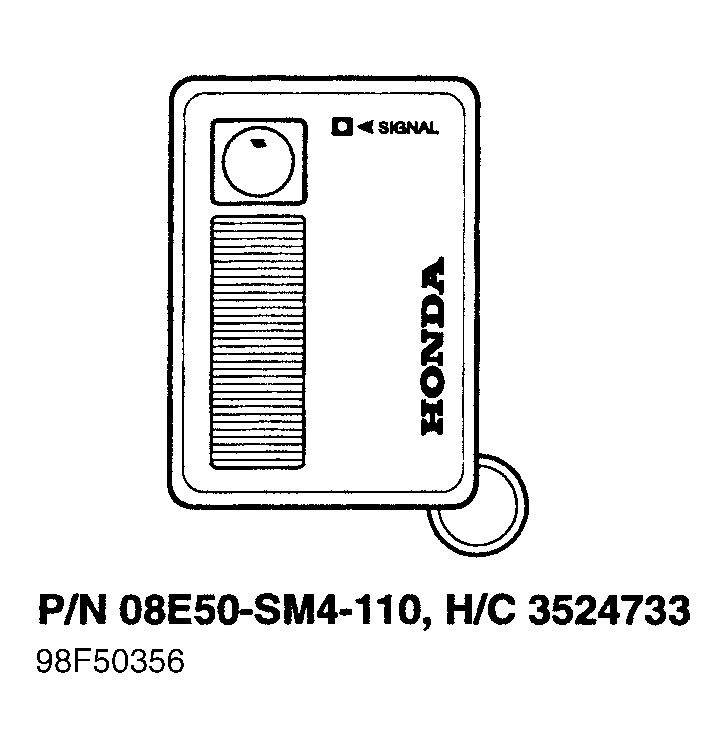

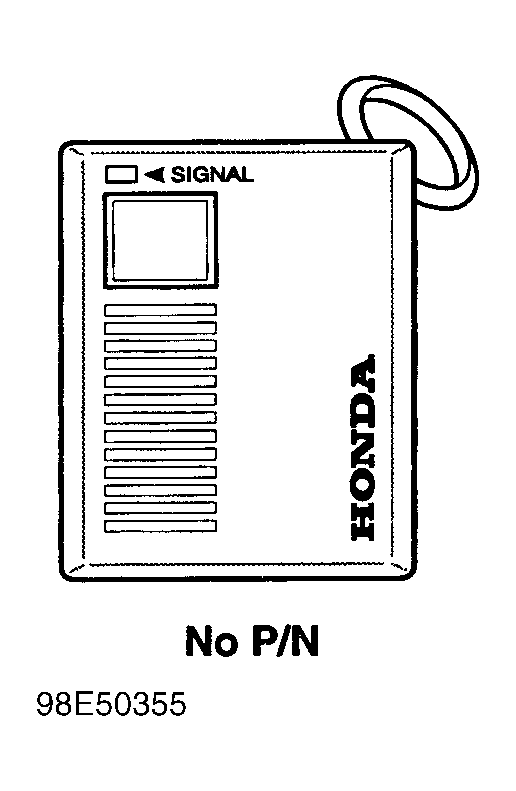

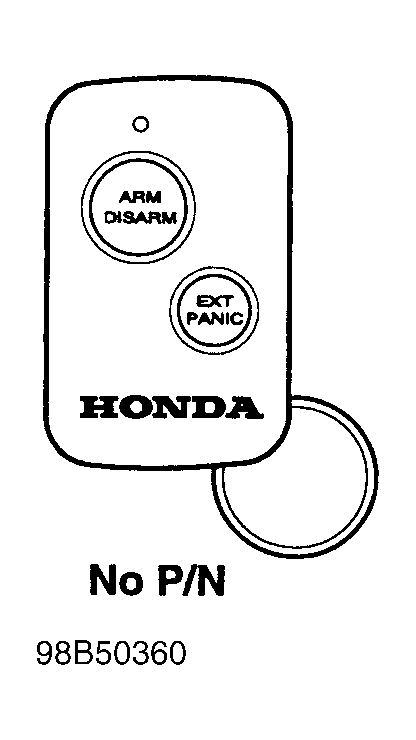

Fig 1: 1988-91 Prelude Transmitter

Fig 2: 1990-93 Accord Transmitter

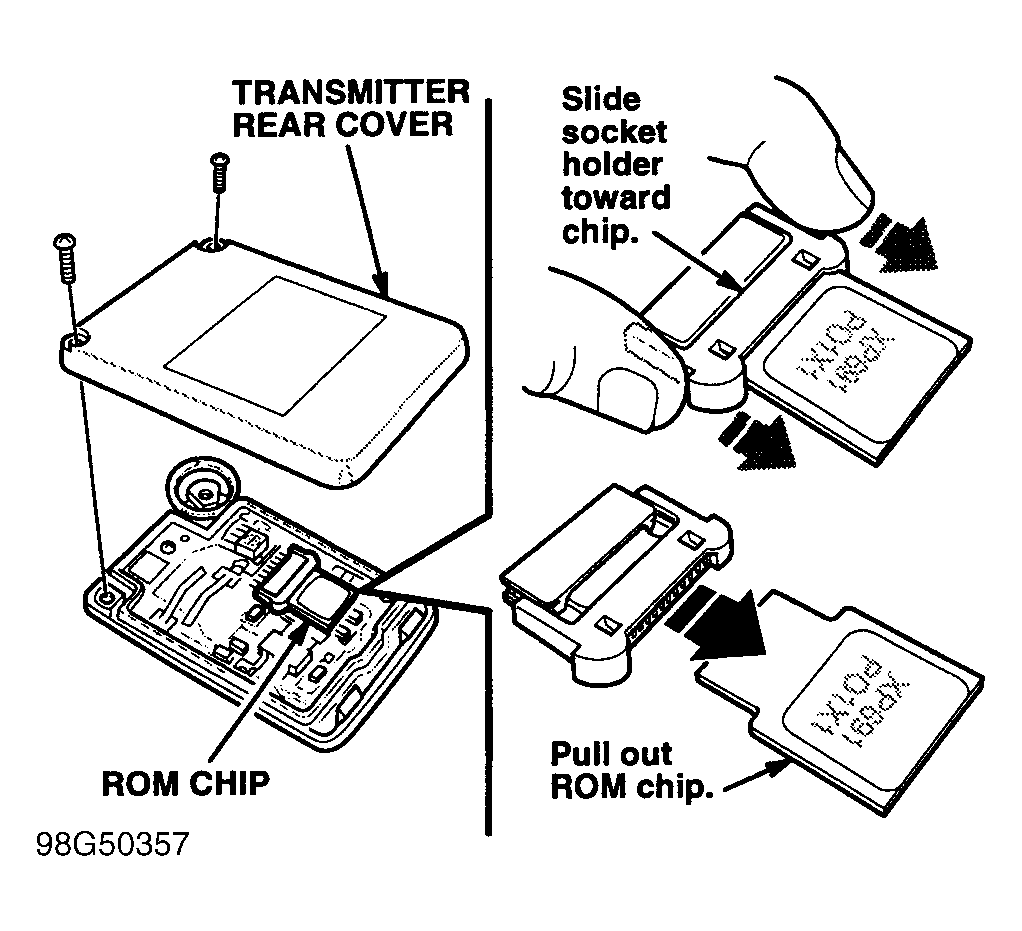

Fig 3: Transmitter Rear Cover & ROM Chip

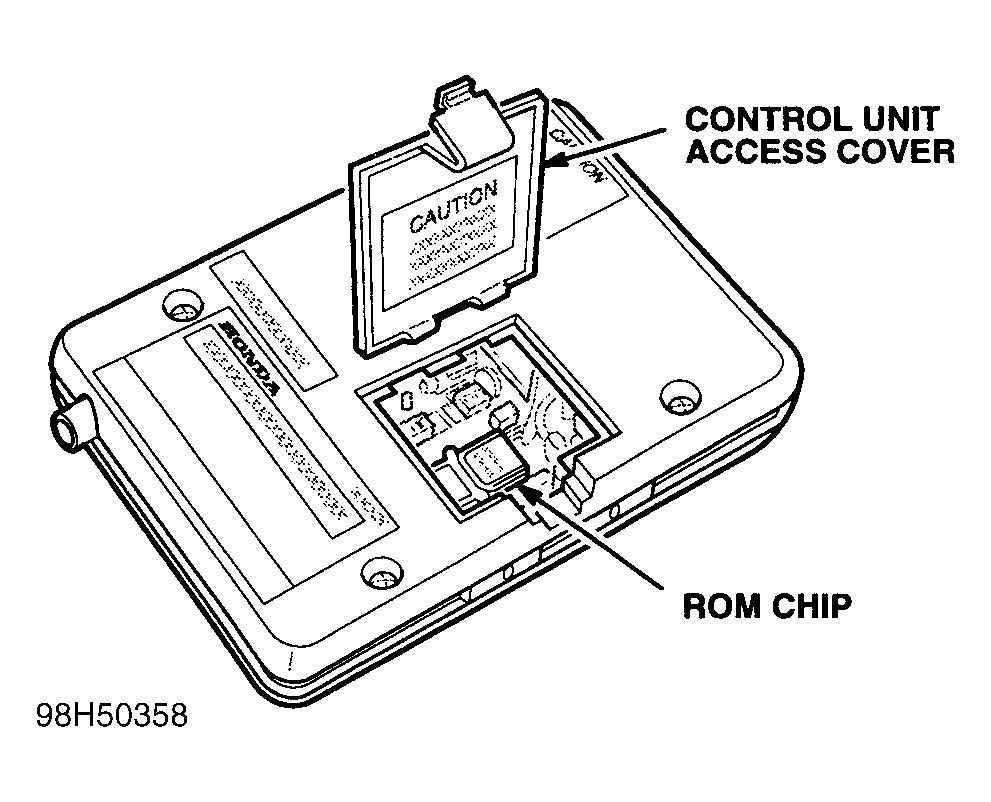

Fig 4: Control Unit Access Cover & ROM Chip

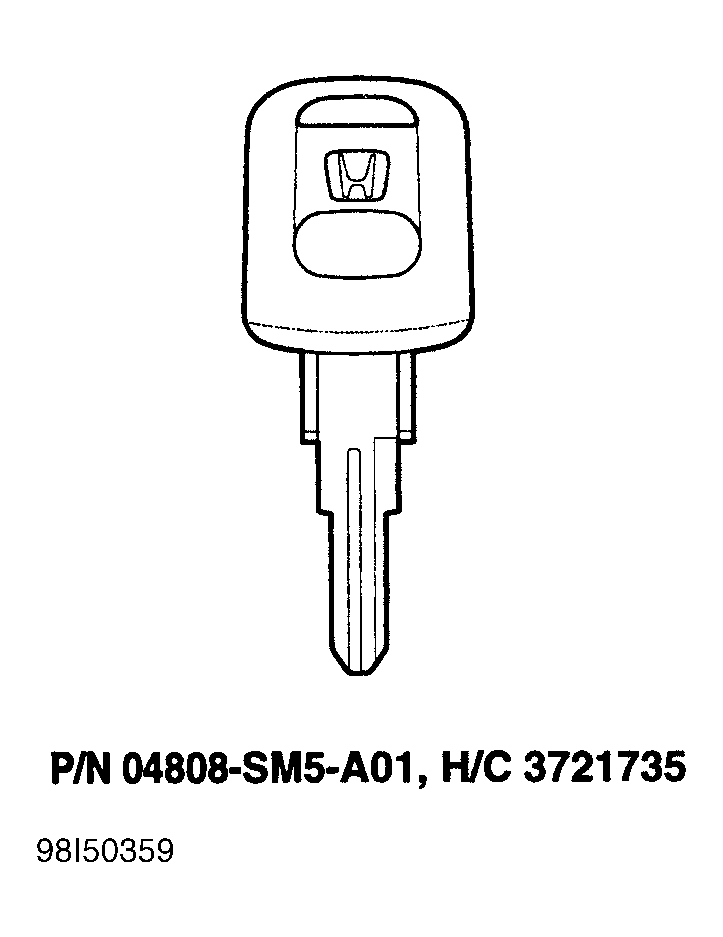

Fig 5: 1991-93 Accord Wagon EX Transmitter

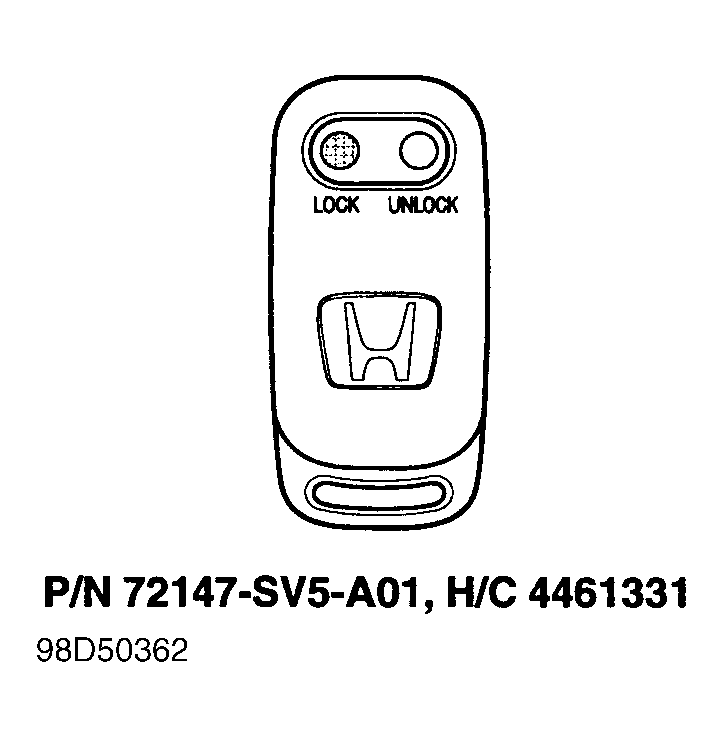

Fig 6: 1991-93 Accord Wagon LX Transmitter

Fig 7: 1994-95 Accord, Civic, del Sol & Prelude Transmitter

Fig 8: 1994-97 Accord Wagon EX & 1995-98 Odyssey EX Transmitter

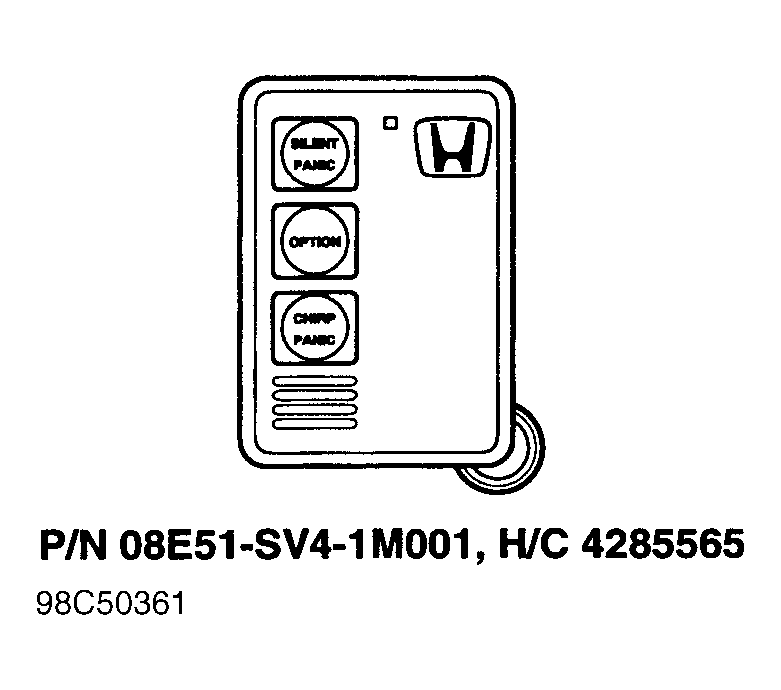

Fig 9: 1996-98 Accord Prelude & Odyssey Transmitter

Fig 10: 1997 Accord SE Transmitter

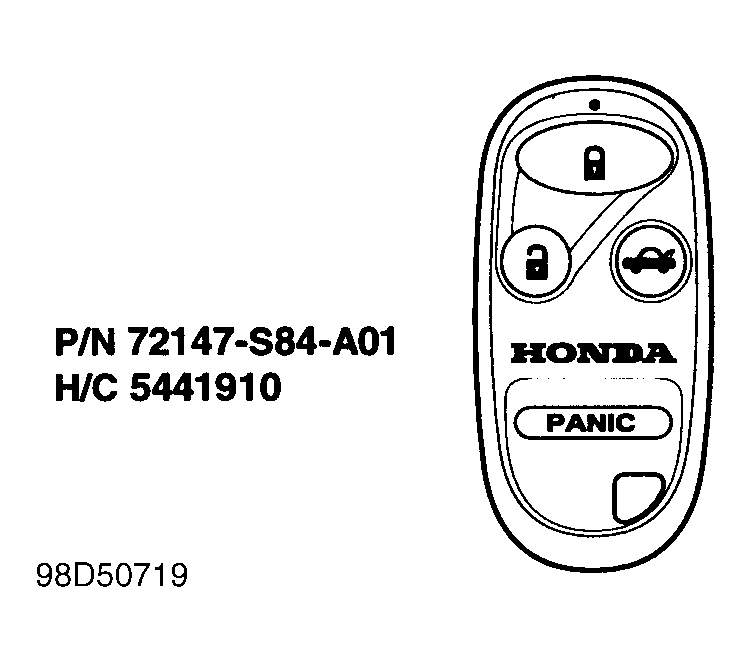

Fig 11: 1998 Accord EX Transmitter

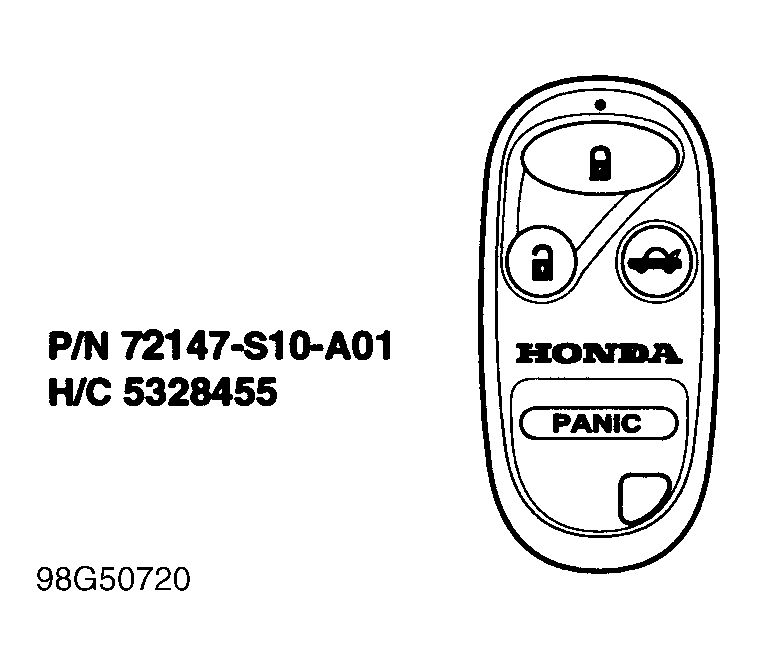

Fig 12: 1998 CR-V EX Transmitter

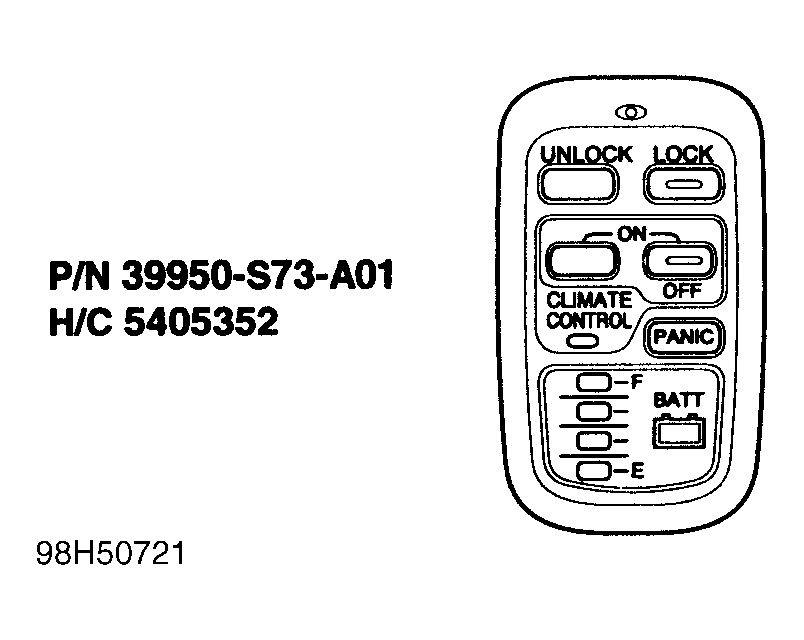

Fig 13: 1998 EV Plus Transmitter

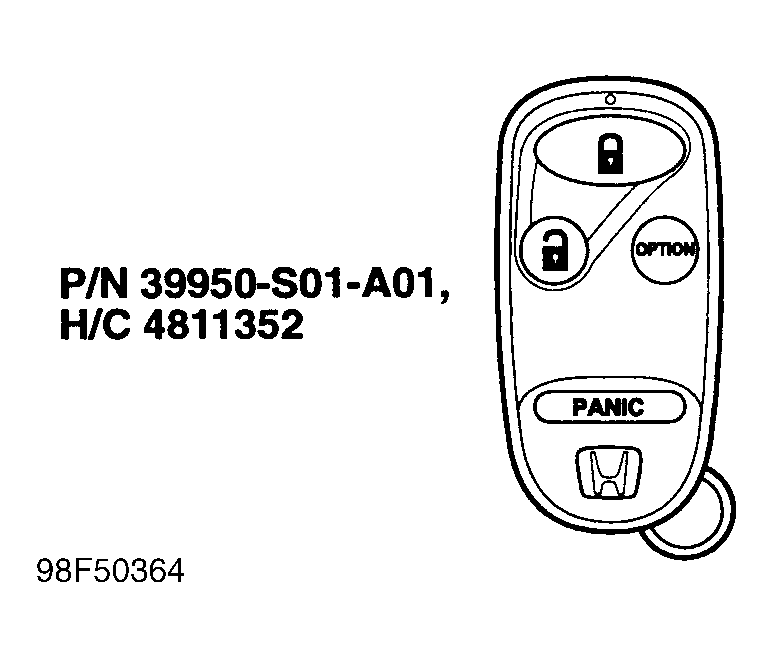

Fig 14: 1996-98 Civic EX Transmitter

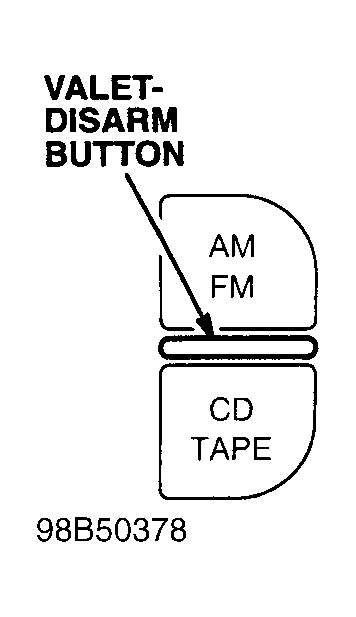

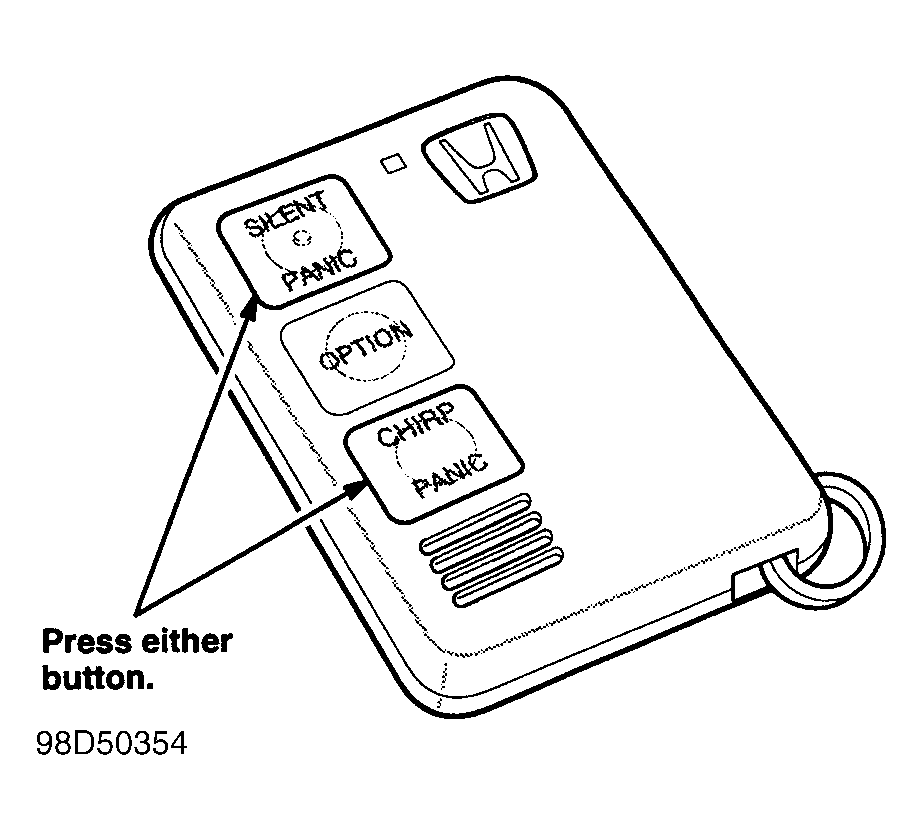

Fig 15: Valet-Disarm Button

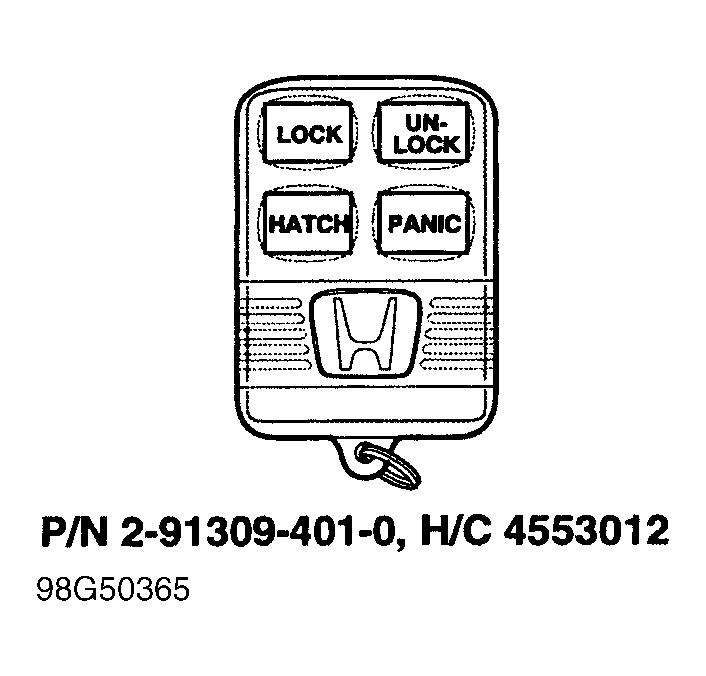

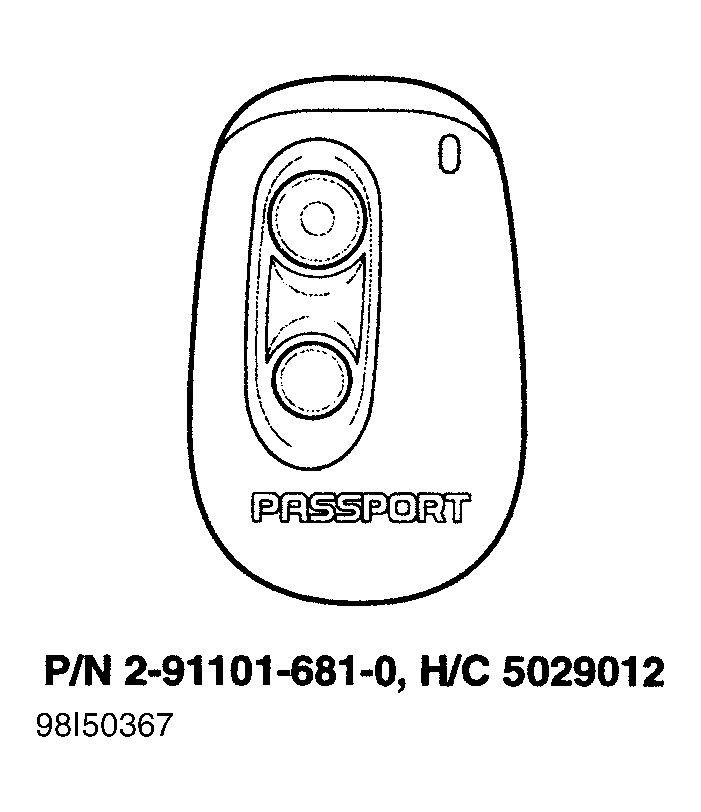

Fig 16: 1994-95 Passport Transmitter

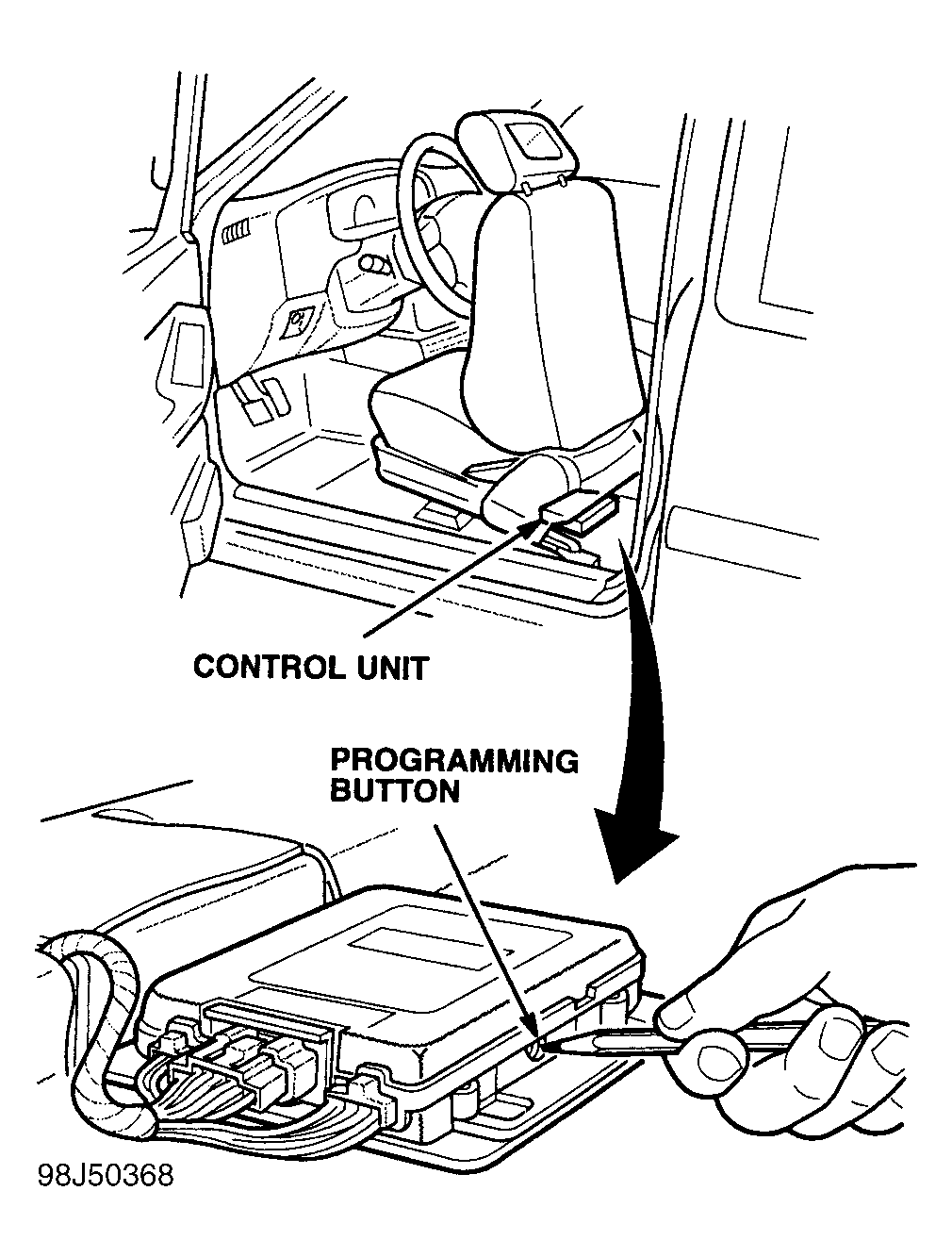

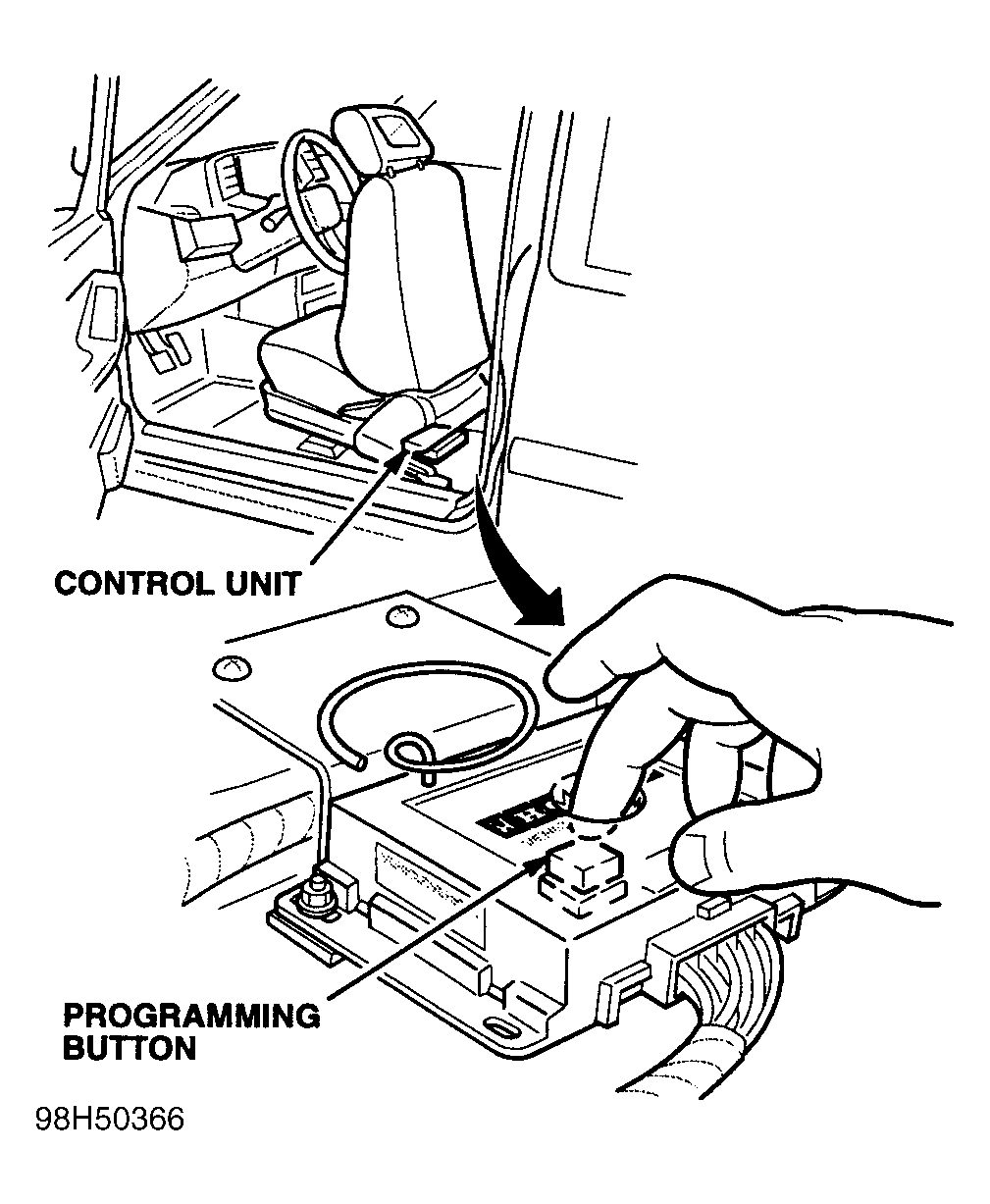

Fig 17: Control Unit & Programming Button

Fig 18: 1995.5-97 Passport Transmitter

Fig 19: Programming Button & Control Unit

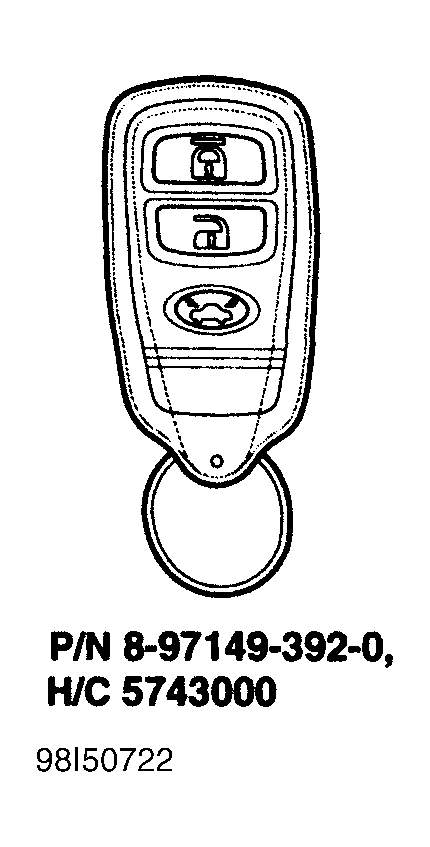

Fig 20: 1998 Passport Transmitter

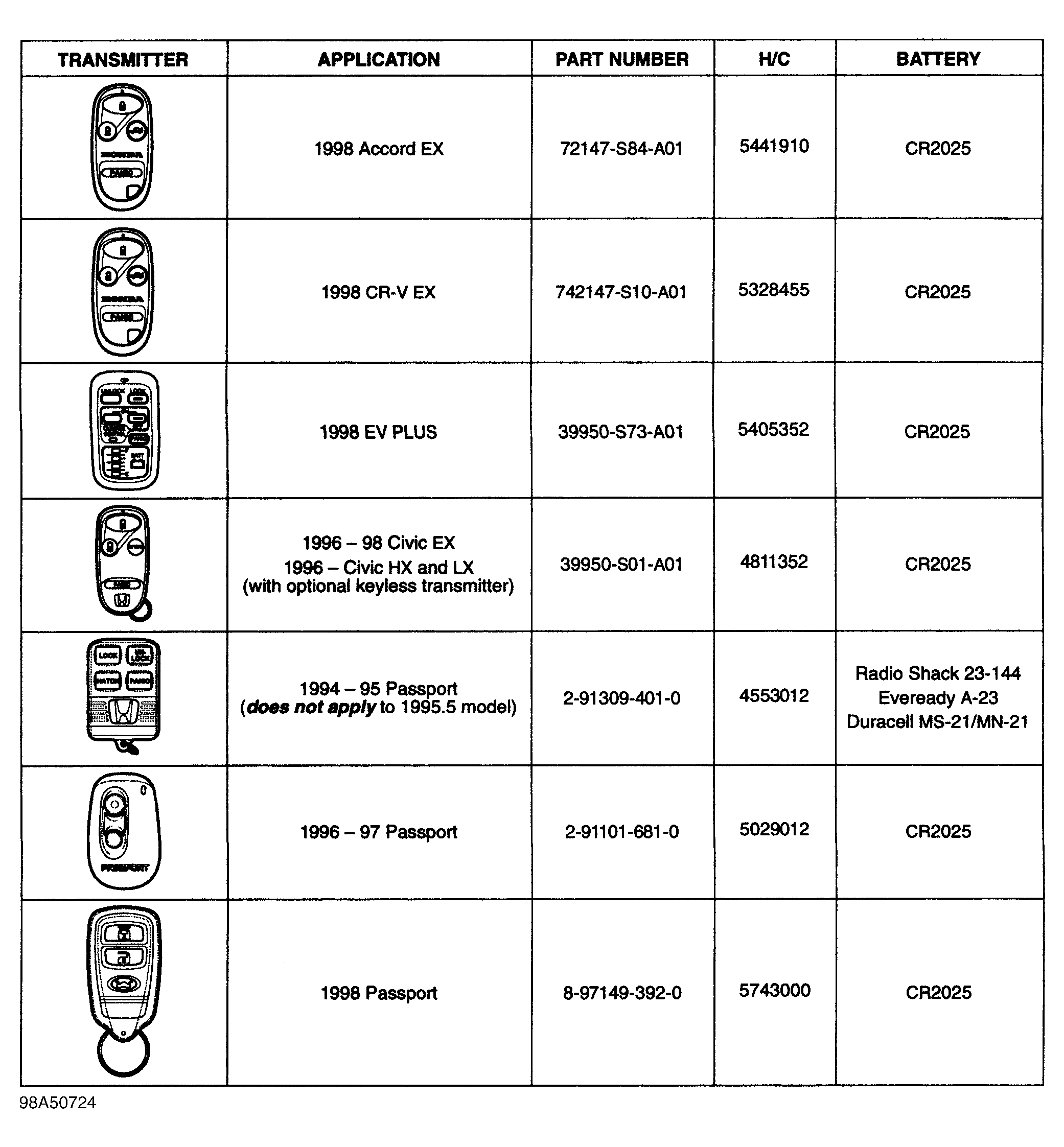

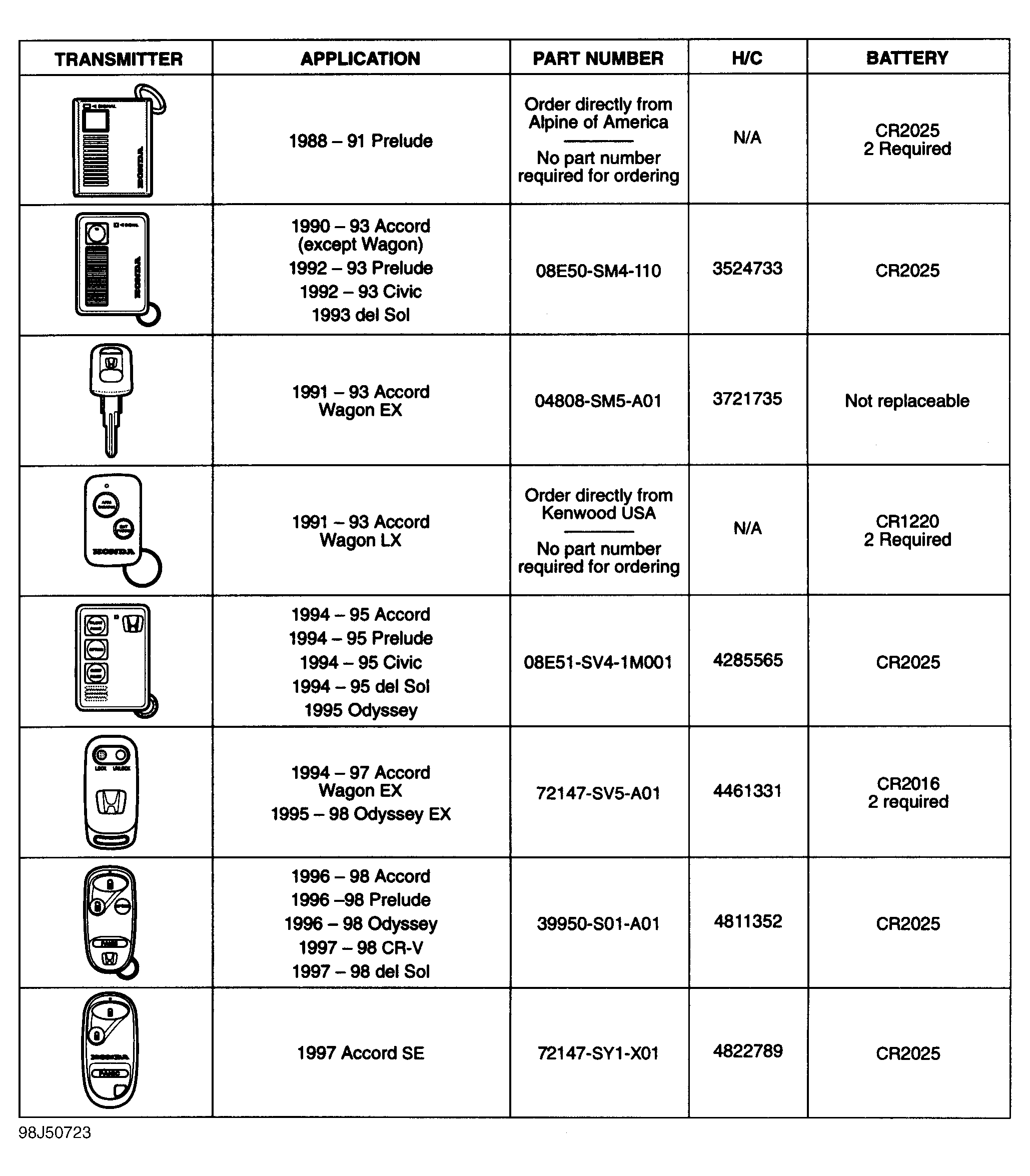

Fig 21: Transmitter Quick Reference Guide
