Blower Motor Relay

WARNING: This page is about a different car, the 1997 Honda Civic del Sol and 1997 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

Remove relay from underhood fuse/relay block. Continuity should not exist between terminals No. 1 and 2. See Fig 1. Connect 12-volt battery across terminals No. 3 and 4. Continuity should exist between terminals No. 1 and 2.

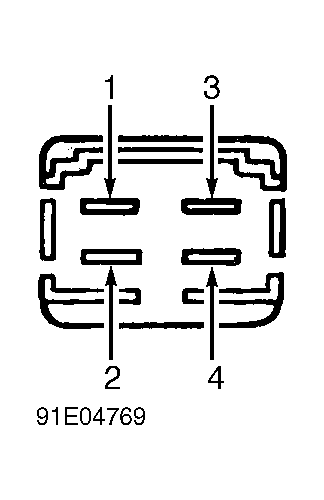

Fig 1: Identifying Blower Motor Relay Terminals
G91E04769Courtesy of AMERICAN HONDA MOTOR CO., INC.
