Section 4 (Heater System): Description
WARNING: This page is about a different car, the 1997 Honda Civic del Sol and 1997 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid injury from accidental air bag deployment, read and follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT SYSTEM article in the ACCESSORIES/SAFETY EQUIPMENT section.
CAUTION:
When battery is disconnected, radio will go into anti-theft protection mode. Obtain radio anti-theft protection code from owner prior to servicing vehicle.

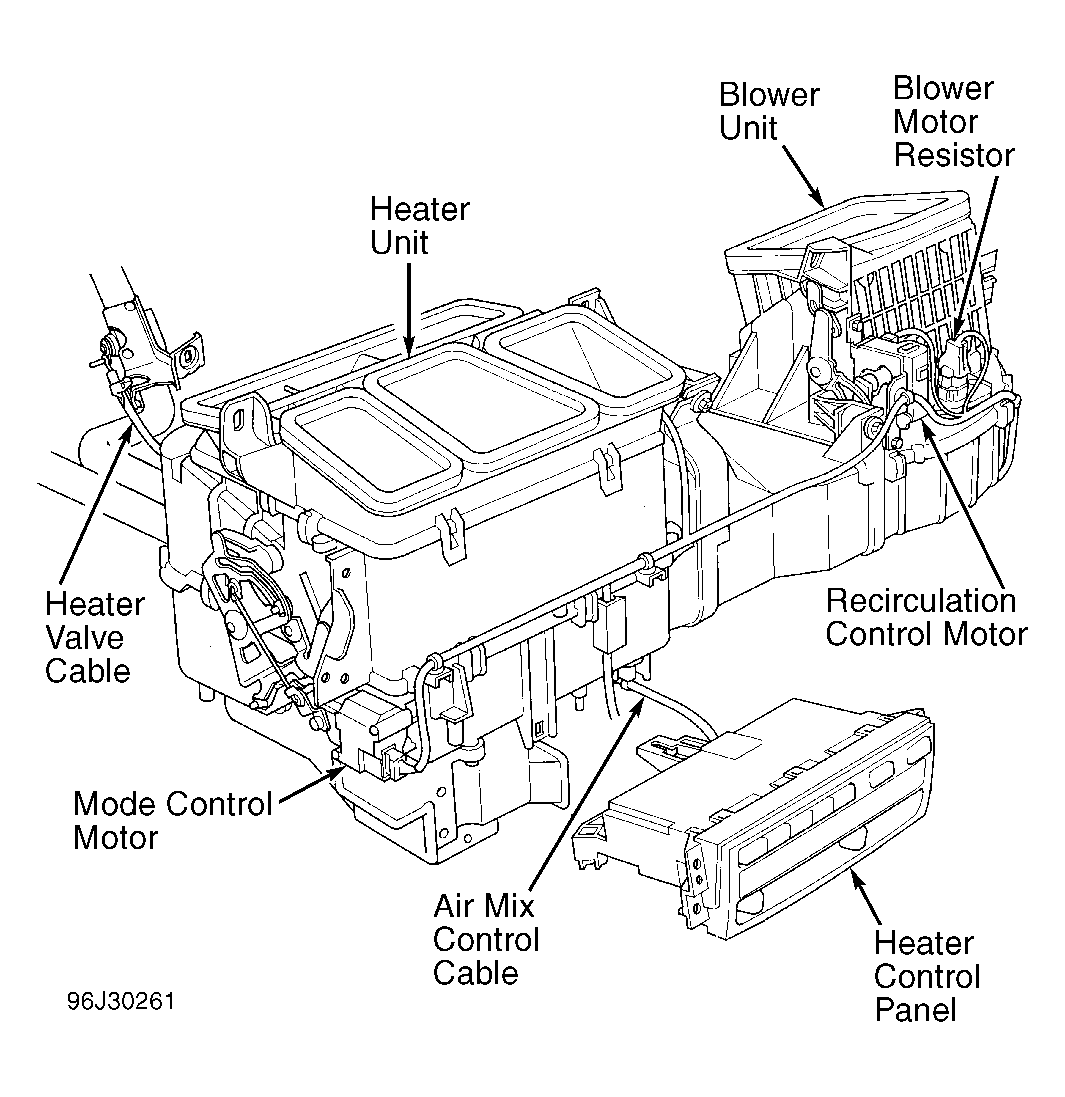

The heater system consists of a heater control panel, blower unit, heater unit, and heater (coolant) valve. See Fig 1. The blower unit contains the blower motor and the fresh/recirculated air door. The heater unit contains the heater core, the air mix door and the mode control door.
