A/C-Heater Control Unit
WARNING: This page is about a different car, the 2001 Honda CR-V and 2000 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

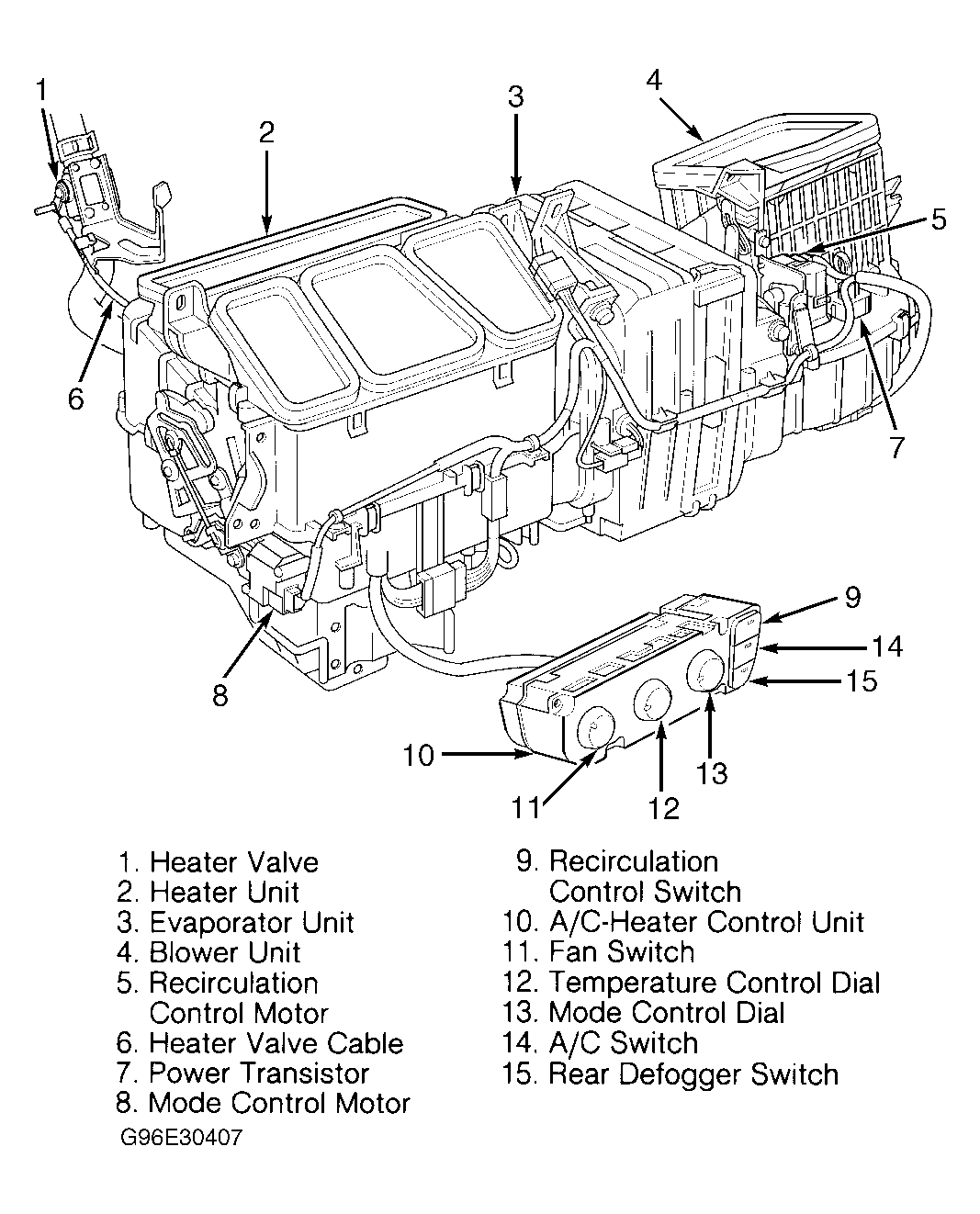

The A/C-heater control unit consists of 3 control dials and 3 switches. See Figure . Dials are used to control blower motor speed, passenger compartment temperature and desired operating mode. Switches may be used to select A/C operation, fresh/recirculated air, or rear window defogger function.
