Engine & Transaxle Codes Location

Fig 1: Locating Engine & Transaxle Codes (Accord 4-Cyl.)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Engine & Transaxle Codes (Accord V6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

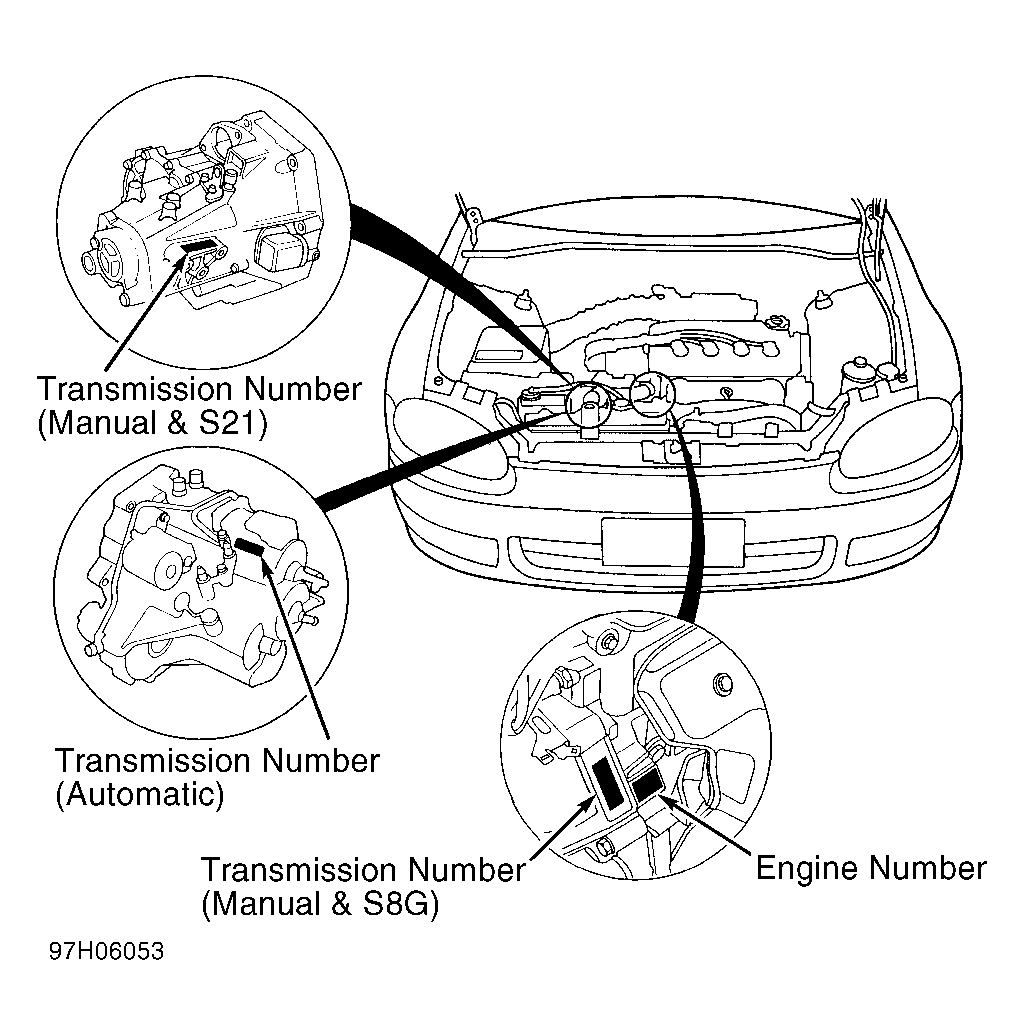

Fig 3: Locating Engine & Transaxle Codes (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Locating Engine & Transaxle Codes (Civic Del Sol)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

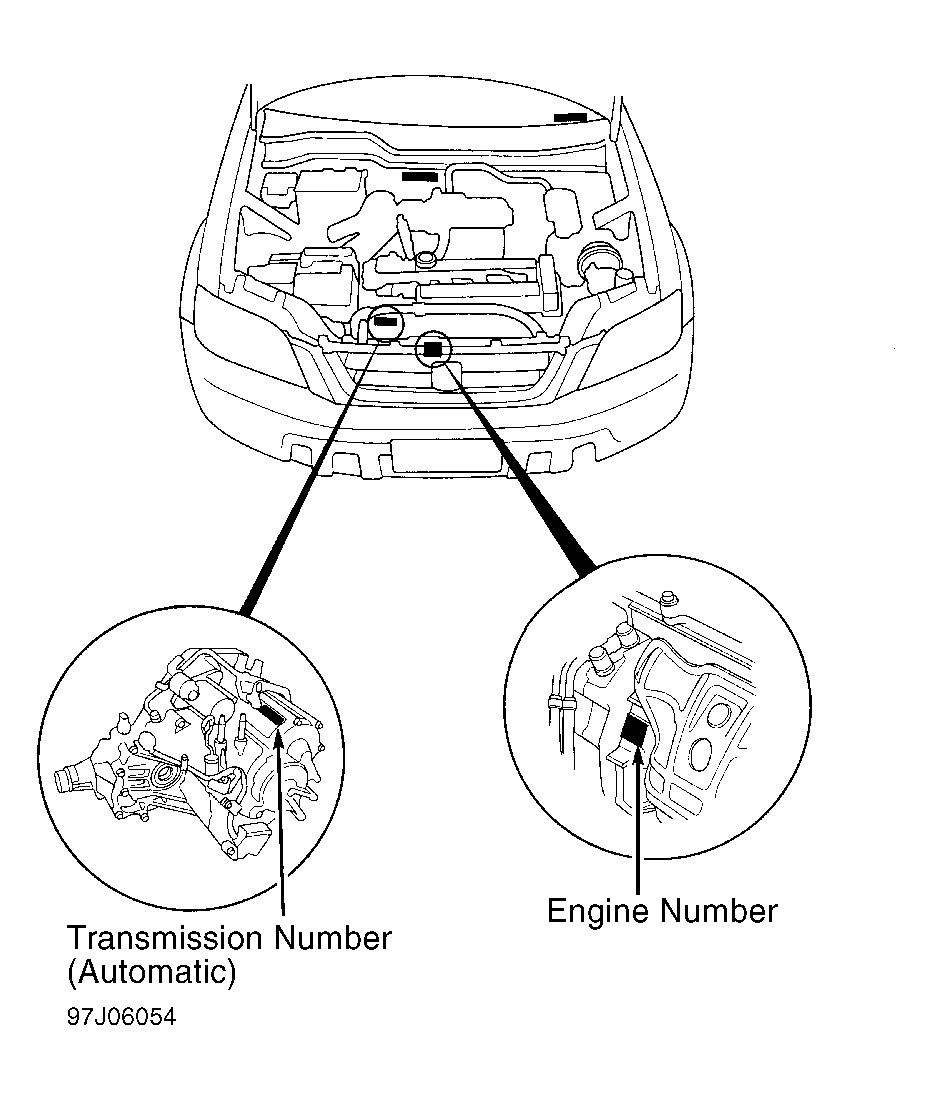

Fig 5: Locating Engine & Transaxle Codes (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating Engine & Transaxle Codes (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Locating Engine Code (Passport)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Locating Engine Code (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
