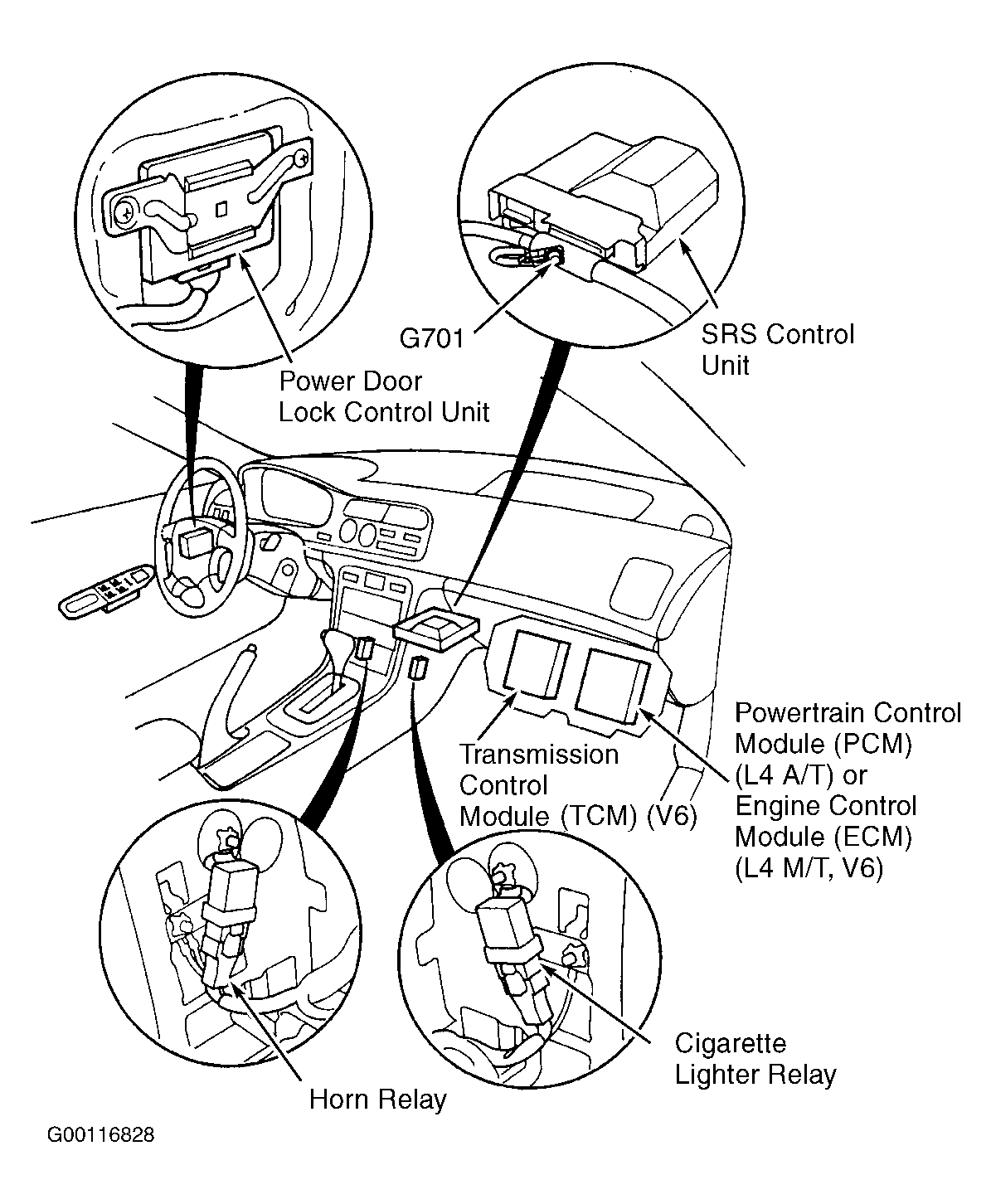

Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

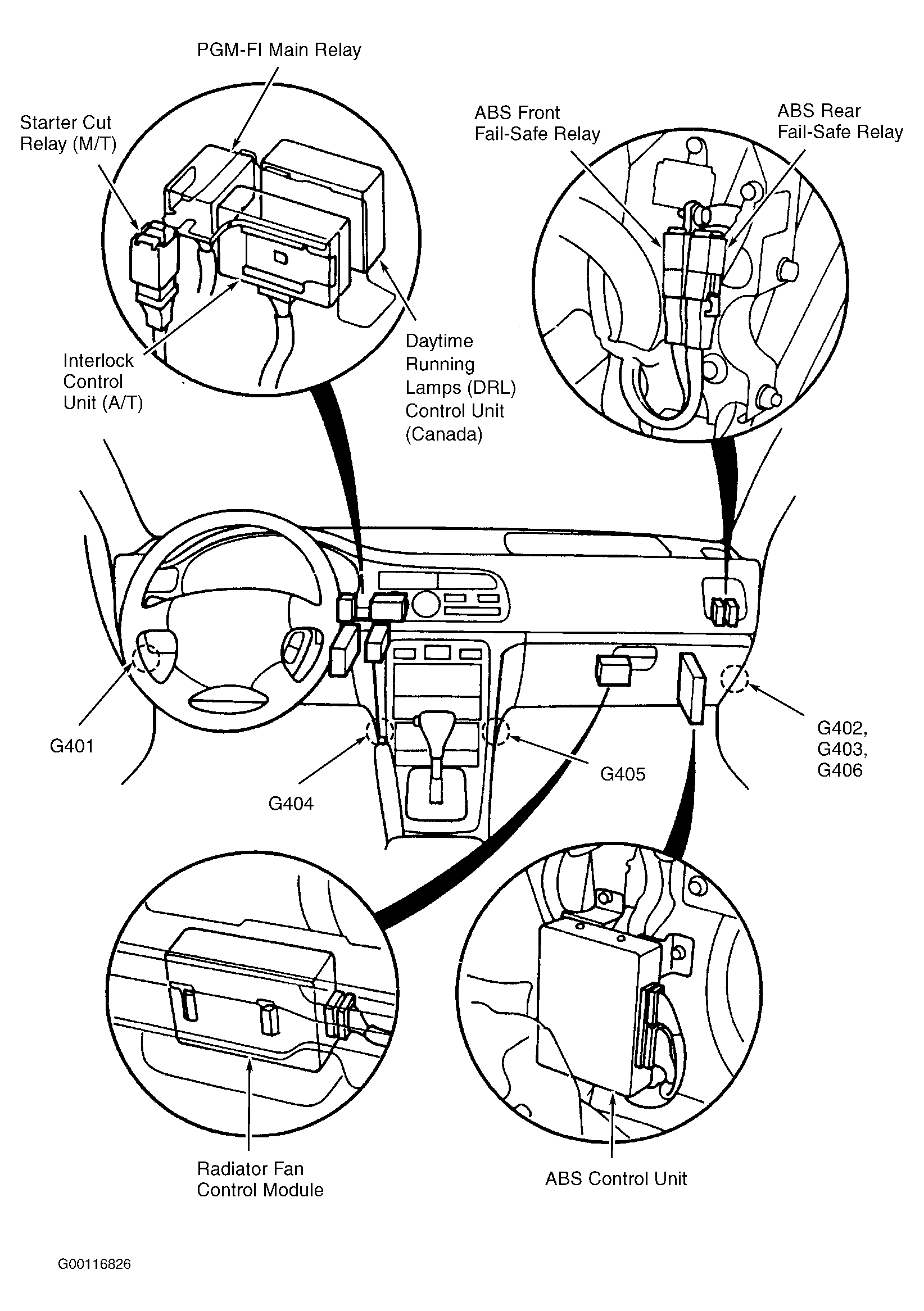

Fig 1: Front Of Dash

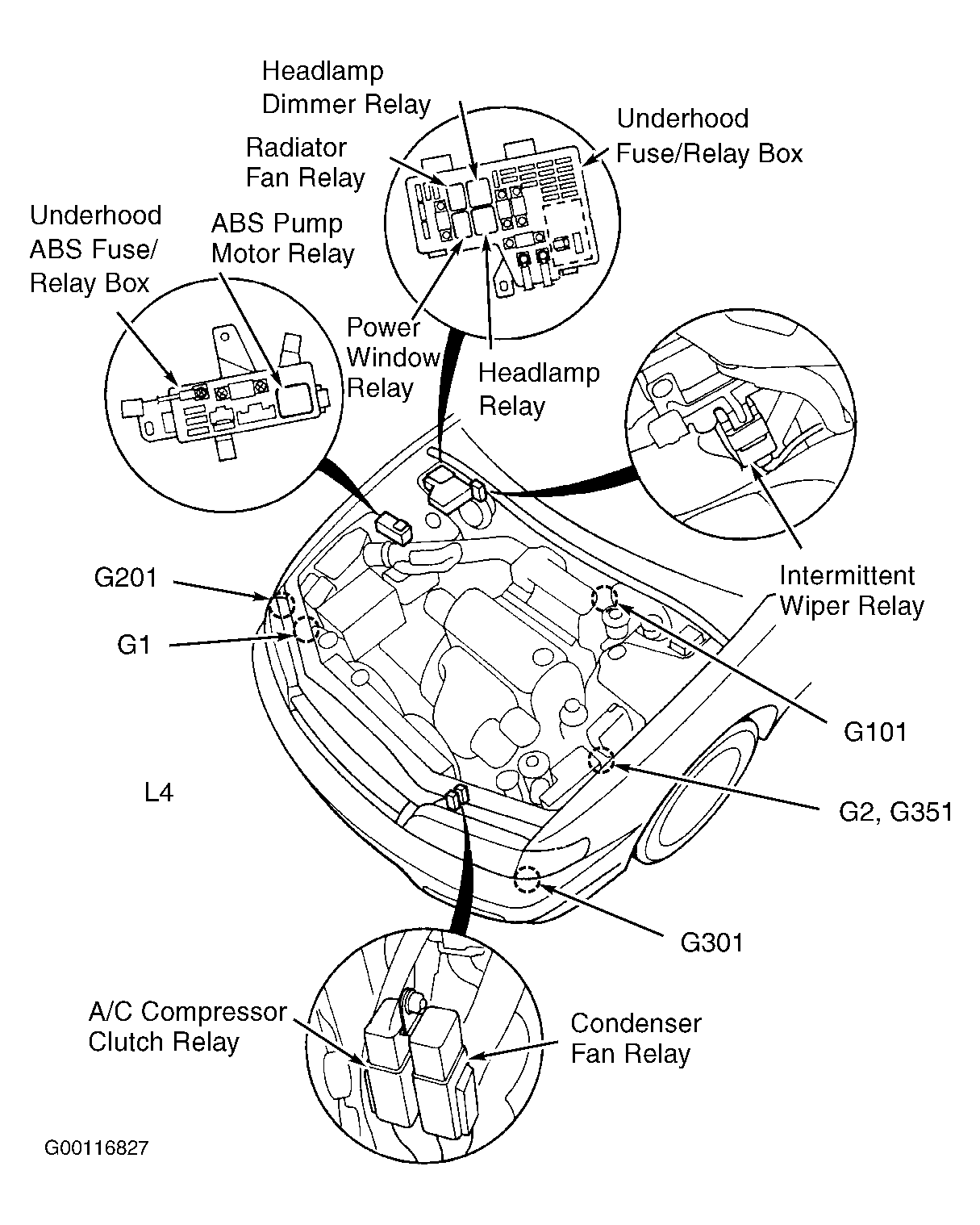

Fig 2: Engine Compartment (2.2L)

Fig 3: Right Side Of Dash

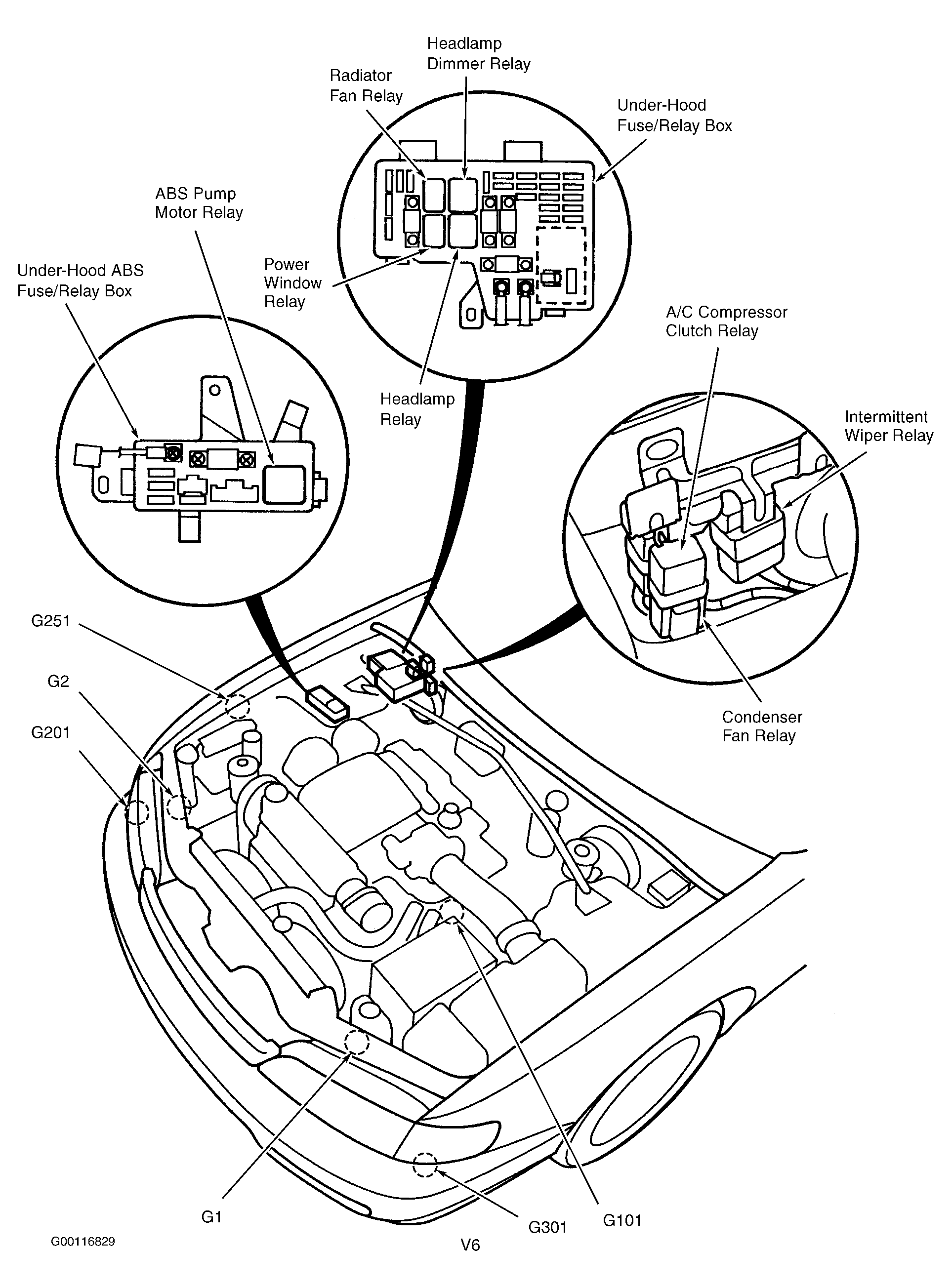

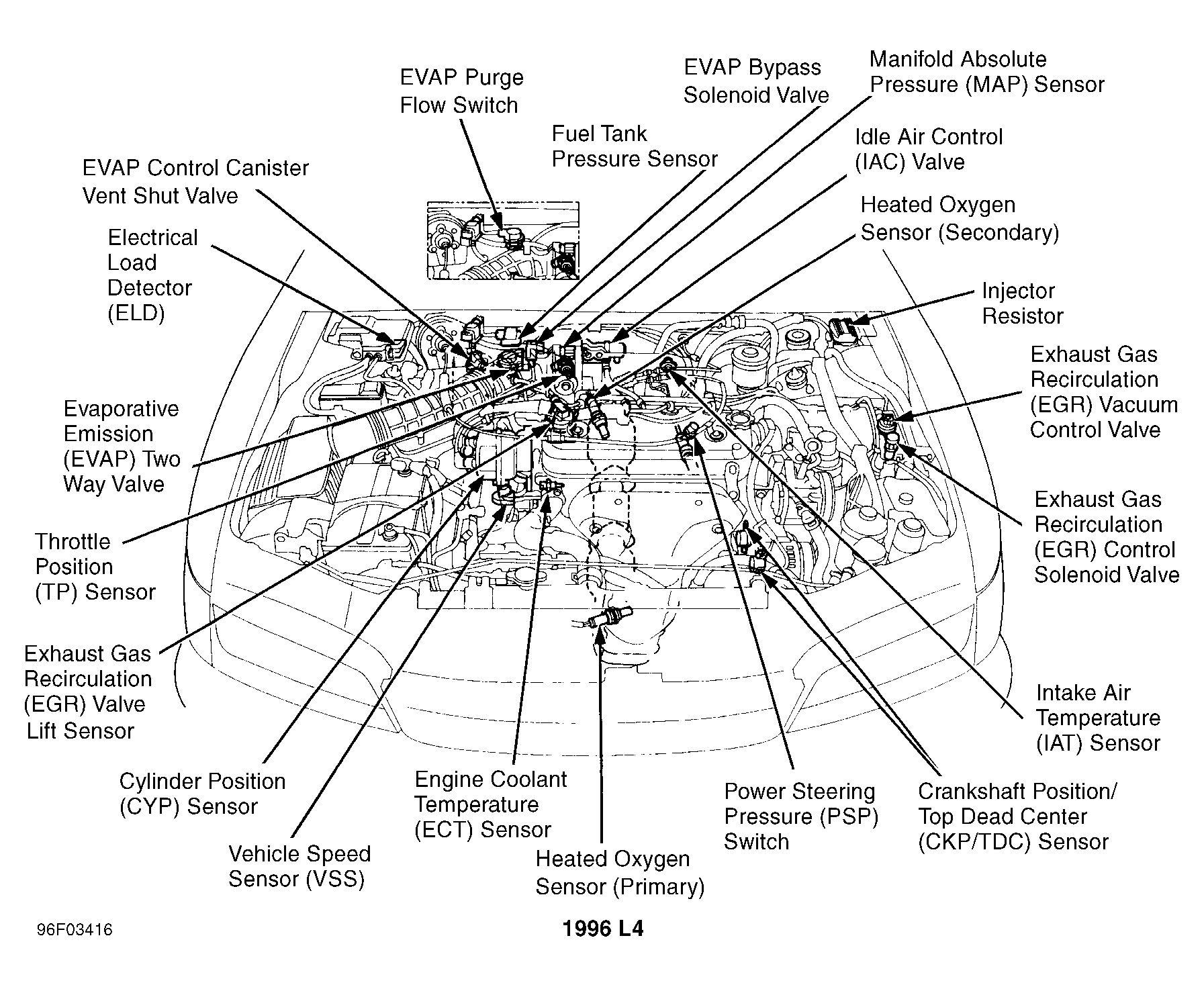

Fig 4: Engine Compartment (2.2L)

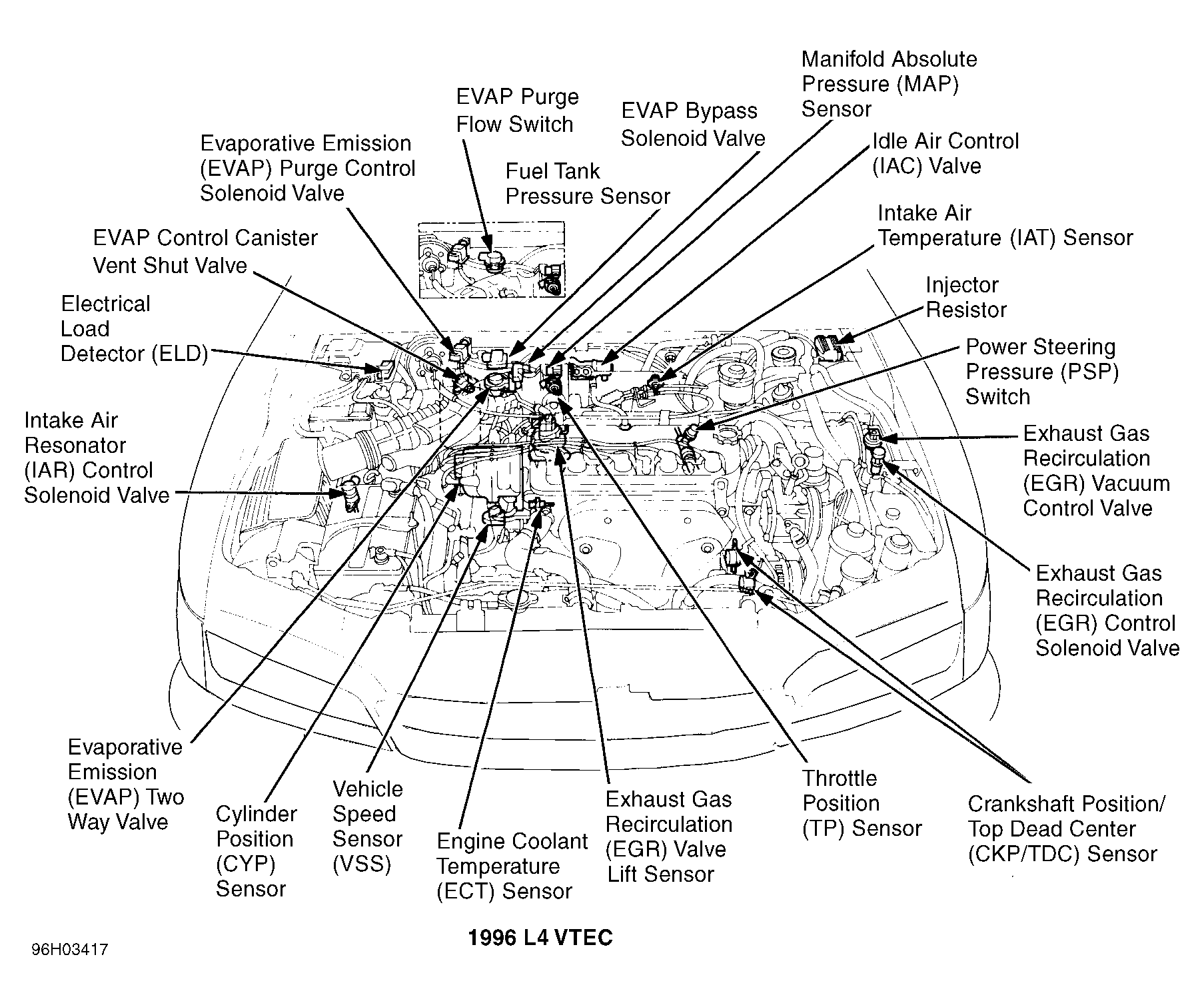

Fig 5: Engine Compartment (2.2L VTEC)

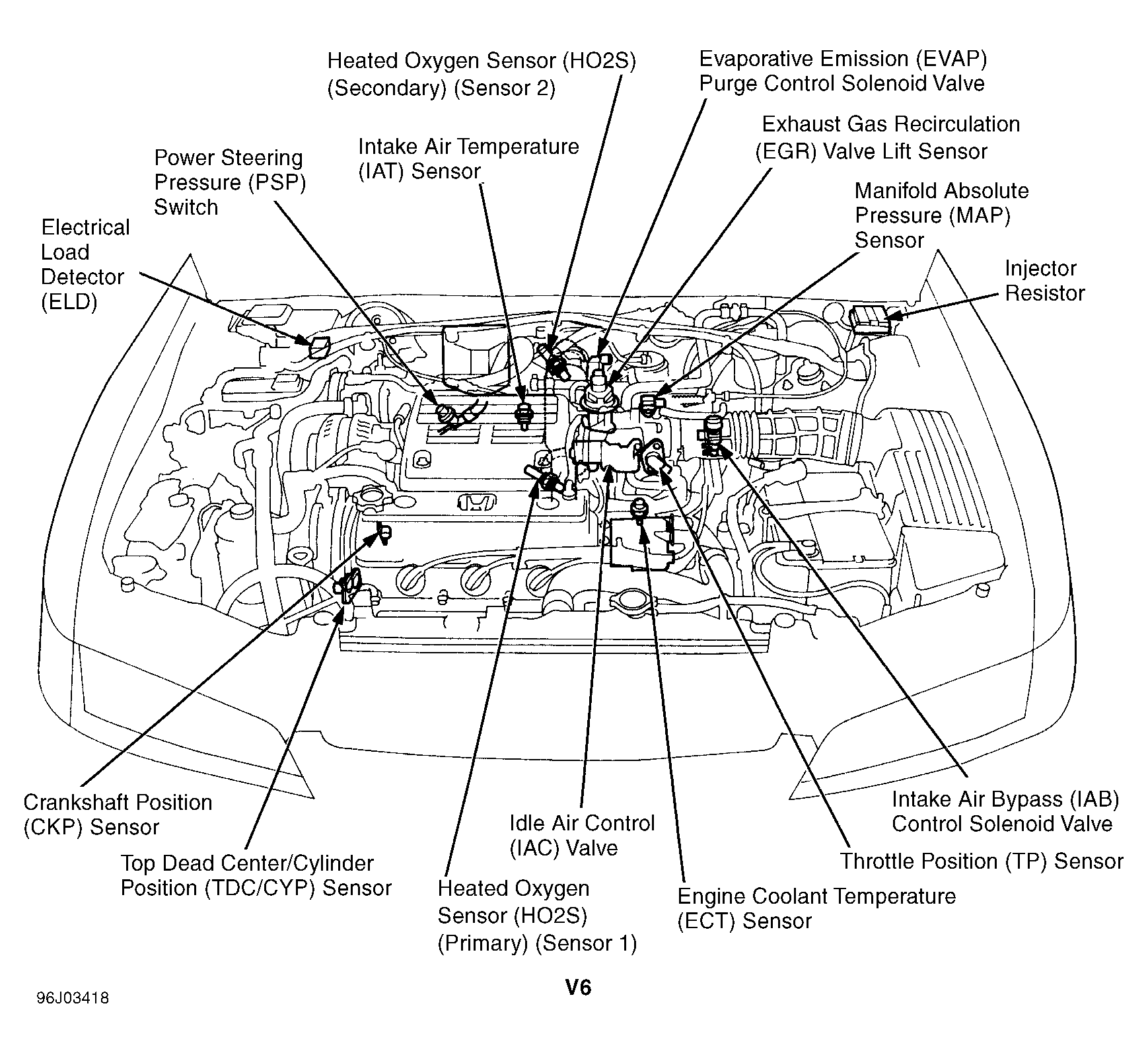

Fig 6: Engine Compartment (2.7L)

Fig 7: Engine Compartment (2.7L)
