Ignition Key Switch

WARNING: This page is about a different car, the 1996 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower cover and knee bolster, then disconnect the 8-P connector from the main wire harness. See Fig 1 .
  2. There should be continuity between the No. 5 and No. 8 terminals when the ignition switch is inserted into the ignition key cylinder. There should be no continuity when the ignition key is removed.

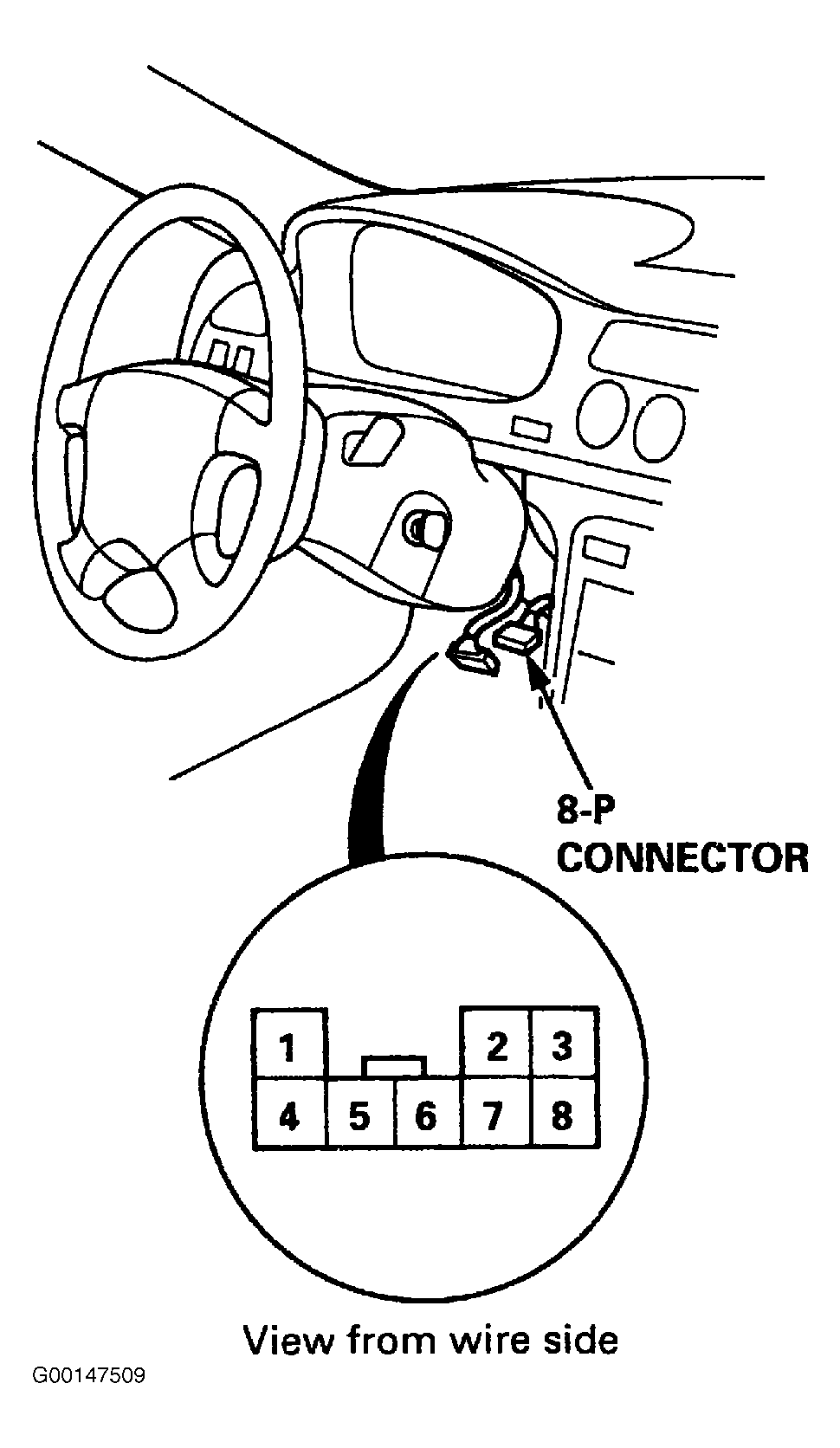

Fig 1: Locating & Identifying 8-P Connector
G00147509Courtesy of AMERICAN HONDA MOTOR CO., INC.
