WARNING: This page is about a different car, the 1996 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
For connector terminal identification see Figure
. For input test see Fig 1
.

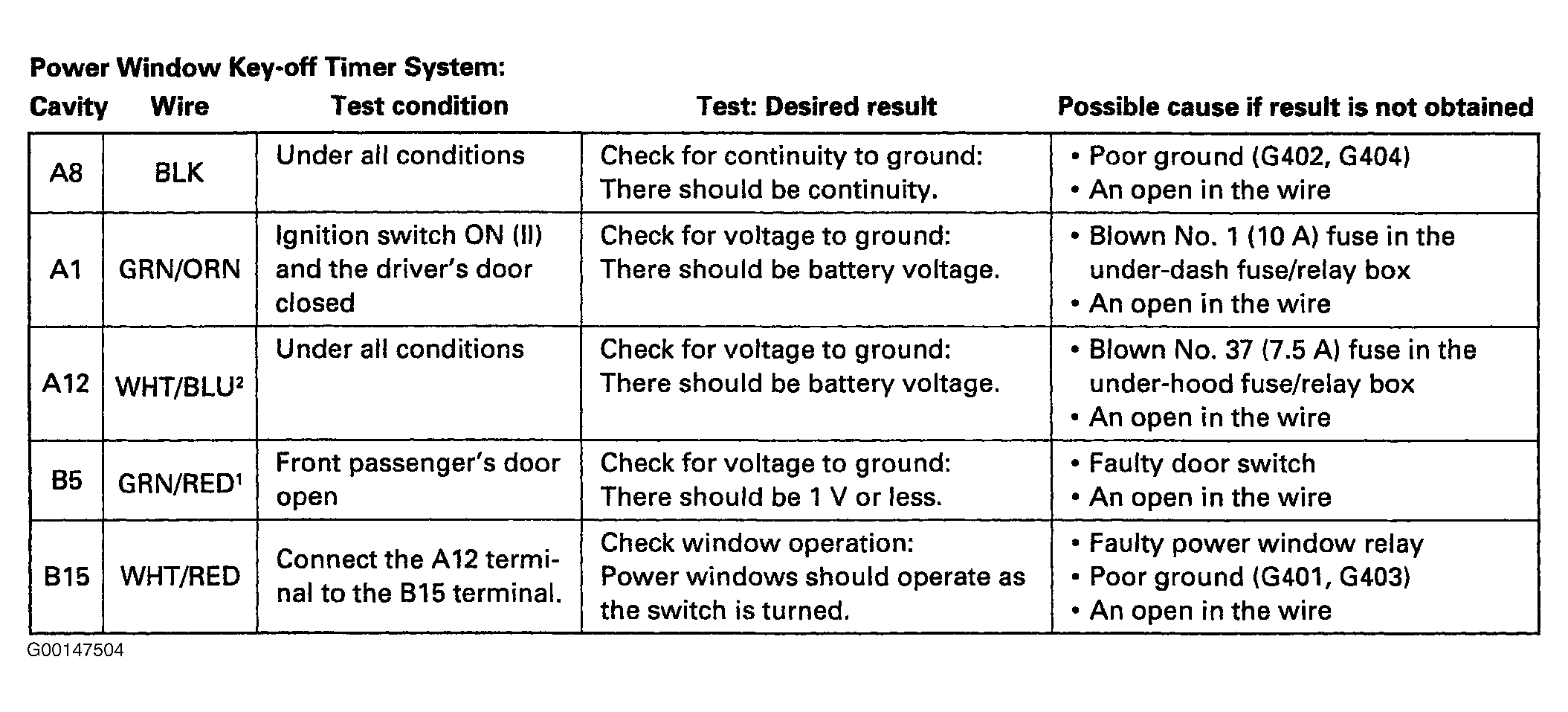

Fig 1: Power Window Key-Off Timer System Input Test
