Power Mirror Switch Test

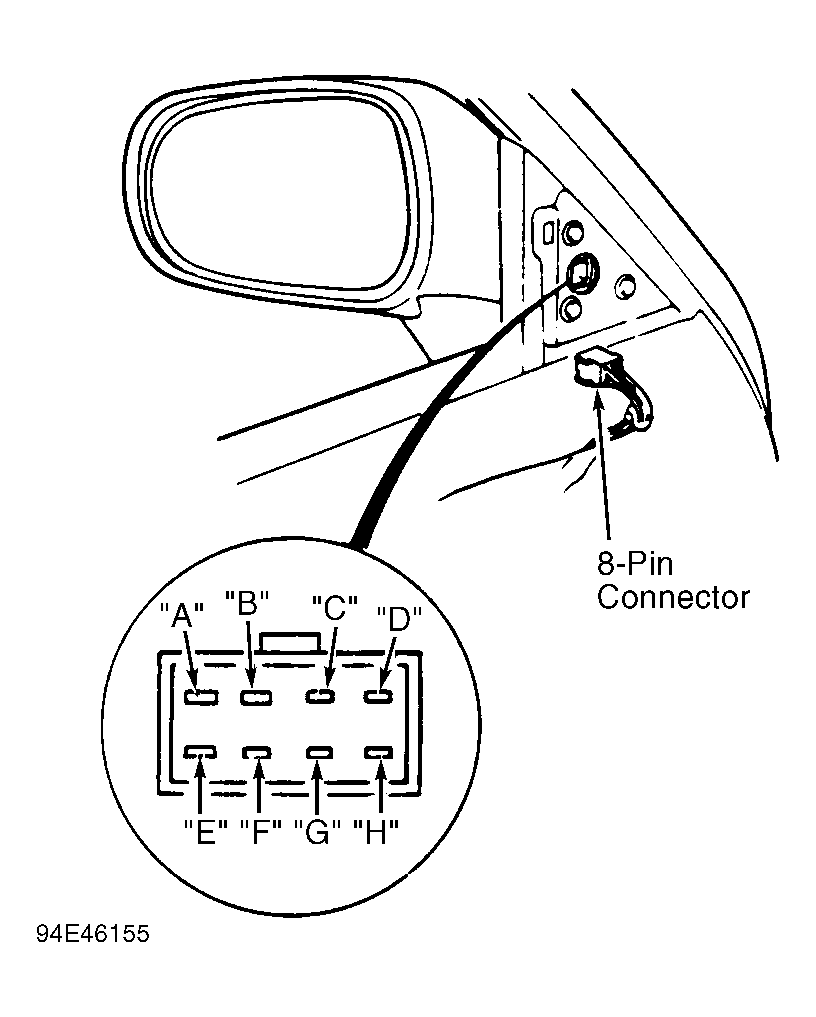

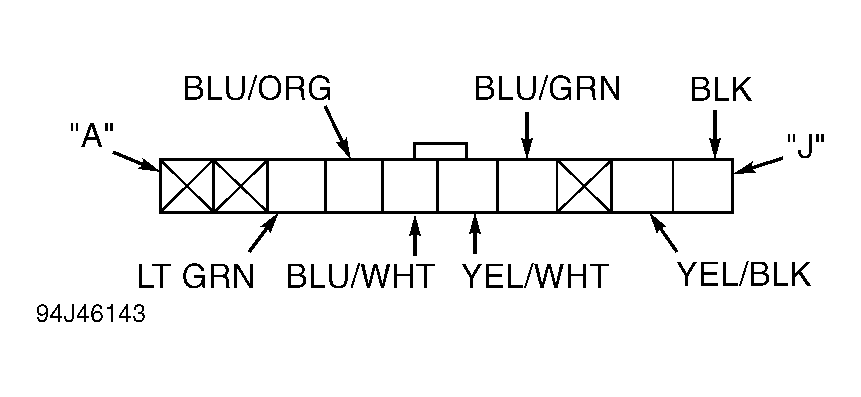

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check for continuity between appropriate mirror switch terminals. See appropriate POWER MIRROR SWITCH CONTINUITY TEST table. See Figure , Figure , Figure . If switch fails any test, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Application | Terminal | |
|---|---|---|
| Left Mirror | ||
| Off | D, E, G & J | |
| Up | E & I; D, G & J | |
| Down | E & J; D, G & I | |
| Left | D & J; E, G & I | |
| Right | D & I; E, G & J | |
| Right Mirror | ||
| Off | C, E, F & J | |
| Up | E & I; C, F & J | |
| Down | E & J; C, F & I | |
| Left | C & J; E, F & I | |
| Right | C & I; E, F & J | |
